Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems

    Buy cheap Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems from wholesalers

    Buy cheap Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems from wholesalers
    • Buy cheap Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems from wholesalers
    • Buy cheap Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems from wholesalers
    • Buy cheap Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems from wholesalers
    • Buy cheap Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems from wholesalers
    • Buy cheap Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems from wholesalers

    Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems

    Ask Lasest Price
    Brand Name : TAC OEM ODM
    Model Number : PIFC04214
    Certification : MSDS REACH ROHS
    Price : usd 4-6
    Delivery Time : 7 days for single cell 15-20 days for battery pack
    Payment Terms : TT, LC, Paypal etc
    Supply Ability : 50000 pack for one week
    • Product Details
    • Company Profile

    Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems

    Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems


    Features for Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems

    Excellent abuse tolerance and environmentally friendly
    Excellent calendar life, 10X cycle life vs. conventional lithium ion
    With greater power and energy density and lower impedance.
    Suitable for a wide variety of applications and system designs.
    Proven performance in the toughest conditions, combining durability, reliability, and safety
    Offers an excellent combination of price-performance.



    Application for Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems


    1. Power tool Portable high power devices
    2. UPS Stationary battery backup systems
    3. ESS Grid stabilization energy storage systems
    4. EV E CAR Commercial truck and bus hybrid electric vehicles (HEVs)

    Battery Specification List:

    No.

    Items

    Specifications

    1

    Charge cut-off voltage

    3.65V

    2

    Nominal voltage

    3.2V

    3

    Minimal capacity

    3300mAh @ 0.2C Discharge

    4

    Nominal capacity

    3350mAh @ 0.2C Discharge

    5

    Charge current

    1C

    6

    Standard charging method

    1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C

    7

    Charging time

    Standard charge: 2.0 hours Ref

    8

    Max. charge current

    2C

    9

    Max. continue discharge current

    10A (Cell skin temperature cannot exceed 80°C)

    10

    Discharge cut-off voltage

    2.0V

    11

    Operating temperature

    Charging: -10°C ~ 45°C
    Discharging: -20°C ~ 60°C
    (Cell skin temperature cannot exceed 80°C)

    12

    Storage temperature/humidity

    Temperature -10°C ~ +35°C
    Humidity 65%±20%RH
    (Recommended to store 23 ± 5°C for long term storage)

    13

    Cell Weight

    80.0g±1.0g

    14

    Cell Dimension

    Length: 65.0±0.3 mm
    Width: 26.2±0.2 mm


    Packing Manners


    Each battery pack is Individual package according of the international transportation rules to avoid circle short ,Each battery pack protected by thicken sponge bag and 20 pcs in standard paper export document

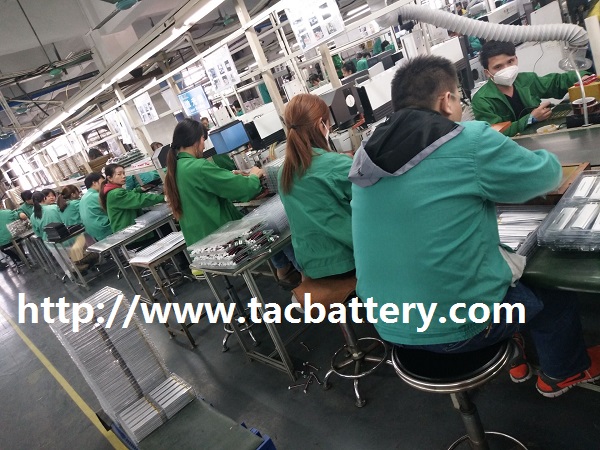

    Quality Control Process


    IQC test all raw material including of the anode and cathode , shell and other part.

    Made the lifePO4 battery cell follow standard work flow and 100% test voltage capacity resistance before one by one before pack with pvc by auto machina



    Battery Picture

    Rechargeable 3.2V LiFePO4 Battery 26650 3000mAh Energy Type for Backup Systems

    Other Size for LifePO4 Battery

    IFR18500 1000MAH 3.2V

    IFR18500 1200MAH 3.2V

    IFR18650 1400MAH 3.2V

    IFR18650 1500MAH 3.2V

    IFR26650 3300MAH 3.2V

    IFR32650 3500MAH 3.2V

    And more


    Storing the Batteries

    The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
    We recommend that batteries be charged about once per three months to prevent over-discharge.


    Period of Warranty

    The period of warranty is 1 year from the date of shipment.TAC BATTERY guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
