    3.2V LiFePO4 Battery 26650P 2400mAh Power Type Energy Density Cylindrical

    Ask Lasest Price
    Brand Name : TAC OEM ODM
    Model Number : LFR26650
    Certification : MSDS REACH ROHS
    Price : usd 5
    Delivery Time : 7 days for single cell 15-20 days for battery pack
    Payment Terms : TT, LC, Paypal etc
    Supply Ability : 50000 pack for one week
    • Product Details
    • Company Profile

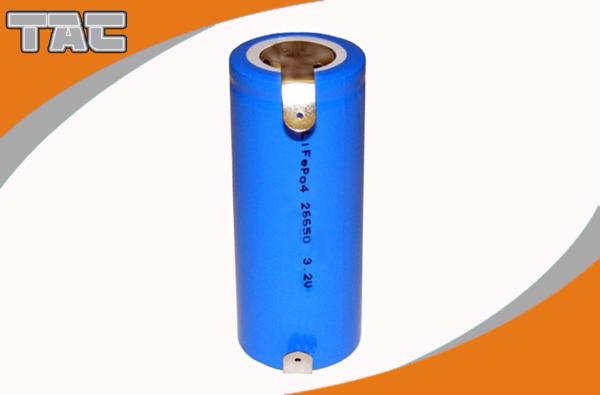

    3.2V LiFePO4 Battery 26650P 2400mAh Power Type Energy Density Cylindrical


    Energy Density Cylindrical 3.2V LiFePO4 Battery 26650P 2400mAh Power Type


    Features:

    1. Excellent abuse tolerance and environmentally friendly
    2. Excellent calendar life, 10X cycle life vs. conventional lithium ion
    3. With greater power and energy density and lower impedance.
    4. Suitable for a wide variety of applications and system designs.
    5. Proven performance in the toughest conditions, combining durability, reliability, and safety
    6. Offers an excellent combination of price-performance.

    Application:

    Portable high power devices support 10-30 c discharge performance

    Stationary battery backup systems

    Grid stabilization energy storage systems

    Commercial truck and bus hybrid electric vehicles (HEVs)

    Battery Specification List:

    No.ItemsSpecifications

    Remark

    1

    Nominal Capacity

    2400mAh

    0.2C Standard discharge

    2

    Minimum Capacity

    2350mAh
    3

    Nominal Voltage

    3.2V

    Mean Operation Voltage

    4

    Delivery voltage

    3.2~3.3V

    Within 10 days from Factory

    5

    Charge Voltage

    3.65V±0.03V

    By standard charge method

    6

    Standard charging method

    0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C
    7

    Charge current

    1C400mA

    Standard charge, charge time about 6h(Ref)

    1C1000mA

    Rapid Charge, charge time about: 3h(Ref)

    8

    Standard discharging method

    10C constant current discharge to2.0V,
    9

    Cell Internal Impedance


    ≤20mΩ

    Internal resistance measured at AC 1KHZ after 50% charge

    No.ItemsSpecifications

    Remark


    10

    Maximum charge current


    10C

    For continuous charging mod


    11

    Maximum discharge current


    10C

    For continuous discharge mod


    12

    Operation Temperature and relative humidity Range


    Charge

    0~45℃

    60±25%R.H.

    Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery


    Discharge

    -20~60℃

    60±25%R.H.

    13

    Storage temperature for a long time


    -20~25℃

    60±25%R.H.

    Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months.

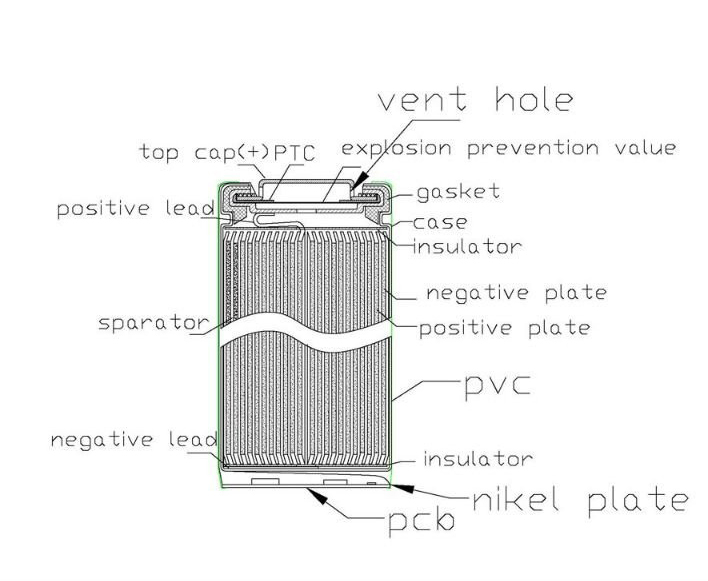

    Interior Structure



    Package Pitcture

    put the cell in bag one by one , 20 pcs / each box , and 5 box for one carton

    Similar Production Photo


    The LifePO4 battery Pack made by 26650 single cell

    Period of Warranty

    The period of warranty is one year from the date of shipment. TAC BATTERY guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.


    Storage of the Batteries

    The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
    We recommend that batteries be charged about once per half a year to prevent over discharge
    .
