3.6V ER14505 AA LiSOCl2 Battery with Wide Temperature Range for
Medical Instruments
Description For 3.6V ER14505 AA LiSOCl2 Battery with Wide Temperature Range for
Medical Instruments
1. High energy density: the battery can reach 420WH/KG and
800WH/dm3
2. High voltage: open circuit voltage of 3.65V, voltage range of
3.3V to 3.6V that is changed with the change of the load, the end
voltage is 2.0V or 2.5V.
3. Stable operation voltage: excellent stability. On the high
voltage platform where the voltage is almost unchanged, the
capacity output is still more than 90%.
4. Wide temperature range: provide the widest temperature range
among all existing batteries from -60℃ to 85℃
5. Excellent storage life: annual self-discharge rate is less than
1%. Fully-sealing structure and self-life is more than10years under
room temperature.
Application:
- Intelligent water meter, Ammeter, Gas Meter
- Industrial PC computer, Computer RAM, CMOS Memory Backup Power
Sources
- Medical Instruments, Radio Communication, Seismic Equipment,
Digitally-controlled Machine, Taxi Meter, Telephone
- Underwater Weapon, Military Communication Transmitter-receiver,
Portable communication Equipment, RMPS and more.
Packing Method:

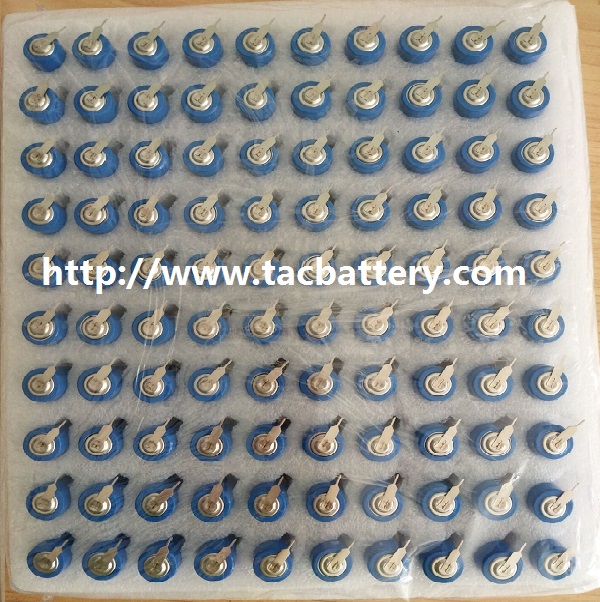

The battery protected by specially sponge tray
100PCS/layer, 1000Pcs/Carton, Weight: 20KG Size: 44*27*33cm
Specification For 3.6V ER14505 AA LiSOCl2 Battery with Wide
Temperature Range for Medical Instruments
No | Item | Data |
1 | Nominal voltage: | 3.6V |
2 | Nominal capacity: | 2400mAh(1.0mA / 2.0V) |
3 | Discharge end-voltage: | 2.0V |
4 | Operating voltage : | 3.4V(330Ω, in 5s) |
5 | Max constant discharge current: | 100mA |
6 | Max. pulse current: | 200mA |
7 | Ambient temperature range: | -55~ +85℃ |
8 | Storage life: | ≥10 year, Yearly self-discharge ≤ 1% |
Size; Max dimension : φ10.5mm×H45.0mm
If you have purchase the ER battery from other supplier, pls take
close attention to max size
in order to avoid the size over your space limit
Pictures:

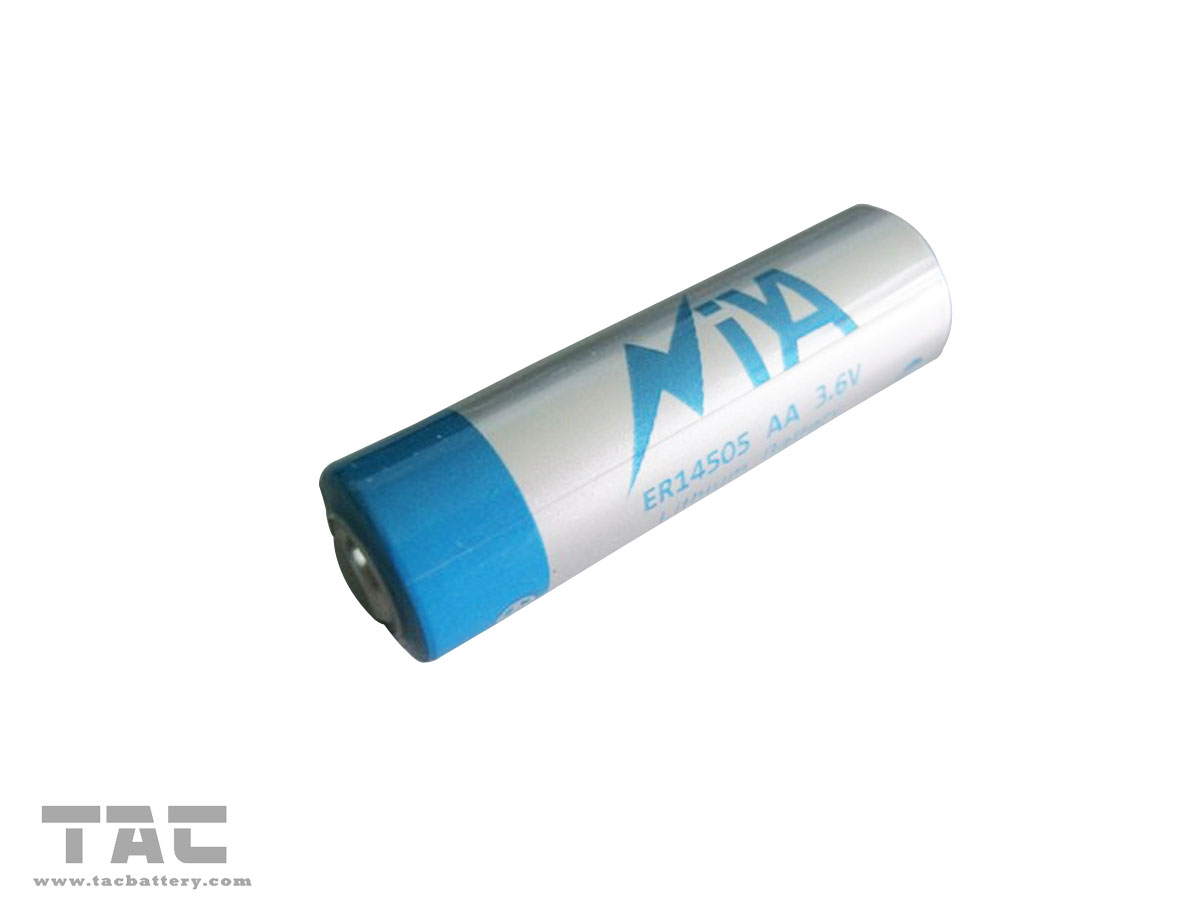

3.6V ER14505 AA LiSOCl2 Battery with Wide Temperature Range for
Medical Instruments

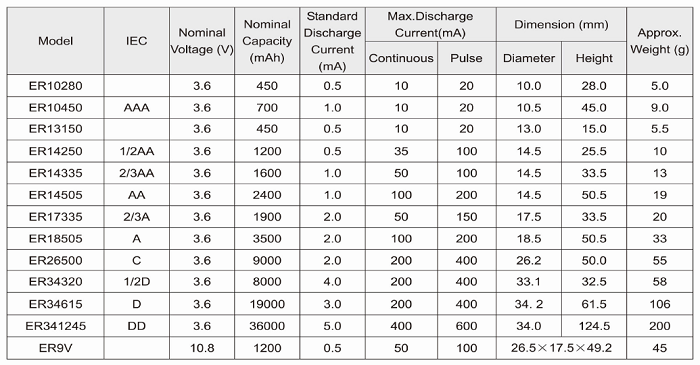

Product List For ER Battery With High Rate Performance
Storage Standard
>Cells should be stored in a clean
&dry(less than 30% RH) area
>Temp. should not exceed +30°C
According to the characteristics of the lithium sub-battery, after
a long period of storage, the battery is prone to passivation.
Please activate it before use. The activation method is:
short-circuit the battery , connect the positive and negative
electrodes with a thin iron wire for 3 to 5 seconds .
