High Temperature 3.6V LiSOCl2 Batteryo of ER14500S/AA with 2000mAh
Description:
The model name is ER14500 and the international standard model name
is AA battery
1. High cell voltage of 3.6V with high temperature from -55~ +85℃
2. Able to instantaneously provide multiplied pulse or heavy
current pulse.
3. Wide load range, wide temperature range of -55℃ to 85℃. Low
internal resistance and stable discharge voltage.
4. Able to provide a continuous discharge of small current and
heavy current pulse is also available, discharge time
is 5 years or more; Excellent discharge performance, more than 90%
capacity output under low or medium load.
Application:
1. Civil water meter, Gas meter, Kilowatt-hour meter, Smoke alarm,
Bu-regular proof alarm, Intelligent instruments,
Life-guard device, Signal lamp, Professional radio electric tools.
2. Military electronic devices, Communication equipment, Portable
transmitter-receiver, Night-vision instruments,
Collimator, GPS system for navigation, Underwater weapon, Sonobuoy
missile and more.
Packing Method:
100PCS/layer, 1000Pcs/Carton, weight:20KG Size:44*27*33cm
Specification:
No | Item | Data |
1 | Nominal voltage: | 3.6V |
2 | Nominal capacity: | 2000mAh(1mA / 2.0V) |
3 | Discharge end-voltage: | 2.0V |
4 | Operating voltage : | 3.2V(16Ω, in 5s) |
5 | Max constant discharge current: | 400mA |
6 | Max. pulse current: | 800mA |
7 | Ambient temperature range: | -55~ +85℃ |
8 | Storage life: | ≥10 year, Yearly self-discharge ≤ 1% |

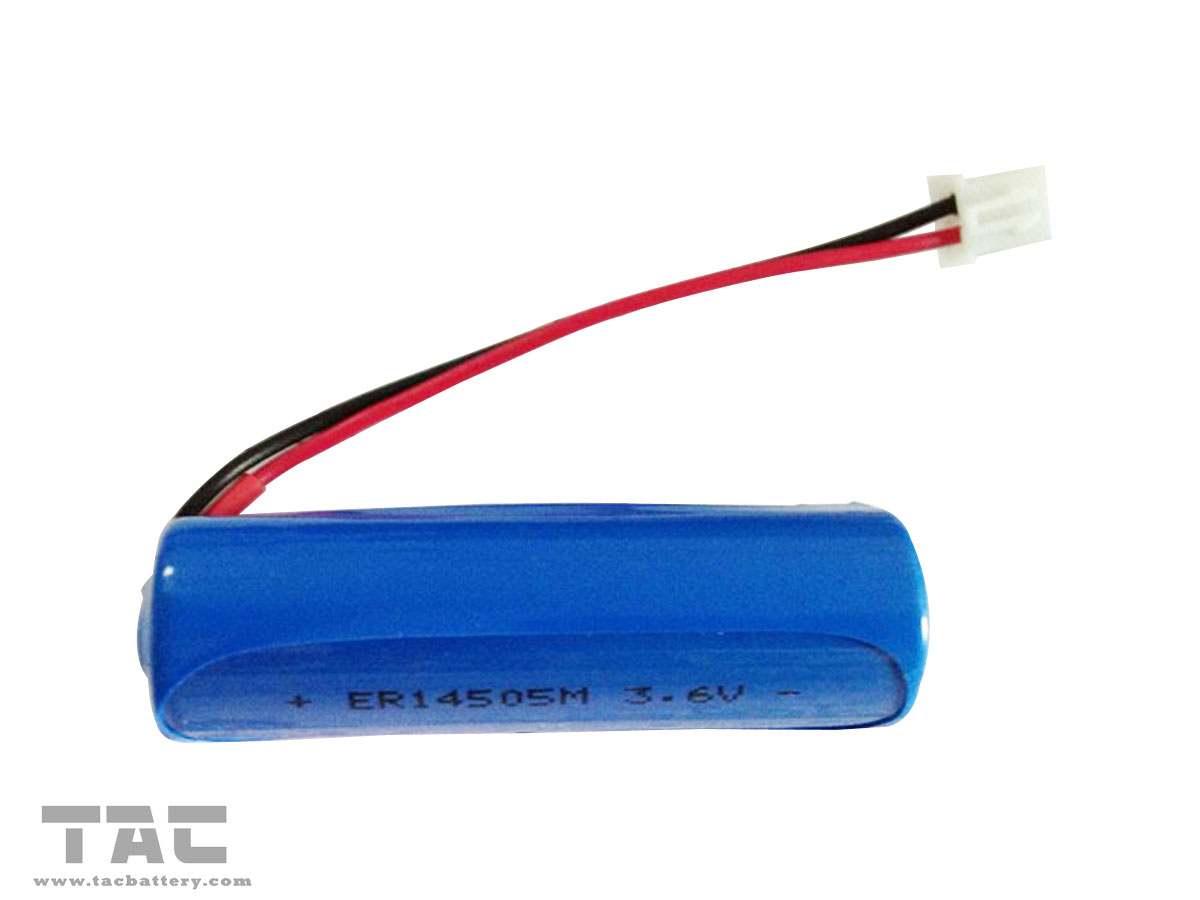

Pictures:
High Temperature 3.6V LiSOCl2 Batteryo of ER14500S/AA with 2000mAh
| Model | alias | Typical voltage | Typical capacity | working current(mA) | Max size(mm) | Weight(g) |
| (V) | (mAh) | standard current | continuous current | Pulse current | Diameter*Height |
| ER13150 | | 3.6V | 450mAh | 1mA | 10mA | 30mA | 13.5mm*15.5mm | 6g |
| ER14250 | 1/2AA | 3.6V | 1200mAh | 1mA | 20mA | 45mA | 14.5mm*25.2mm | 10g |
| ER14335 | 2/3AA | 3.6V | 1600mAh | 1mA | 75mA | 150mA | 14.5mm*33.5mm | 12g |
| ER14505 | AA | 3.6V | 2400mAh | 2mA | 100mA | 200mA | 14.5mm*50.5mm | 19g |
| ER17335 | 2/3A | 3.6V | 2000mAh | 1mA | 100mA | 200mA | 17.0mm*33.5mm | 18g |
| ER17505 | A | 3.6V | 3500mAh | 2mA | 120mA | 200mA | 17.0mm*50.5mm | 24g |
| ER18505 | A | 3.6V | 3800mAh | 3mA | 120mA | 200mA | 18.5mm*50.5mm | 28g |
| ER26500 | C | 3.6V | 8500mAh | 4mA | 130mA | 300mA | 26.2mm*50mm | 52g |
| ER34615 | D | 3.6V | 19000mAh | 5mA | 200mA | 400mA | 32.9mm*61.5mm | 100g |
we support power type and high temperature model as below.
| ER14250M | 1/2AA | 3.6V | 800mAh | 2mA | 120mA | 250mA | 14.5mm*25.2mm | 10g |
| ER14335M | 2/3AA | 3.6V | 1350mAh | 3mA | 300mA | 500mA | 14.5mm*33.5mm | 13g |
| ER14505M | AA | 3.6V | 2200mAh | 4mA | 500mA | 1000mA | 14.5mm*50.5mm | 19g |
| ER17335M | 2/3A | 3.6V | 1800mAh | 3mA | 500mA | 1000mA | 17.0mm*33.5mm | 20g |
| ER17505M | A | 3.6V | 2800mAh | 5mA | 800mA | 1500mA | 17.0mm*50.5mm | 26g |
| ER18505M | A | 3.6V | 3200mAh | 5mA | 600mA | 1500mA | 18.5mm*50.5mm | 28g |
| ER26500M | C | 3.6V | 6500mAh | 10mA | 1000mA | 2000mA | 26.2mm*50.0mm | 52g |
| ER34615M | D | 3.6V | 13000mAh | 15mA | 2000mA | 4000mA | 32.9mm*61.5mm | 100g
|
