Low Self-discharge LiSOCl2 Battery 3.6V for Communication Equipment
Description:
1. The rated voltage is 3.6V, there are various size including of
ER14250,ER14335,ER14505/ER14500,ER17335,ER18505,ER26500,ER34615
2. Able to instantaneously provide multiplied pulse or heavy
current pulse.
3. Wide load range, wide temperature range of -55℃ to 85℃. Low
internal resistance and stable discharge voltage.
4. Able to provide a continuous discharge of small current and
heavy current pulse is also available, discharge time is 5 years or
more; Excellent discharge performance, more than 90% capacity
output under low or medium load.
Application:
- Civil water meter, Gas meter, Kilowatt-hour meter,
- Smoke alarm, Bu-regular proof alarm, Intelligent instruments,
- Life-guard device, Signal lamp, Professional radio electric tools.
- Military electronic devices, Communication equipment,
- Portable transmitter-receiver, Night-vision instruments,
- Collimator, GPS system for navigation, Underwater weapon,
- Sonobuoy missile
Packing Method:
The batteries were fixed by thickness sponge tray avoid short
circle and shake
70PCS/layer, 1000Pcs/Carton, weight:20KG Size:44*27*33cm
Specification for typical model
No | Item | Data |
1 | Nominal voltage: | 3.6V |
2 | Nominal capacity: | 1500mAh(1mA / 2.0V) |
3 | Discharge end-voltage: | 2.0V |
4 | Operating voltage : | 3.3V(330Ω, in 5s) |
5 | Max constant discharge current: | 500mA |
6 | Max. pulse current: | 1000mA |
7 | Ambient temperature range: | -55~ +85℃ |
8 | Storage life: | ≥10 year, Yearly self-discharge ≤ 1% |

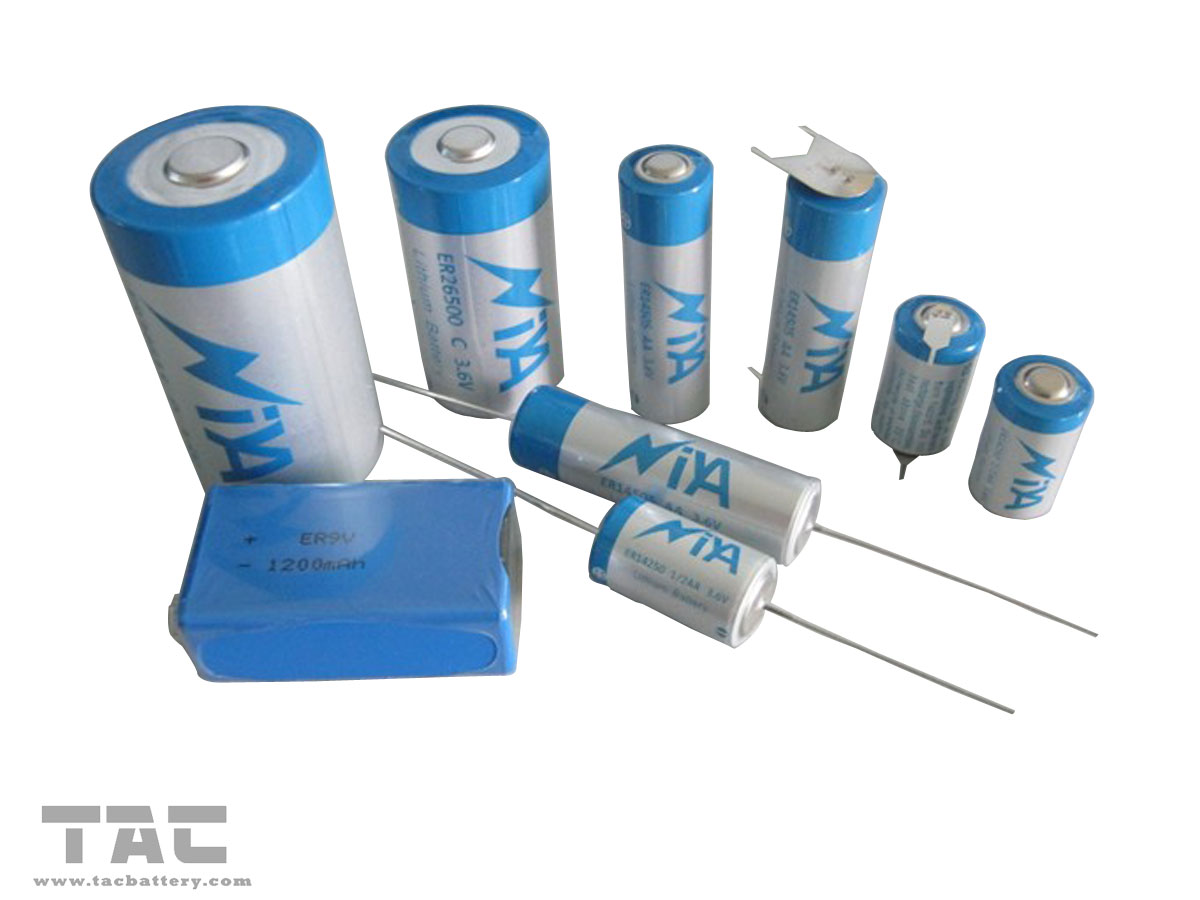

Pictures for Various assemble
The batteries can be add tag , metal axis , wire and connector with
customer's require

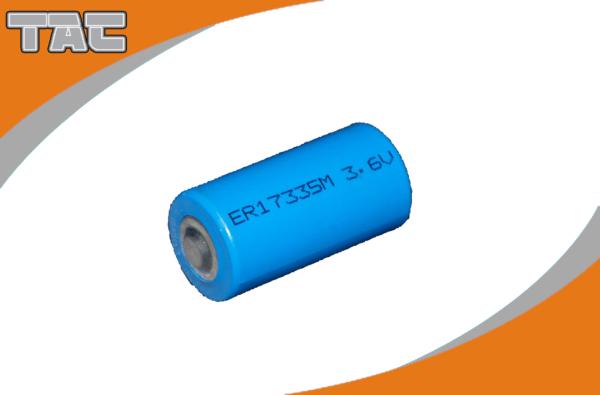

Low Self-discharge LiSOCl2 Battery 3.6V ER26500M for Communication
Equipment
Specially temperature peformance
There is specially high temperature battery can meet -40℃~ +150℃
For example the model ER14250S , The specification as below
1) Nominal voltage: 3.6V
2) Nominal capacity: 600mAh(10mA / 2.0V)
3)Discharge end-voltage: 2.0V
4) Operating voltage: 3.3V(660Ω, in 15s)
5) Max constant discharge current: 10mA
6)Max. pulse current: 50mA
7) Ambient temperature range: -40℃~ +150℃
8) Storage life: ≥10 year, Yearly self-discharge ≤ 1%
Product List For ER Battery With High Rate Performance
