Ammeter LiSOCl2 Battery ER17335 1800mAh 3.6V Stable Voltage
Description For Ammeter LiSOCl2 Battery ER17335 1800mAh 3.6V Stable
Voltage
1. The rated voltage is 3.6V,
various size involved
ER14250,ER14335,ER14505/ER14500,ER17335,ER18505,ER26500,ER34615
2. High voltage: open circuit voltage of 3.65V, voltage range of
3.3V to 3.6V that is changed with the change of the load, the end
voltage is 2.0V or 2.5V.
3. Stable operation voltage: excellent stability. On the high
voltage platform where the voltage is almost unchanged,the capacity
output is still more than 90%.
4. Wide temperature range: provide the widest temperature range
among all existing batteries from -60℃ to 85℃
5. Excellent storage life: annual self-discharge rate is less than
1%. Fully-sealing structure and self-life is more than10years under
room temperature.
Application for Ammeter LiSOCl2 Battery ER17335 1800mAh 3.6V Stable
Voltage
- Intelligent water meter, Ammeter, Gas Meter
- Industrial PC computer, Computer RAM, CMOS Memory Backup Power
Sources
- Medical Instruments, Radio Communication, Seismic Equipment,
Digitally-controlled Machine, Taxi Meter, Telephone
- Underwater Weapon, Military Communication Transmitter-receiver,
Portable communication Equipment, RMPS and more.
Packing Method:
100PCS/layer, 1000Pcs/Carton, Weight: 20KG Size: 44*27*33cm
Specification:
No | Item | Data |
1 | Nominal voltage: | 3.6V |
2 | Nominal capacity: | 1800mAh(1.2mA / 2.0V) |
3 | Discharge end-voltage: | 2.0V |
4 | Operating voltage : | 3.3V(330Ω, in 5s) |
5 | Max constant discharge current: | 50mA |
6 | Max. pulse current: | 100mA |
7 | Ambient temperature range: | -55~ +85℃ |
8 | Storage life: | ≥10 year, Yearly self-discharge ≤ 1% |
Battery Production Line
| Lithium Thionyl Chloride Batteries |
| Model | Voltage
(v) | Capacity
(mAh) | Dimension
(mm) | Nominal Discharge Current(mA) | Weight
(g) |
| ER10250 | 3.6 | 400 | 10.5*25 | 0.5 | 5 |
| ER10280 | 3.6 | 450 | 10.5*28 | 0.5 | 6 |
| ER10450 | 3.6 | 700 | 10.5*45 | 1 | 8 |
| ER14250 | 3.6 | 1200 | 14.5*25.4 | 1 | 10 |
| ER14335 | 3.6 | 1600 | 14.5*33.5 | 1 | 12 |
| ER14505 | 3.6 | 2400 | 14.5*50.5 | 2 | 19 |
| ER17335 | 3.6 | 1800 | 17.5*34 | 3 | 18 |
| ER17505 | 3.6 | 3200 | 17.5*50.5 | 3 | 26 |
| ER18505 | 3.6 | 3600 | 18.7*50.5 | 3 | 28 |
| ER26500 | 3.6 | 9000 | 26.2*50 | 4 | 52 |
| ER34320 | 3.6 | 8000 | 34.2*32.5 | 4 | 58 |
| ER34615 | 3.6 | 19000 | 34.2*61.5 | 5 | 100 |
| ER341245 | 3.6 | 36000 | 34.2*124.5 | 10 | 195 |
| ER14250M | 3.6 | 800 | 14.5*25.4 | 2 | 10 |
| ER14335M | 3.6 | 1300 | 14.5*33.5 | 3 | 13 |
| ER14505M | 3.6 | 2200 | 14.5*50.5 | 4 | 19 |
| ER17505M | 3.6 | 2800 | 17.5*50.5 | 5 | 27 |
| ER18505M | 3.6 | 3200 | 18.7*50.5 | 5 | 28 |
| ER26500M | 3.6 | 6500 | 26.2*50 | 10 | 52 |
| ER34615M | 3.6 | 14000 | 34.2*61.5 | 15 | 100 |
| ER13150S | 3.6 | 300 | 13.2*15 | 0.5 | 6 |
| ER14250S | 3.6 | 750 | 14.5*25.2 | 1 | 10 |
| ER14505S | 3.6 | 1600 | 14.5*50.5 | 2 | 20 |
| ER26500S | 3.6 | 4100 | 26.2*50 | 4 | 60 |
| ER34615S | 3.6 | 10500 | 34.2*61.5 | 5 | 106 |
| ER2450 | 3.6 | 500 | 24.5*5.9 | 1 | 9 |
| ER32100 | 3.6 | 1700 | 32.9*10 | 1 | 25 |
| ER3265 | 3.6 | 1000 | 32.9*6.5 | 1 | 17 |
| ER9V | 10.8 | 1200 | 17*26.3*48.5 | 1 | 30 |
| EF651615 | 3.6 | 400 | 16.8*15.8*6.8 | 1 | 5 |
| EF651625 | 3.6 | 750 | 16.8*25.8*6.8 | 1 | 8 |

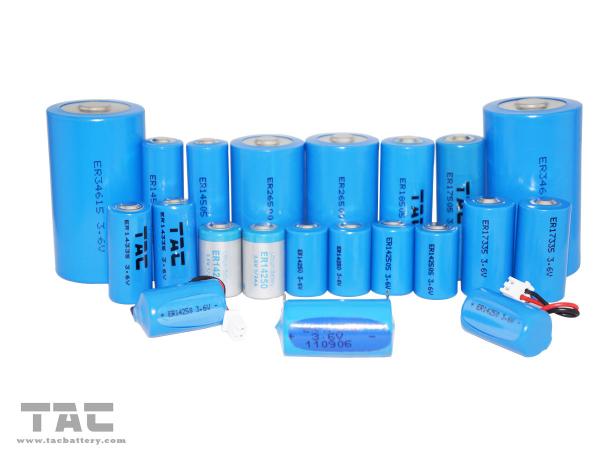

Pictures:
