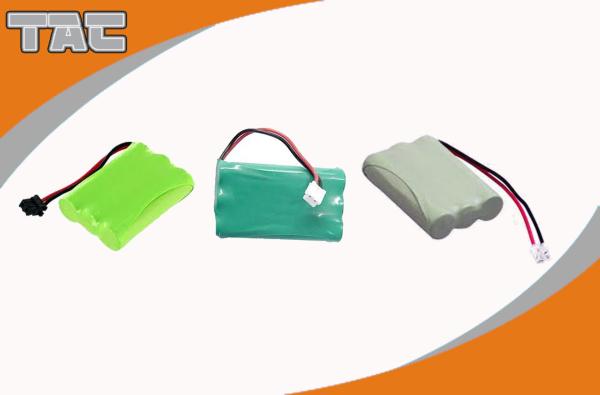

    Nickel Metal Hydride Rechargeable Batteries for Vacuum Cleaner, Portable DVD

    Ask Lasest Price
    Brand Name : TAC
    Model Number : NIMH Portable Electronic Battery
    Certification : MSDS REACH
    Price : Price decide by detial model
    Payment Terms : T/T, LC, Pay pal etc.
    Supply Ability : 500000pcs per week
    Delivery Time : 10-25 days
    • Product Details
    • Company Profile

    Nickel Metal Hydride Rechargeable Batteries for Vacuum Cleaner, Portable DVD


    Nickel Metal Hydride Rechargeable Batteries for Vacuum Cleaner, Portable DVD


    Characteristics


    Unless otherwise specified, the standard range of atmospheric conditions for test as follows:

    1. Ambient temperature 20±5℃
    2. Relative humidity 65±20%
    3. Atmospheric pressure 960±100mbar
    4. Accuracy of voltmeters and amperometers to be used in testing shall be equal to or better than the grade 0.5.

    Specification for NIMH AA2000MAH

    THe NImh battery performance is same except the capacity

    Test itemConditionSpecification
    1. ChargeStandardCharge at 0.1C for 16 hours
    FastCharge at 0.5C to -△V=5~10mV
    2. DischargeAt 0.2C to 1.0V
    3. Discharge cut-off voltage1.0V

    4.Capacity

    (mAh)

    MinimumStandard charge/discharge1950
    TypicalStandard charge/discharge2000
    5. Internal resistanceAfter fully charge,rest 1 hour, measured at 1000Hz≤35mΩ
    6. Self-DischargeThe charged battery is stored for 28 days at 20℃±5℃. And the discharge time is measured at 0.2C or 0.5C discharge

    0.5C discharge

    ≥70minutes

    0.2C discharge

    ≥188minutes

    7. High temperature testStore at 40℃,50℃,60℃ for 2 hours then charge/dischargeNo leakage
    8. Low temperature testStore at 0℃ for 2 hours then charge/dischargeNo leakage
    9. Short circuit testShort circuit after fully chargeNo explode
    10. Drop testFree fall on the concerte from 1 meter 3 times after fully charged

    No leakage

    No short-circuit

    11.Cycle lifeChargeRestDischarge

    Capacity retention

    ≥60% after 500cycles

    10.1C for 16h00.25C for 2h20min
    2~480.25C for 3h10min00.25C for 2h20min
    490.25C for 3h10min00.2C to 1.0V
    500.1C for 16h1~4h0.2C to 1.0V

    Nimh battery product list

    TypeModelSizeNominal capacity(mAh)DimensionsStandard ChargeRaoid ChargeWeight
    HeightDiameterCurrentTimeCurrentTime
    A2000A200050172001610002.435
    A2200A220050172201611002.438
    AA1600AA160049.514.5160168002.426
    AA1800AA18005014.5180169002.427
    AA2000AA200050.514.52001610002.428
    AAA3001/3AAA30028.510.530163001.27
    AAA4003/4AAA40035.510.540164001.28
    AAA700AAA70044.510.570167001.212
    17670300017670300067173001615002.448
    17670330017670330067173301616502.450
    17670360017670360067173601618002.452
    18650380018650380065.818.53801619002.458
    18650400018650400065.818.54001620002.461
    1867042001867042006718.54201621002.462

    We can suppor the bulk battery and blistercard package


    the package for blistercard similar as below (We OEM for Toshiba )


    Quality Nickel Metal Hydride Rechargeable Batteries for Vacuum Cleaner, Portable DVD for sale
