Primary Lithium Iron Battery AA R6 1.5V for GPS and High-Speed Toy
Car
TAC GuangZhou Great Power is the first domestic high-tech
enterprise to develop lithium-iron batteries. It has achieved
large-scale production. The products have improved quality in terms
of energy density, service life, safety performance, high and low
temperature performance, and product appearance.
Feature for Primary Lithium Iron Battery AA R6 1.5V for GPS and
High-Speed Toy Car
The voltage is 1.5V same with carbon zinc and alkaline. So this
battery can be used in any field which Alkaline and Carbon Zinc
used.
The capacity is 7-10 times more than the alkaline battery when in
large current discharge. Especially in the digital camera,flash light. You can find you can take picture continuously.
The capacity is cover 2600-2900 capacity for the AA model. The
capacity for the AAA is 1100mAh. The capacity is much higher than
the alkaline LR6 and LR03 battery.
The weight is only 1/3 of the alkaline battery
It's an environmental friendly products. The raw material is FeS2
which is very common and with rich source in the earth.
Although the price now is much higher than the alkaline and carbon
zinc, we can believe the price will be down much with
the mass and automatic production.
Type: High rate, High capacity, quality guaranteed
Application:
It is suitable for four-wheel drive vehicles, toy robots,
photography equipment, audio-visual equipment, gaming equipment,
electric toothbrushes, electric shavers and other fields.
Packing Method:
400 PCs/Carton, standard export carton for bulk
Double blister card or half blister card for OEM order
due to more stringent regulations in dealing with dangerous
goods,We pack the battery follow UN38.3 certification,the batteries
were separated one by one and then put into the carton to avoid
short circle
Specification for Primary Lithium Iron Battery AA R6 1.5V for GPS
and high-speed for toy car
No. | Items | Specification |
1 | Nominal Voltage | 1.5 V |
2 | Rated Capacity | 2700 mAh @ 300mA discharge |
3 | Working Voltage | 1.30V @ 200mA discharge |
4 | Max. Discharge Current | 2000 mA continuous |
5 | Discharge Cut-off Voltage | 0.80V |
6 | Volume | 8.0 cubic centimeters |
7 | Weight | Approx. 14.5 g |
8 | Lithium Content | Less than 1 gram per cell |
9 | Dimensions | Diameter: 14.0±0.5 mm |
|
| Height: 49.85±0.65 mm |
10 | Operating Temp. | -20 ℃ to 60 ℃ |
11 | Storage Temp. | -20 ℃ to 40 ℃ |
12 | Storage Humidity | ≤75 % |
13 | Shell Life | 5 Years |
Battery Picture
OEM Product Photos for Famous Brand VARTA //

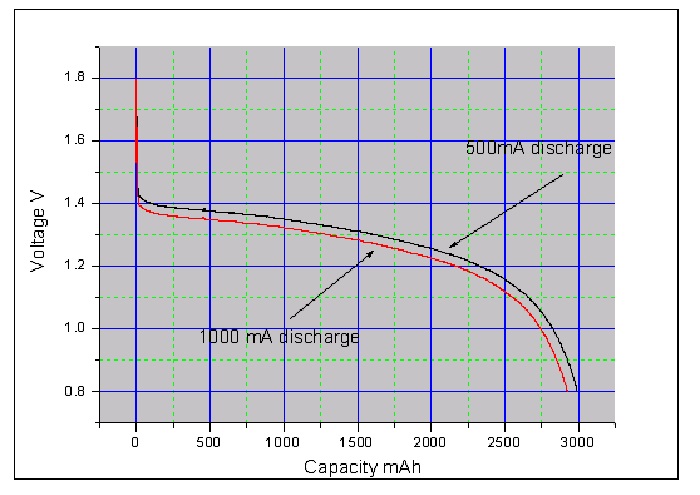

Capacity Test Data
The battery performance same with Energize Lithium Battery
Drawing for Primary Lithium Iron Battery AA R6 1.5V for GPS and
High-Speed Toy Car
Other Size for Primary Lithium Iron Battery AA R6 1.5V for GPS and
high-speed for toy car
AA 2500MAH AA2600MAH AA2700MAH
AAA1000MAH AAA1100MAH
