18650 Lithium Ion Cylndrical Battery 3.7V 2200mAh li-iON Cell For
LED Light
Model : 18650 Lithium Battery 3.7V 2200mAh li-iON Cell For LED
Light
Battery parameters For 18650 Lithium Battery 3.7V 2200mAh li-iON
Cell For LED Light
| No. | Item | Rated Performance | Remark |
| 1 | Rated Capacity | Typical | 2200mAh | Standard discharge(0.2C C5A) after Standard charge |
| Minimum | 2150mAh |
| 2 | Nominal Voltage | 3.7V | Mean Operation Voltage During Standard Discharge After Standard
Charge |
| 3 | Voltage at end of Discharge | 3.0V | Discharge Cut-off Voltage |
| 4 | Charging Voltage | 4.2±0.03V | |
| 5 | AC (1KHz) Impedance New Cell Max.(mW) | ≤80mΩ | The measure must be uses the new batteries that within one week
after shipment and cycles less than 5 times |
| 6 | Standard charge | Constant Current 0.5C5A Constant Voltage 4.2V 0.01 C5A cut-off | Charge time : Approx 4.0h |
| 7 | Standard discharge | Constant current 0.2 C5A end voltage 3.0V | |
| 8 | Fast charge | Constant Current 1C5A Constant Voltage 4.2V 0.01 C5A cut-off | Charge time : Approx 2.5h |
| 9 | Fast discharge | Constant current 1 C5A end voltage 3.0V | |
| 10 | Maximum Continuous Charge Current | 1 C5A | |
| 11 | Maximum Continuous Discharge Current | 1.5 C5A | |
| 12 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. Bare Cell |
| Discharge: -20~60℃ |
| 13 | Storage Temperature Range | Less than 1 year: -20~25℃ | 60±25%R.H. at the shipment state |
| less than 3 months: -20~40℃ |
| 14 | Weight | Approx 39±3 g | Bare Cell |
| 15 | Cell Dimension | Diameter:18.3±0.2mm | Initial Dimension |
| Height:64.5±0.5mm |
Application:
- Electronic instruments
- E- toy
- electrical scooter
- various light lamp
- note book
- Power tool
- solar product
- camera
- for Led light
- The cells will be usage for EV.
FAQ for 18650 Lithium Battery 3.7V 2200mAh li-iON Cell For LED
Light
Q: Can I get the sample order?
A:Yes, if the buyer would like to pay for the samples fee and
shipping fee ,we welcome sample order to test and check quality,
Mix sample are acceptable
Q:How did you ship the goods and how long does it take arrive?
A:the lithium battery is dangrous cargo , We usually ship by our
forward including of DHL, EMS, Fedex, and TNT, It usually take 3-5
work days to arrive.
Q:How to proceed the order if I have logo to print?
A:Firstly, pls confirm the specification for the battery including
of the size accemble and other important performance , and the we
will issue the PI, after the buyer pay with the PI , we will send
sample to you.
Q:Do you offer guarantee for the products?
A:Yes, we offer one year warranty for the products.

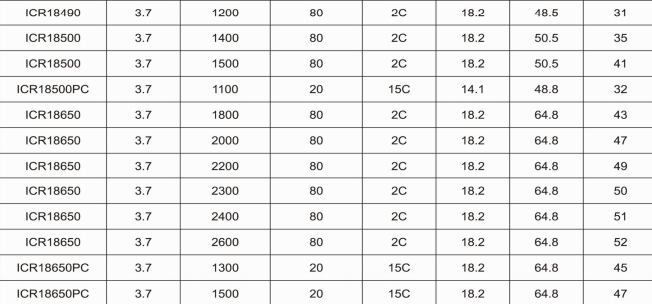

Similar model:

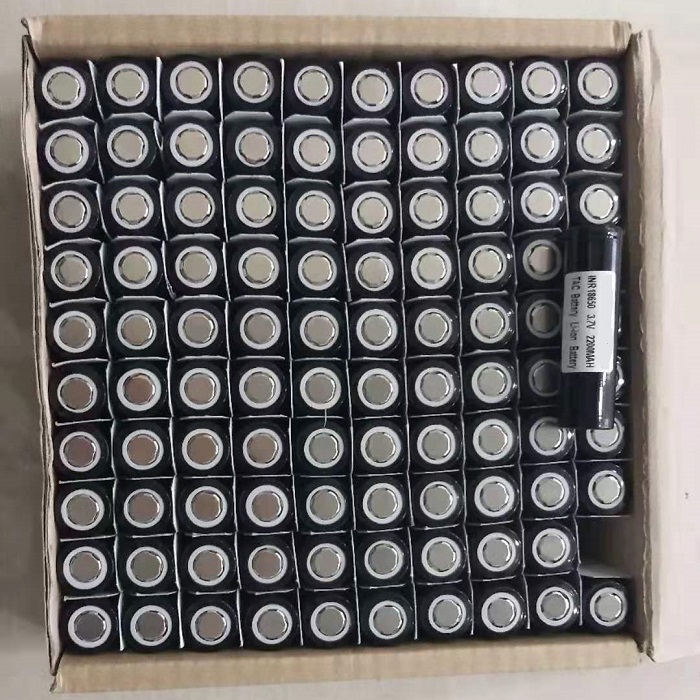

Pictures For
LIR18650 3.7v Lithium Ion Cylindrical Battery 2200mAh with High
Energy Density for LED Light
Certification
UL2054 REACH

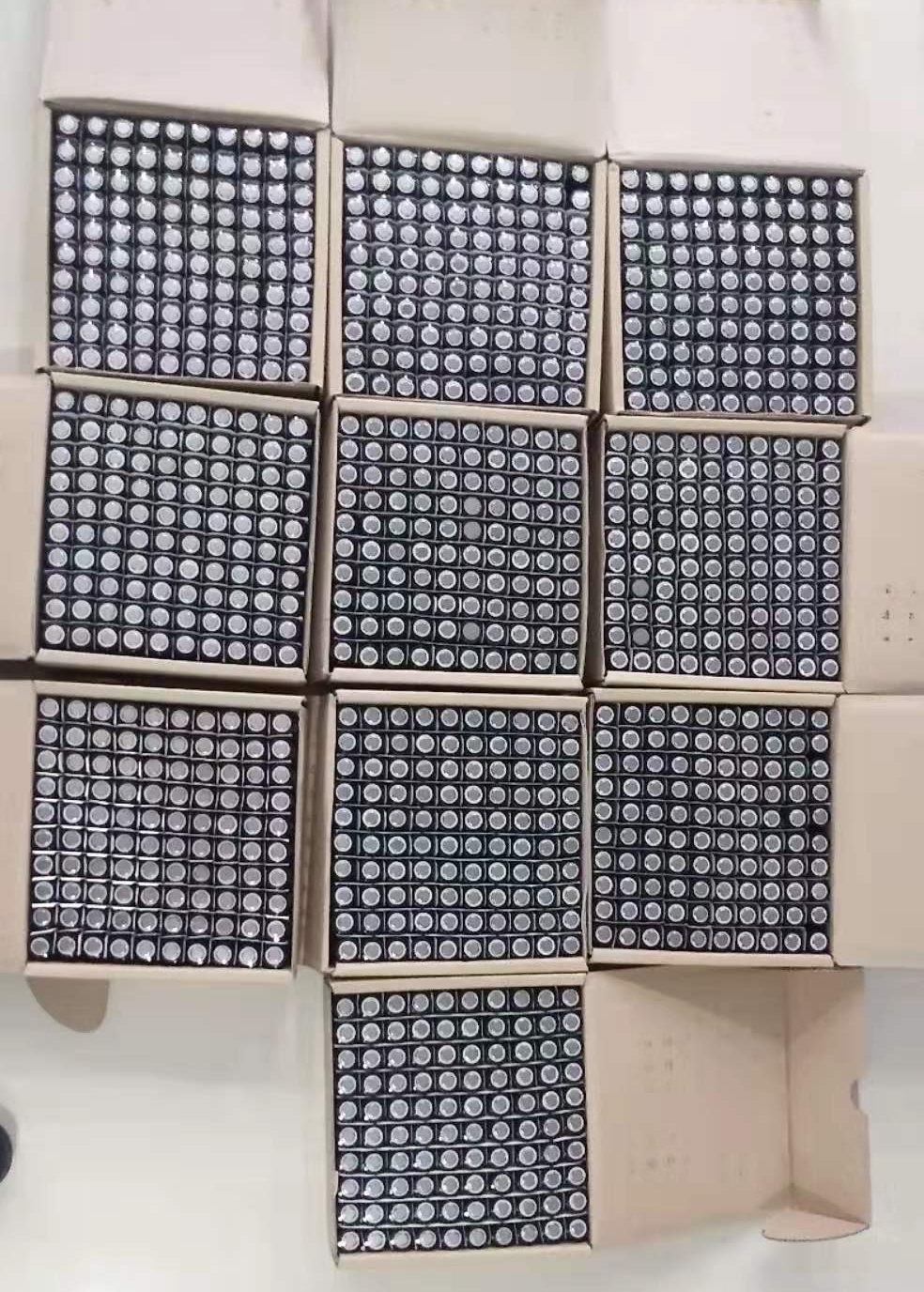

Industry Packaging Description
The industry packaging is 50 pcs in one box , and 8 box in one
carton
We also support the display or OEM package
Delivery Date:
7-10days after the customer confirmt he Pi and arrange the payment
We ship out the cargos by air and sea with customer's require
Sure we can product the battery pack by this cell with customer's
require.
The Picture for battery pack
Our Factory Picture
