Lithium Polymer Cell GSP555376 3.7V 2300mAh Batteries for Toy

    Buy cheap Lithium Polymer Cell GSP555376 3.7V 2300mAh Batteries for Toy from wholesalers

    Buy cheap Lithium Polymer Cell GSP555376 3.7V 2300mAh Batteries for Toy from wholesalers
    • Buy cheap Lithium Polymer Cell GSP555376 3.7V 2300mAh Batteries for Toy from wholesalers
    • Buy cheap Lithium Polymer Cell GSP555376 3.7V 2300mAh Batteries for Toy from wholesalers
    • Buy cheap Lithium Polymer Cell GSP555376 3.7V 2300mAh Batteries for Toy from wholesalers
    • Buy cheap Lithium Polymer Cell GSP555376 3.7V 2300mAh Batteries for Toy from wholesalers

    Lithium Polymer Cell GSP555376 3.7V 2300mAh Batteries for Toy

    Ask Lasest Price
    Brand Name : Tac
    Model Number : 3.7V 2300mAh
    Certification : UL, Rohs
    Price : USD 1-3
    Delivery Time : 10 days after order confirm
    Payment Terms : T/T, LC,Paypal etc.
    Supply Ability : 30K/Day
    • Product Details
    • Company Profile

    Lithium Polymer Cell GSP555376 3.7V 2300mAh Batteries for Toy


    Lithium Polymer Cell GSP555376 3.7V 2300mAh Batteries for Toy

    Model Description


    1. The batteries used in various model airplane toy

    2. Place of Origin Guangdong China (Mainland)

    3. Brand Name TAC

    4. Model Name; GSP555376(Rechargeable Gsp555376)

    5. Battery Type :polymer lithium-ion battery

    6. Nominal Voltage 3.7V

    7. Nominal Capacity 2300mAh

    8. Size :5.5mm(T)*53mm(w)76mm(h)



    Detail Specification for Lithium Polymer Cell GSP555376 3.7V 2300mAh Batteries for Toy

    No.

    Item

    Rated Performance

    Remark

    1

    Rated Capacity

    Minimum

    2300mAh

    Standard discharge(0.2C
    C5A) after Standard charge

    2

    Nominal Voltage

    3.7V

    Mean Operation Voltage
    During Standard Discharge
    After Standard Charge

    3

    Voltage at end of
    Discharge

    3.0V

    Discharge Cut-off Voltage

    4

    Charging Voltage

    4.2±0.03V


    5

    AC (1KHz) Impedance
    New Cell Max.(mW)

    ≤80mΩ


    6

    Standard charge

    Constant Current 0.5C5A
    Constant Voltage 4.2V
    0.01 C5A cut-off

    Charge time : Approx 4.0h

    7

    Standard discharge

    Constant current 0.2 C5A
    end voltage 3.0 V


    8

    Fast charge

    Constant Current 1C5A
    Constant Voltage 4.2V
    0.01 C5A cut-off

    Charge time : Approx 2.5h

    9

    Fast discharge

    Constant current 1 C5A
    end voltage 3.0 V


    10

    Maximum Continuous
    Charge Current

    1 C5A


    11

    Maximum Continuous
    Discharge Current

    1.5 C5A


    12

    Operation Temperature Range

    Charge: 0~45℃

    60±25%R.H.
    Be Cell

    Discharge: -20~60℃

    13

    Storage Temperature
    Range

    Less than 1 year: -20~25℃

    60±25%R.H.
    at the shipment state

    less than 3 months: -20~40℃

    14

    Weight

    Approx :40g

    Bare Cell

    15

    Cell Dimension

    Length: Max.76mm

    Initial Dimension

    Width: Max.53mm

    Thickness: Max. 5.5mm


    Application for Lithium Polymer Battery

    1. Car starter jumper
    2. Global localization satellite GPS,
    3. Bluetooth, camera,
    4. portable type :media products(Mp3, Mp4, DVD),
    5. notebook, tablet PC,
    6. the electronic toy, e-bike, model ship,
    7. the power tool,
    8. the multi-purpose PDA telephones.



    Test Report Photos for Lithium Polymer Cell




    Similar Model for Lithium Polymer Cell GSP555376 3.7V 2300mAh Batteries for Aeromodelling Toy

    Model

    Nominal Voltage (V)

    Typical Cap.

    Dimension(mm)

    (mm)

    Thickness

    Width

    Height

    073496DHP

    3.7

    2100

    7.8

    34

    96

    LP0567100

    3.7

    3400

    4.8

    67

    100

    LP066166

    3.7

    2750

    6.1

    61

    66

    LP555376

    3.7

    2300

    5.6

    53

    76

    LP085065

    3.7

    2600

    7.8

    50

    65

    LP085080

    3.7

    3400

    8

    50

    80

    LP0845131

    3.7

    5100

    7.5

    45

    131

    LP0831134

    3.7

    4000

    8.1

    31

    132

    LP55100100

    3.7

    5600

    5.5

    100

    100

    LP605590

    3.7

    3400

    6

    55

    90

    LP9051109

    3.7

    5500

    9

    51

    109

    LP9551119

    3.7

    6800

    9.5

    51

    119

    *LP7044125

    3.7

    4200

    7

    44

    125

    *LP7545135

    3.7

    4500

    7.5

    45

    135

    LP704374

    3.7

    2200

    7

    43

    74

    LP854374

    3.7

    3000

    8.5

    43

    74


    FAQ


    Q1. Can I have a sample order?
    Yes, we are delighted to get your sample order to test and Customized is available.
    Normally the samples is free if the samples less than 2 pcs single cell
    Q2. What about the lead time?
    Sample needs 5~10 days when we have battery stock
    mass production time needs 25~30 days if the battery have not stock
    Q3. Do you have any MOQ limit?
    Yes, The MOQ for mass production is 5000pcs, but we can accepted partial delivery
    there is no MOQ if you just need sample ( we have the battery cell stock )
    Q4. How do you ship the goods and how long does it take to arrive?
    Sampled will be shipped by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
    Airline and sea shipping also optional depend on your quantity
    Q5. How to proceed an order?
    Firstly share your requirements or application to us , we will suggestion the good solution
    Secondly We quote according to your requirements or our suggestion specification
    Thirdly customer confirm the PI for samples or mass order
    Fourthly We arrange the production after we get the payment from the buyer
    Q6. Is it OK to print my logo on product?
    Yes.OEM , ODM are welcome

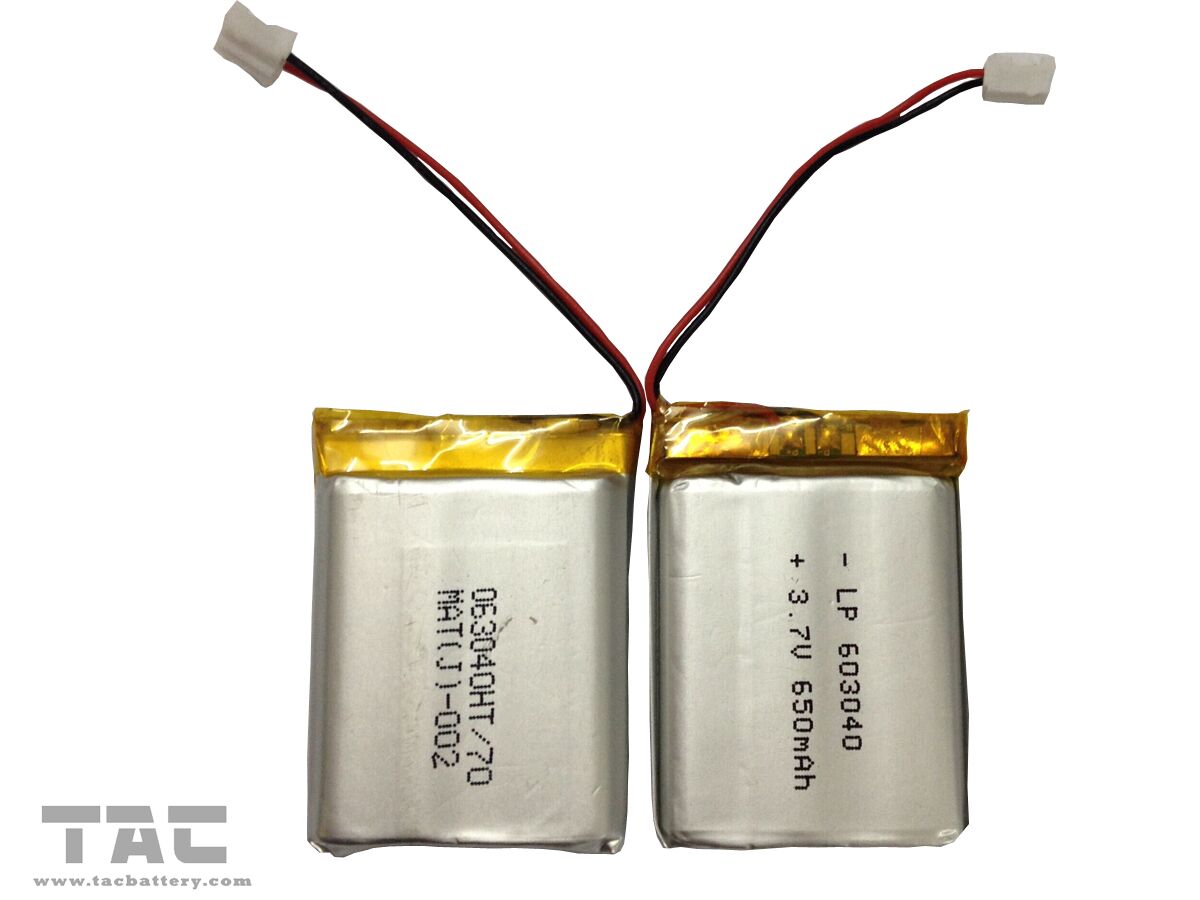

    Lithium Polymer Battery Picture


    Packing Manner for Lithium Polymer Battery

    The battery were protected by transparent plastic tray, 10-20 pcs for one tray depend on the size small or big.

    Similar Model Pictures
