    Super Resistance of High Temperature Electric Bike Battery Pack

    Ask Lasest Price
    Brand Name : TAC
    Model Number : 24/36V
    Price : Price negotiable
    Payment Terms : L/C T/T pay pal
    Supply Ability : 1000 set /month
    Certification : UL CE for single cell
    Delivery Time : 10 days after order confirm
    • Product Details
    • Company Profile

    Super Resistance of High Temperature Electric Bike Battery Pack

    Super Resistance of High Temperature Electric Bike Battery Pack

    Standard Model 36V 10AH Quick Detail:


    Model Number:36V 10AHBrand Name:TAC
    Nominal Voltage:36VRated Capacity:10AH
    Type:Lithium BatterySize:H420:D110mm
    Weight:3.5kgCertification:UL,ROHS
    OEM & ODM:SupportWarranty:12months

    Features:


    1. IFR18650 10S4P Lithium Rechargeable Battery Pack 36V 10AH

    2. Long life, large capacity and good shock resistance

    3. Low self-discharge and good discharge performance at low temperature

    4. Strong charging acceptance and quick-charging capability

    5. Strong over-discharge resistance and charge retention

    6. Maintenance-free and no acid or water for maintenance in usage

    7. High temperature performance

    8. Environmental friendly

    9. Lighter weight smaller size

    10. Most safe no explosion no fire

    11. MOQ: 50set


    Packaging & Delivery


    Packaging Details:

    1 Set battery pack protect by specially pallet

    and then put into standard export carton

    Delivery Detail:

    10-20 days after receiving your deposit

    30 days for OEM order



    IFR18650 10S4P Lithium Rechargeable Battery Pack 36V 10AH Specification:


    No.ItemGeneral ParameterRemark
    1Rated Capacity10AhStandard discharge(0.2C5)after standard charge(0.2C5)
    2Minimal Capacity9.5Ah
    3Nominal Voltage36.0V
    4Cycle LifeResidual capacity is more than 60% of the rated capacity

    Charge: CC@0.2C to 42.0V, then CV till current to 0.05 C5

    Rest: 30min.

    Discharge: 0.2 C5 to 30.0V

    Temperature:20±5℃

    Carry out 500 cycles

    5Discharge cut-off voltage30.0V30.0V (recommended)
    6Charging cut-off voltage42.0V42.0V (recommended)
    7Assembly methodINR18650EC-2.2AH10S4P
    8Housing materialAluminium alloy &ABS+PC
    9Standard charge0.2 C5 constant current (CC) charge to 42.0V,then constant voltage (CC)42.0V charge till charge current decline to ≤0.05 C5Charge time : Approx 7.0h

    Charge and Discharge Performance

    10Standard discharge

    Constant current 0.2 C5

    Cut-off voltage 30.0V

    11Maximum Charge Current4.5A2A recommended for better performance and life
    12Continuous Discharge Current7.0AOver current 50±10A (5ms~20ms)
    13Operation Temperature RangeCharge: 0~55℃

    60±25%R.H.


    Discharge: -10~60℃
    14Storage Temperature RangeLess than 1 year : 0~25℃

    60±25%R.H.

    at the shipment state

    Less than 3 months:-5~35℃
    15Approx. WeightApprox 3.5Kg
    16DimensionHeight: Approx 420.0mm
    Diameter: Approx 11.0 mm
    17Short Circuit ProtectionWill recover after recharge

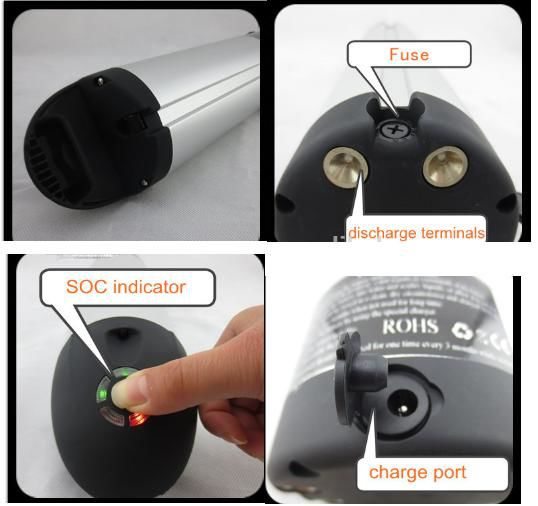

    Picture Show Figure:


    Super Resistance of High Temperature Electric Bike Battery Pack

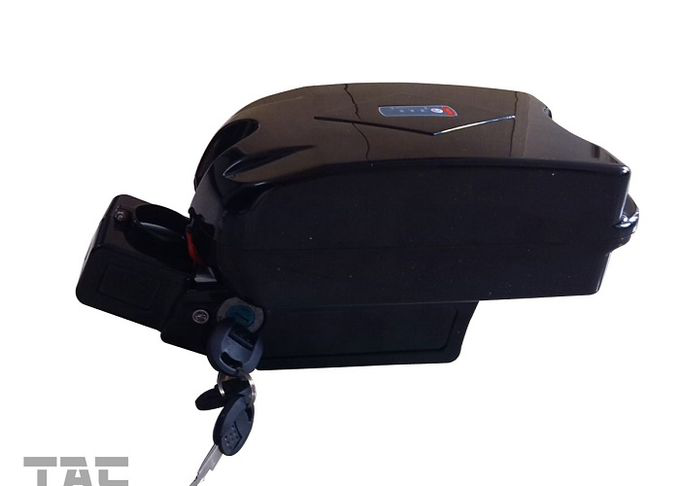

    Similar Production of E-Bike Battery


    Super Resistance of High Temperature Electric Bike Battery Pack


    Super Resistance of High Temperature Electric Bike Battery Pack


    In Order to meet your cost limit , we can made the battery pack by two type material , lithium-ion and lifepo4 cell for the same size.


    Super Resistance of High Temperature Electric Bike Battery Pack


    Capacity-type lithium iron phosphate battery


    * It has super long life, the cycle life is more than 2000 times.


    * It has super resistance of high temperature, the discharge efficiency is high to 100% at 70 Degrees Celsius.


    * The ration of function to price is battery than nickel-metal hydride battery, volume is less for 20%, weight is less for 30%.

    But the output power is higher for 30%.


    * It is no memory effect, no matter at what charged condition, can be charged at all time, predischarge is not needed before

    charge.


    * It is green, harmless to environment. It does not contain any heavy and rare metals. Not only at manufacturing process,

    but also in the use, there is not any pollution at all.


    * It is safe in the use. The applied lithium iron phosphate material is total input from USA, overcome the badly safety problem

    of lithium ion battery, even at worst condition it is not explode at all


    Capacity polymer Li-ion battery


    1. Light weight, high capacity, low inner resistance, good discharge performance.


    2. High energy density, no memory effect, no pollution, has good plastic style.


    3. Use polymer material, cell no explode, no burn, applied range is wide.


    E-book , Electric wheelchair, Segway


    Type

    LiFePO4 battery

    Capacity

    10AH TO 60AH

    Voltage

    12V, 24V, 36V, 48V

    Size

    customized

    Car Make

    e-bike, e-scooter, e-motor

    OE NO.

    As your requests

    Place of Origin

    Guangdong, China (Mainland)

    Brand Name

    TAC

    Model Number

    12V, 18V, 24V, 36V, 48V

    material

    lifepo4
