800mAh 3.0V CR15270 800mAh Li-MnO2 Primary Lithium Battery
Specification for 800mAh 3.0V CR15270 800mAh Li-MnO2 Primary
Lithium Battery
No. | Items | Specification |
1 | Nominal Voltage | 3.0 V |
2 | Internal Impedance | 400 mΩ |
3 | Rated Capacity | 800 mAh with 100 ohm load |
4 | Minimal capacity | 750 mAh with 100 ohm load |
5 | Max. Discharge Current | 1000 mA continuous |
|
| 2500 mA pulse |
6 | Discharge Cut-off Voltage | 2.0 V |
7 | Weight | Approx. 11 g |
8 | Dimensions | Diameter: 15.1±0.2 mm |
Height: 26.7±0.3 mm |
9 | Operating Temp. | -20 ℃to 60 ℃ |
10 | Storage Temp. ＜1 year | -10 ℃to 40 ℃ |
11 | Storage Temp. ＜3 months | -20 ℃to 60 ℃ |
Features:
1. High energy density
2. High open circuit voltage
3. Wide range of operating temperature
4. Stable operating voltage and current
5. Long operating time
6. Low self-discharge rate (less than 2% per year at 20°C).
Main Applications :
1. Utility meter (water, electricity, gas meter,AMR)
2. Alarm or security equipment (smoke alarm system, detector)
3. GPS tracking
4. Teal time clock
5. Digital control machine
6. Military
7. Remote monitoring systems
8. Car electronics
9. Camera
... ...

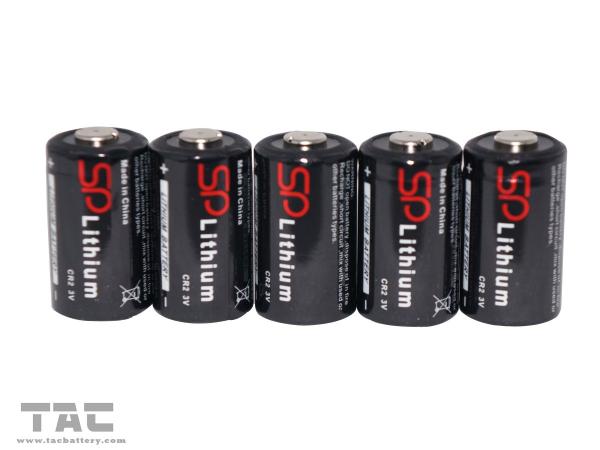

Picture &Drawing:
800mAh 3.0V / CR15270 / 800mAh Li-MnO2 Primary Lithium Battery
Available Model for the LIFePO4 Button Cell:
- CR123A, CR2, CRV3, CR14500,CR9V, 2CR5, CRP2, CR1/3N etc.
Battery operation instruction
Discharging current
The discharging current does not have to surpass this specification
book stipulation the biggest discharging current, the over sized
electric current electric discharge can cause the battery capacity
play to reduce and to cause the battery heat.
Electric discharge temperature
The battery discharge must carry on in the ambient temperature
scope which this specification book stipulated.
Storing the Batteries
The battery should store in the product specification book
stipulation temperature range. If has surpasses above for six
months the long time storage, the discharge capacity will decrease
sharply.
Period of Warranty
Because batteries utilize a chemical reaction, battery performance
will deteriorate over time even if stored for a long period of time
without being used. In addition, if the various usage conditions
such as discharge, ambient temperature, are not maintained within
the specified ranges the life expectancy of the battery may be
shortened or the device in which the battery is used may be damaged
by electrolyte leakage. Please change the battery in time.
