Non-rechargeable 3.0V CR123A 1300mAh Li-Mn Battery for digital
control machine
1. The model name is CR123A,also call CR17335.
2. We can solder the wire and the connector on it
3. High capacity and the low self-discharge
Place of Origin: | Guangdong China (Mainland) |
Brand Name: | TAC |
Model Name: | 3.0V CR123A 1300mAh Li/MnO2 Primary Lithium Battery |
Other Name: | CR123A |
Nominal Voltage | 3.2V |
Nominal Capacity: | 1300mAh |
Size: | 16.7(D)*34.2(H))mm |
Specification:
No. | Items | Specification |
1 | Nominal Voltage | 3.0 V |
2 | Rated Capacity | 1300 mAh with 100 ohm load |
3 | Minimal capacity | 1300 mAh with 100 ohm load |
4 | Max. Discharge Current | 1500 mA continuous |
|
| 3000 mA pulse |
5 | Discharge Cut-off Voltage | 2.0 V |
6 | Weight | Approx. 16 g |
7
8 | Dimensions | Diameter: 16.7±0.3 mm |
Height: 34.2±0.3 mm |
| Operating Temp. | -20 ℃to 60 ℃ |
9 | Storage Temp. ＜1 year | -10 ℃to 40 ℃ |
10 | Storage Temp. ＜3 months | -20 ℃to 60 ℃ |
11 | Note:Poly-switch(PTC:144)is inside the cell. |
Features:
1. High energy density
2. High open circuit voltage
3. Wide range of operating temperature
4. Stable operating voltage and current
5. Long operating time
6. Low self-discharge rate (less than 2% per year at 20°C).
Main Applications :
1. Utility meter (water, electricity, gas meter,AMR)
2. Alarm or security equipment (smoke alarm system, detector)
3. GPS tracking
4. Teal time clock
5. Digital control machine
6. Military
7. Remote monitoring systems
8. Car electronics
9. Camera

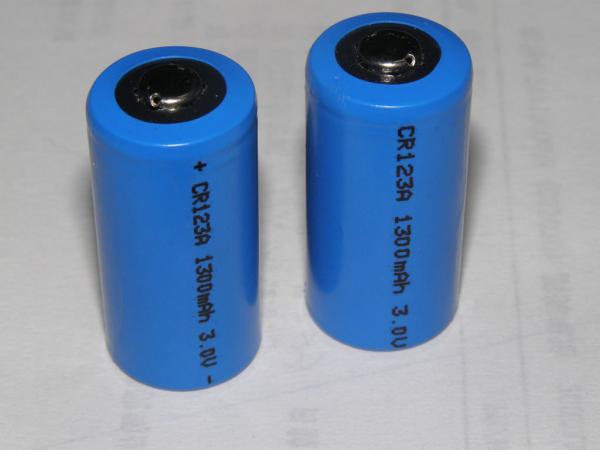

Picture &Drawing:
Non-rechargeable 3.0V CR123A 1300mAh Li-Mn Battery for digital
control machine
Available Model for the LIFePO4 Button Cell:
- CR123A, CR2, CRV3, CR14500,CR9V, 2CR5, CRP2 etc.
Cautions in use
To ensure proper use of the battery please read the manual
carefully before using it.
. Handling
- Do not expose to, dispose of the battery in fire.
- Do not put the battery in a charger or equipment with wrong
terminals connected.
- Avoid shorting the battery
- Avoid excessive physical shock or vibration.
- Do not disassemble or deform the battery.
- Do not immerse in water.
- Do not use the battery mixed with other different make, type, or
model batteries.
- Keep out of the reach of children.
. Storage
- Store the battery in a cool, dry and well-ventilated area.
. Disposal
- Regulations vary for different countries.
- Dispose of in accordance with local regulations.
Battery operation instruction
Discharging current
The discharging current does not have to surpass this specification
book stipulation the biggest discharging current, the oversized
electric current electric discharge can cause the battery capacity
play to reduce and to cause the battery heat.
Electric discharge temperature
The battery discharge must carry on in the ambient temperature
scope which this specification book stipulated.
The battery should store in the product specification book
stipulation temperature range. If has surpasses above for six
months the long time storage, the discharge capacity will decrease
sharply.
Period of Warranty
Because batteries utilize a chemical reaction, battery performance
will deteriorate over time even if stored for a long period of time
without being used. In addition, if the various usage conditions
such as discharge, ambient temperature, are not maintained within
the specified ranges the life expectancy of the battery may be
shortened or the device in which the battery is used may be damaged
by electrolyte leakage. Please change the battery in time.
