3.6V Energizer Lithium Battery ER14250 1200mAh for Digital Control
Machine
Features for 3.6V Energizer Lithium Battery ER14250 1200mAh for
Digital Control Machine
1. High energy density
2. High open circuit voltage
3. Wide range of operating temperature
4. Stable operating voltage and current
5. Long operating time
6. Low self-discharge rate (less than 2% per year at 20°C).
Specification for 3.6V Energizer Lithium battery ER14250 1200mAh
for Digital control machine
No. | Item | General Parameter | Remark |
1 | Rated Capacity | 1200mAh | Discharge to 2.0V 2mA (2mA2.0V) |
2 | Nominal Voltage | 3.6V | Mean Operation Voltage |
3 | Voltage at end of Discharge | 2.0V | Discharge Cut-off Voltage |
4 | Max dimension |
φ14.5mm×H25.5mm |
|
5 | Max weight | 10g |
|
4 | Standard discharge | Discharge to 2.0V 0.5mA |
|
5 | Max constant discharge current | 35mA |
|
6 | Max. pulse current | 100mA |
|
7 | Ambient temperature range | -55~ +85℃ |
|
8 | Storage life | ≥10 year | Yearly self-discharge ≤ 1% |
Main Applications :
3.6V Energizer Lithium battery ER14250 1200mAh for Digital control
machine
1. Utility meter (water, electricity, gas meter,AMR)
2. Alarm or security equipment (smoke alarm system, detector)
3. GPS tracking
4. Teal time clock
5. Digital control machine
6. Military
7. Remote monitoring systems
8. Car electronics
9. Camera

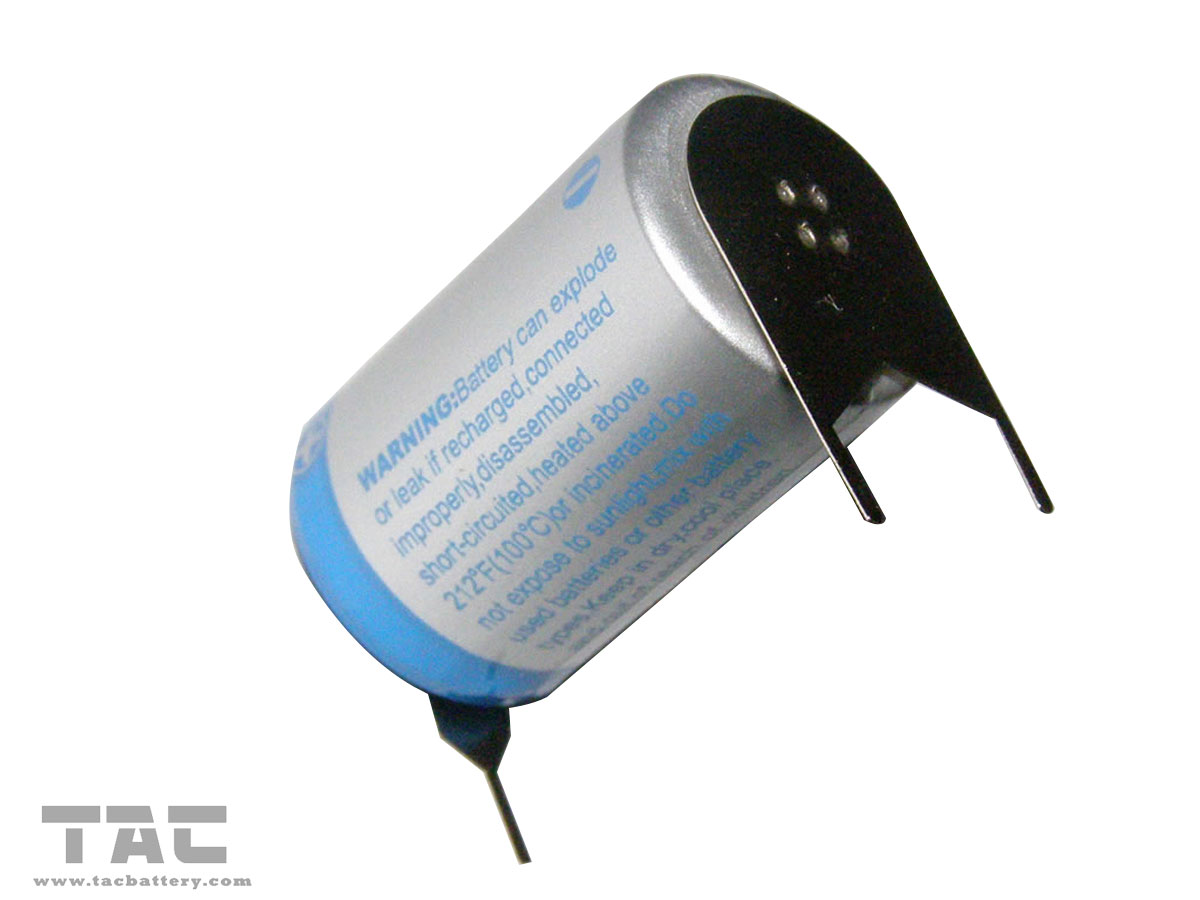

Picture &Drawing:
3.6V Energizer Lithium battery ER14250 1200mAh for Digital control
machine
Battery Pack With Tag
3.6V Energizer Lithium battery ER14250 1200mAh for Digital control
machine
We can weld the tabs or wire on the pole if you like
Packing Detail for 3.6V Energizer Lithium battery ER14250 1200mAh
for Digital control machine
The battery put into customized sponge plastic tray avoid short
circle.
Available Model for the Cell:
- ER18505, ER14335, ER14505, ER34615 etc. Pls check below detail
production list
WE CAN ALSO SUPPLY:
NIMH BATTERY(PACK / with tags / cables / connectors )
Li-ion Battery single cell and battery packs--cylindrical types &
Polymer types (3.7V per cell)
LiFePO4 Battery single cell and battery packs -- cylindrical types
& Polymer types (3.2V per cell)
Primary Lithium Battery CR ER LFB (3.0V LiMnO2 battery & 1.5V
LiFeS2 battery)
Portabl power banks, power storage battery system, torches and
lamps, etc.
Storage Standard
Cells should be stored in a clean&dry(less than 30% RH) area
Temp. should not exceed +30°C
According to the characteristics of the lithium sub-battery, after
a long period of storage, the battery is prone to passivation.
Please activate it before use. The activation method is:
short-circuit the battery , connect the positive and negative
electrodes with a thin iron wire for 3 to 5 seconds .
