Rechargeable CR2 IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems

    Buy cheap Rechargeable CR2 IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems from wholesalers

    Buy cheap Rechargeable CR2 IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems from wholesalers
    • Buy cheap Rechargeable CR2 IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems from wholesalers
    • Buy cheap Rechargeable CR2 IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems from wholesalers
    • Buy cheap Rechargeable CR2 IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems from wholesalers
    • Buy cheap Rechargeable CR2 IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems from wholesalers
    • Buy cheap Rechargeable CR2 IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems from wholesalers
    • Buy cheap Rechargeable CR2 IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems from wholesalers

    Rechargeable CR2 IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems

    Ask Lasest Price
    Brand Name : TAC OEM ODM
    Model Number : PIFC0030
    Delivery Time : 7 days for single cell 15-20 days for battery pack
    Payment Terms : T/T
    Certification : MSDS REACH ROHS
    Price : usd 1.0
    Supply Ability : 50000 pack for one week
    • Product Details
    • Company Profile

    Rechargeable CR2 IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems

    Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems


    Feature for Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems


    Generally speaking, 3.0V CR2 is not rechargeable,but IFR15270/CR2(Lithium Iron phosphate battery) is rechargeable,
    So we always use IFR15270 replace of CR2.


    1. High energy density then mormal lithium-ion battery
    2. High open circuit voltage, 3.2V-3.65V
    3. Wide range of operating temperature 0-60 degree
    4. Stable operating voltage and current
    5. Long operating time 2000 times
    6. Low self-discharge rate (less than 2% per year at 20°C).



    Specification for Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote Monitoring Systems

    No.

    Item

    General Parameter

    Remark

    1

    Rated Capacity

    Typical

    200mAh

    Standard discharge(0.2 C5A) after Standard charge

    Minimum

    190mAh

    2

    Nominal Voltage

    3.2V

    Mean Operation Voltage

    3

    Voltage at end of
    Discharge

    2.0V

    Discharge Cut-off Voltage

    4

    Charging Voltage

    3.65V


    5

    Internal Impedance

    ≤150mΩ

    Internal resistance measured at AC 1KHZ after 50% charge
    The measure must uses the new batteries that within one week after shipment and cycles less than 5 times

    6

    Standard charge

    Constant Current 0.2C5A
    Constant Voltage 3.65V
    0.01 C5A cut-off


    7

    Standard discharge

    Constant current 0.2 C5A
    end voltage 2.0V


    Circle Life Test Standard

    8

    Fast charge

    Constant Current 1C5A
    Constant Voltage 3.65V
    0.01 C5A cut-off


    9

    Fast discharge

    Constant current 1 C5A
    end voltage 2.0V


    10

    Maximum Continuous Charge Current

    1 C5A


    11

    Maximum Continuous Discharge Current

    1.5C5A


    12

    Operation Temperature Range

    Charge: 0~45℃

    60±25%R.H.
    Bare Cell

    Discharge: -10~60℃

    13

    Storage Temperature Range

    Less than 1 year: -20~25℃

    60±25%R.H.
    at the shipment state

    less than 3 months: -20~40℃

    Less than 7 day : -20~65℃

    14

    Cell Dimension

    High: 27.0±0.5 mm

    Initial Dimension

    Diameter:15.0±0.5 mm


    Main Applications :


    1. Utility meter (water, electricity, gas meter, AMR)
    2. Alarm or security equipment (smoke alarm system, detector)
    3. GPS tracking
    4. Teal time clock
    5. Digital control machine
    6. Military
    7. Remote monitoring systems
    8. Car electronics
    9. Camera
    ... ...

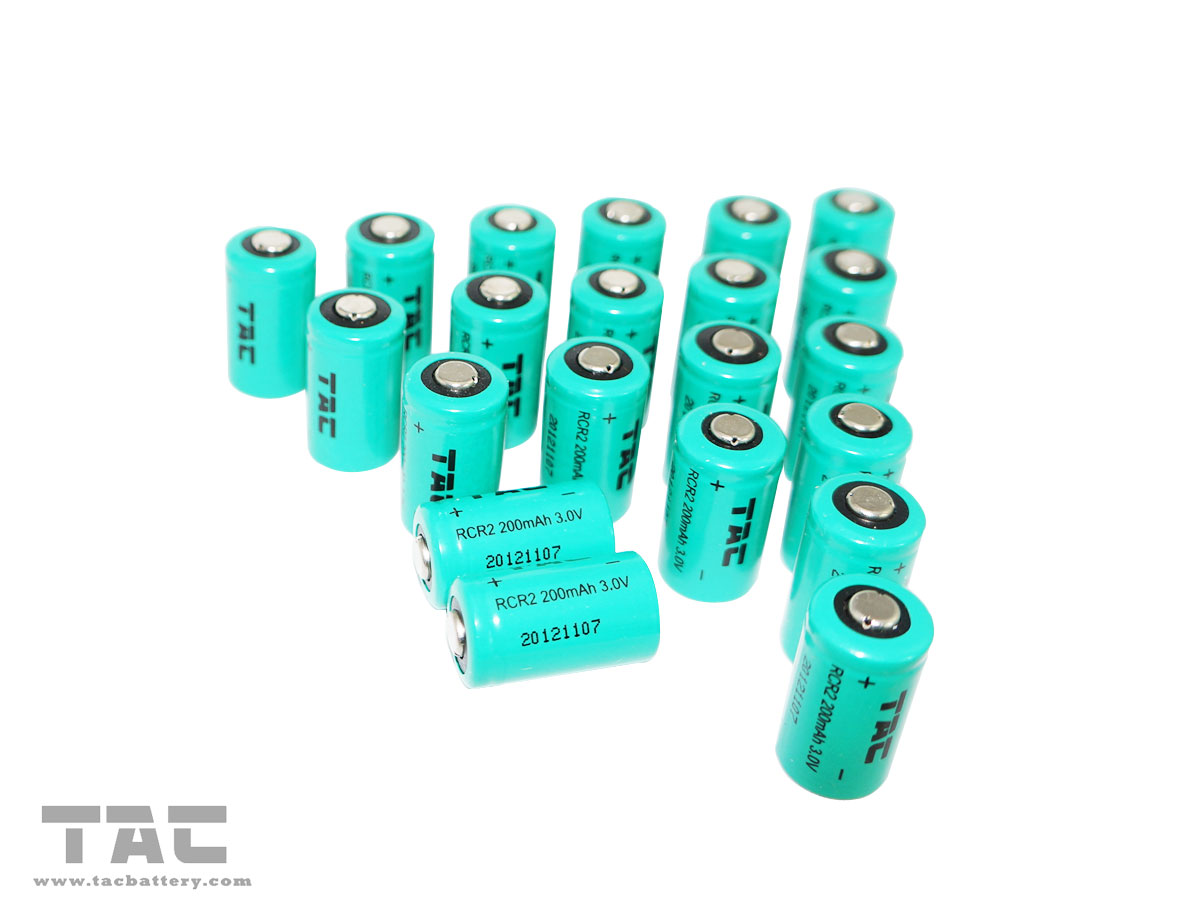

    Picture &Drawing:
    Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote monitoring systems


    Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote monitoring systems


    Rechargeable CR2/IFR15270 200mAh 3.0V LiFePO4 Battery for Remote monitoring systems



    Available Model for the LIFePO4 Button Cell:




    Cautions in use


    To ensure proper use of the battery please read the manual carefully before using it.
    . Handling

    • Do not expose to, dispose of the battery in fire.
    • Do not put the battery in a charger or equipment with wrong terminals connected.
    • Avoid shorting the battery
    • Avoid excessive physical shock or vibration.
    • Do not disassemble or deform the battery.
    • Do not immerse in water.
    • Do not use the battery mixed with other different make, type, or model batteries.
    • Keep out of the reach of children.

    . Storage

    • Store the battery in a cool, dry and well-ventilated area.

    . Disposal

    • Regulations vary for different countries.
    • Dispose of in accordance with local regulations.


    Battery operation instruction

    Discharging current

    The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the over sized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.


    Electric discharge temperature

    The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.


    Storing the Batteries

    The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, the discharge capacity will decrease sharply.

    Period of Warranty
    12 months after the batteries were shipped out from factory
