6V LiFePO4 Battery Pack 18650 1100mAh for Electric Toy and Robot
Advantage for 6V LiFePO4 Battery Pack 18650 1100mAh for Electric
Toy and Robot
The battery pack with normal PCB including of spcially NTC the
battery pck was assembled by 18500 3.2v 1100mah 2 pcs in series
100% authentic capacity base on IEC 62133 standard
Deep cycle life about 2000 times. warranty 12 months
Lead Time for 6V LiFePO4 Battery Pack 18650 1100mAh for Electric
Toy and Robot
Cell pack with Blue PVC jacket or OEM brand
Delivery Detail less than 1000pcs, one day after receipt of T/T
1000pcs-10, 000pcs, one week after receipt of T/T
100, 000pcs above, one month after receipt of T/T
Specification for 6V LiFePO4 Battery Pack 18650 1100mAh for Electric Toy and Robot
| Item | General Parameter |
| Rated Capacity | 1.1Ah |
Minimal Rated
Capacity | 1.05Ah |
| Nominal Voltage | 6.4V |
| Cycle Life | Higher than 60% of the Initial Capacity of the Cells |
| Discharge cut-off voltage | 4.6V |
| Charging cut-off voltage | 15.6V |
| Cell and assembly method | IFR18650EC-1.1AH 2s1p |
| Standard discharge | Constant current 0.2C
Cut-off voltage 7.3V |
| Maximum Charge Current | 1A |
| Maximum Discharge Current | 3 A |
| Operation Temperature Range | Charge: 0~45℃ |
| Discharge: -10~50℃ |
| Storage Temperature Range | Less than 1 year : 0~25℃ |
| Less than 3 months:-5~35℃ |
| Weight | Approx: 285g |
| Pack Dimension | High:55.5mm
Width: 28.5mm
Length: 26.5mm
|
Application
The battery pack is design for the tracking device, and can be used
many equipment such as
Lights, model aircraft, miner's lamp, safety helmets, bike
headlights and Bluetooth headsets, e-books, mobile DVD, mobile TV, mobile scales,
handheld computer, positioning devices alsoWireless meter reading, wireless ordering, wireless data
transmitter.

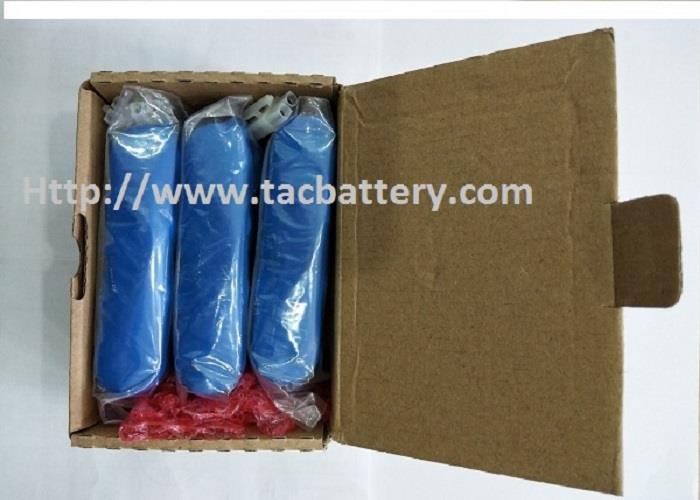

Packing Instruction
The battery pack put into double level transparency sponge bag, 4
sets for each inner paper box and 5-8 box for each standard export
paper carton
with UN label on the outer carton

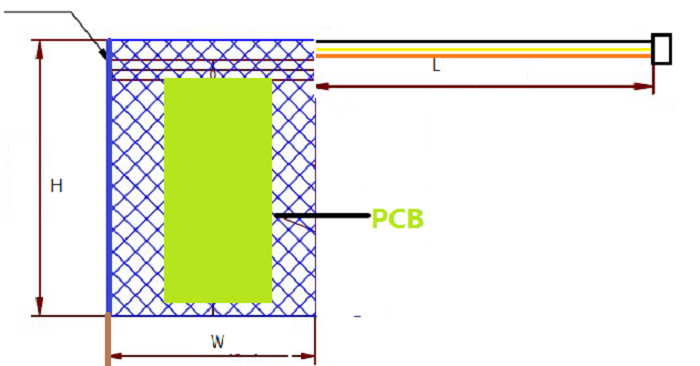

Drawing for for 18650 LiFePO4 Pack For Tracking Device

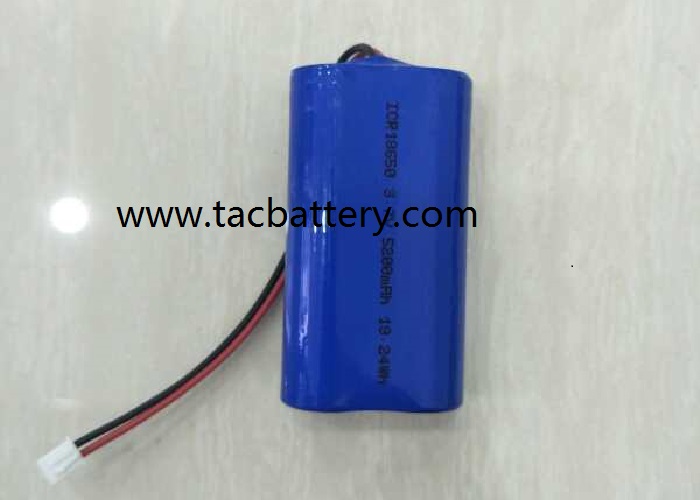

Similar Production Pictures for 6V LiFePO4 Battery Pack 18650 1100mAh for Electric Toy and Robot
Specifications :
CE /MDSD /RoHS /UL approved
ISO 9001:2008 & ISO 14001:2004 applied
Replacement Policy
We provide 1 years warranty from the goods were shipped out from
our factory ,will change new products for you if quality problems.
we will issue the photo before we ship out the cargo and arrange
new cargo if the wrong model
Issue the professional 8D report to explain the reasin and issue
the solution for furture order
The buyer is responsible for all the shipping cost incurred.
