LiFePO4 Battery Square Cell LPF09102165 3.2V 10AH For EV and ESS

    Buy cheap LiFePO4 Battery Square Cell LPF09102165 3.2V 10AH For EV and ESS from wholesalers

    Buy cheap LiFePO4 Battery Square Cell LPF09102165 3.2V 10AH For EV and ESS from wholesalers
    • Buy cheap LiFePO4 Battery Square Cell LPF09102165 3.2V 10AH For EV and ESS from wholesalers
    • Buy cheap LiFePO4 Battery Square Cell LPF09102165 3.2V 10AH For EV and ESS from wholesalers
    • Buy cheap LiFePO4 Battery Square Cell LPF09102165 3.2V 10AH For EV and ESS from wholesalers
    • Buy cheap LiFePO4 Battery Square Cell LPF09102165 3.2V 10AH For EV and ESS from wholesalers

    LiFePO4 Battery Square Cell LPF09102165 3.2V 10AH For EV and ESS

    Ask Lasest Price
    Brand Name : TAC OEM ODM
    Certification : MSDS REACH ROHS
    Model Number : LiFePO4 cells
    Price : usd 2.0 each pcs
    Delivery Time : 7 days for single cell 15-20 days for battery pack
    Payment Terms : T/T
    Supply Ability : 50000 pack for one week
    • Product Details
    • Company Profile

    LiFePO4 Battery Square Cell LPF09102165 3.2V 10AH For EV and ESS

    LiFePO4 Battery Square Cell LPF09102165 3.2V 10AH For EV and ESS


    Feature for LiFePO4 Battery Square Cell LPF09102165 3.2V 10AH For EV and ESS


    1. Super Long Working life: Over 1500cycles, 4 times more than that of lead-acid battery.
    2. For high Temperature: Good working performance under 70℃.
    3. Super safe:under 150℃ for 30 minutes,no fire, no explosion.

    Specification for LiFePO4 Battery Square Cell LPF09102165 3.2V 10AH For EV and ESS

    NO.

    Item

    Specification

    Remark

    1

    Nominal Capacity

    10000mAh

    0.2C, CC(constant current)discharge to 2.0V cut

    off, at 23±3℃

    2

    Nominal Voltage

    3.2V

    　

    3

    Standard Charging Current

    0.2C

    0～45℃0.2CCC(constant current)charged to

    3.6V,then CV(constant voltage 3.6V)charge till

    charge current ≤0.02C

    4

    Max. Charging Current

    1.0C

    　

    5

    Charge Ending Voltage

    3.6V

    　

    6

    Standard Discharging Current

    0.2C

    0.2CCC(con

    constant current)discharged to 2.0V

    7

    Max. Continual Discharging
    Current

    2.0C

    　

    8

    Discharge Ending Voltage

    2.0V

    　

    9

    Standard Charging Time

    5～6h

    　

    10

    Rapid Charging Time

    1～2h

    　

    11

    Production Impedance

    ≤80mΩ

    AC Impedance 1KHz

    12

    Battery Weight

    ≤ 235g

    No include box

    13

    Volumetric Energy

    ～264Wh/l

    　

    14

    Gravimetric Energy

    ～136Wh/Kg

    　


    Specially Packing Detail

    8-10 pcs put in plastic tray, , 10 trays shrink together to avoid short circle and vabration


    Application for LiFePO4 Battery Square Cell


    Solar energy storage,Home wall ,home storage ,E-vehicle products.

    solar street light,wind energy storage ,UPS

    telecommunication power supply, photovoltaic power station

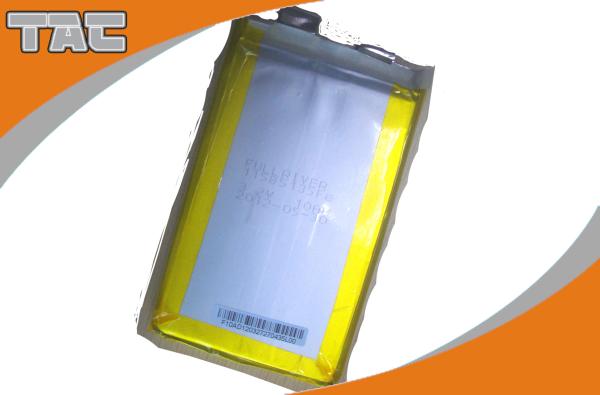

    Piture for Singer Cell


    The single cell were assembled to various battery pack


    More Detail For Lifepo4 Battery

    MODELCAPACITYVOLTAGEmΩ≤TWl
    F7050125TP-290029003.22.46.9450.19126.89
    F8054106SP-300030003.22.37.8853.87104.99
    F706094-300030003.23.56.658.494.58
    F6567102TP-300030003.226.3167.17103.56
    F134295SP-330033003.2212.3242.0596.97
    F9044130TP-330033003.22.28.1644.4130.61
    F7264110TP-350035003.22.27.4164.95112.51
    F7567102TP-350035003.227.2866.86103.06
    F106094TP-360036003.22.29.2359.1894.48
    F8367102TP-370037003.22.07.6567.25103.7
    F9045145TP-400040003.228.7944.73144.83
    F9567102TP-430043003.228.8566.97102.38
    F7075130HP-460046003.236.4773.86130.77
    F1167102TP-500050003.2210.2966.88104.08
    F6884165TP-600060003.226.3683.41166.05
    F76100115HP-600060003.22.57.198.75116.08
    F1257130HP-610061003.22.511.0956.12130.48
    F7284165TP-650065003.22.26.9783.41164.65
    F9570170TP-700070003.22.08.870.49171.62
    F9084165TP-800080003.21.88.4283.37166.38
    F8590150HP-800080003.227.8788.62150.41
    F1284165SP-10000100003.2210.8584.46165.75
    F95130140HP-12000120003.21.88.66129.73140.73
    F65160220-17000170003.22.55.96158.07219.03

    TAC Provide Various ESS UPS With lithium-ion and Lifepo4 single cell
