9.6V LiFePO4 Battery Pack IFR26650 Cylindrical 9.9Ah For EV E-Car

Product Categories

Guang Zhou Sunland New Energy Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	TAC OEM ODM
Certification :	MSDS REACH ROHS
Model Number :	LiFePO4 26650
Price :	usd 10-20
Delivery Time :	7 days for single cell 15-20 days for battery pack
Payment Terms :	TT, LC, Paypal etc
Supply Ability :	50000 pack for one week

Add to Cart

9.6V LiFePO4 Battery Pack IFR 26650 Cylindrical 9.9Ah For EV E-Car

Excellent abuse tolerance and environmentally friendly passed Reach certification
Excellent calendar life 2000times 10X cycle life vs. conventional lithium ion
With greater power and energy density and lower impedance and high consistency
Suitable for a wide variety of applications and system designs.
Proven performance in the toughest conditions, combining durability, reliability, and safety
Offers an excellent combination of price-performance.

No.	Items	Specifications		Remark
1	Nominal Capacity	9900mAh		0.2C Standard discharge
2	Minimum Capacity	9800mAh		0.2C Standard discharge
3	Nominal Voltage	9.6V		Mean Operation Voltage
4	Delivery voltage	7.5V		Within 10 days from Factory
5	Charge Voltage	10.95V±0.03V		By standard charge method
6	Standard charging method	0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C
7	Charge current	0.2C	198mA	Standard charge, charge time about 6h(Ref)
7	Charge current	0.5C	495mA	Rapid Charge, charge time about: 3h(Ref)
8	Standard discharging method	0.2C constant current discharge to2.0V,
9	Cell Internal Impedance	≤30mΩ		Internal resistance measured at AC 1KH_Z after 50% charge

Charge and discharge performance & size

No.	Items	Specifications		Remark
10	Maximum charge current	1C	9900mA	For continuous charging mod
11	Maximum discharge current	2C	19800mA	For continuous discharge mod
12	Operation Temperature and relative humidity Range	Charge	0~45℃ 60±25%R.H.	Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery
12	Operation Temperature and relative humidity Range	Discharge	-20~60℃ 60±25%R.H.
13	Storage temperature for a long time	-20~25℃ 60±25%R.H.		Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months.

10 pcs in one box 5 box in one carton

10-15 days for bulk battery

25-35 days for customized battery pack order

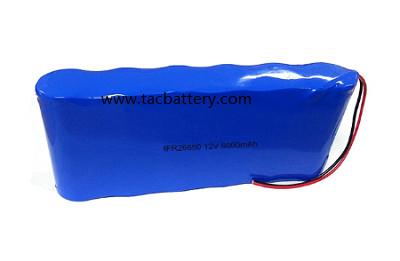

The Lifepo4 Battery Pack Made By 26650 Cell

Made the lifePO4 battery cell follow standard work flow test voltage capacity resistance one by one via Auto machine before shipped out from factory
