Lithium battery 3.2V IFR32650 5Ah Rechargeable Battery for Home
Wall
Speification for 3v Lithium battery Stable 3.2V IFR32650, 5Ah
Rechargeable Battery
No.
| Item
| General Parameter
| Remark
|
| 1 | Rated Capacity
| Typical
| 5000mAh | Standard discharge(0.2C5A) after Standard charge
|
Minimum
| 4900mAh |
| 2 | Nominal Voltage
| 3.2V | Mean Operation Voltage
|
| 3 | Voltage at end of Discharge
| 2.0V | Discharge Cut-off Voltage
|
| 4 | Charging Voltage
| 3.65V | |
| 5 | Internal Impedance
| ≤50mΩ | Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after
shipment and cycles less than 5 times
|
| 6 | Standard charge
| Constant Current 0.2C5A Constant Voltage 3.65V 0.01 C5A cut-off
| |
| 7 | Standard discharge
| Constant current 0.2C5A end voltage 2.0V
| |
Charger and Discharger Performance
No.
| Item
| General Parameter
| Remark
|
| 8 | Fast charge
| Constant Current 0.5C5A Constant Voltage 3.65V 0.01 C5A cut-off
| |
| 9 | Fast discharge
| Constant current 1.0C5A end voltage 2.0V
| |
| 10 | Maximum Continuous Charge Current
| 1.0 C5A | |
| 11 | Maximum Continuous Discharge Current
| 1.5 C5A | |
| 12 | Operation Temperature Range
| Charge: 0~45℃ | 60±25%R.H. Bare Cell
|
| Discharge: -10~60℃ |
| 13 | Storage Temperature Range
| Less than 1 year: -20~25℃
| 60±25%R.H. at the shipment state
|
less than 3 months: -20~40℃
|
Less than 7 day : -20~65℃
|
| 14 | Cell Dimension
| High/:65±0.5 mm | Initial Dimension
|
| Diameter/: 31.5±0.5 mm |
Drawing for Battery Cell
Application for Lithium battery 3.2V IFR32650 5Ah Rechargeable Battery for Home
Wall
1. Utility meter (water, electricity, gas meter, AMR)
2. Alarm or security equipment (smoke alarm system, detector)
3. GPS tracking
4. Teal time clock
5. Digital control machine
6. Military
7. Remote monitoring systems
8. Car electronics
9. Camera
Packing
10 pcs in one inner box or customized

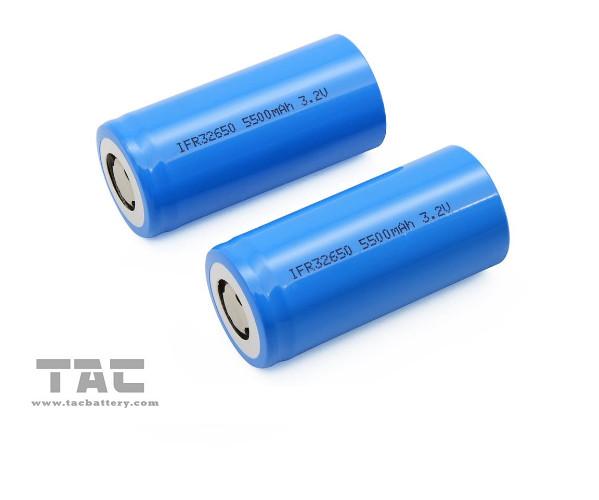

Single Cell Pictures
Delivery
7-10 days for bulk battery
25-35 days for battery pack
Feature
1. High energy density
2. High open circuit voltage
3. Wide range of operating temperature
4. Stable operating voltag d current
5. Long operating time
6. Low self-discharge rate (less than 2% per year at 20°C).
Cautions in use
To ensure proper use of the battery please read the manual
carefully before using it.
. Handling
- Do not expose to, dispose of the battery in fire.
- Do not put the battery in a charger or equipment with wrong
terminals connected.
- Avoid shorting the battery
- Avoid excessive physical shock or vibration.
- Do not disassemble or deform the battery.
- Do not immerse in water.
- Do not use the battery mixed with other different make, type, or
model batteries.
- Keep out of the reach of children.
. Storage
- Store the battery in a cool, dry and well-ventilated area.
. Disposal
- Regulations vary for different countries.
- Dispose of in accordance with local regulations.
Period of Warranty
Because batteries utilize a chemical reaction, battery performance
will deteriorate over time even if stored for a long period of time
without being used. In addition, if the various usage conditions
such as discharge, ambient temperature, are not maintained within
the specified ranges the life expectancy of the battery may be
shortened or the device in which the battery is used may be damaged
by electrolyte leakage. Please change the battery in time.
