Waterproof Lithium LiSOCl2 Battery 3.6V ER18505 100 MA

Ask Lasest Price
Brand Name :	TAC
Certification :	REACH MSDS
Model Number :	PERC0292
Price :	usd 5.0
Delivery Time :	7-25 days after order confirm
Payment Terms :	TT, LC, Paypal, etc
Supply Ability :	10000Piece/days

Add to Cart

Product Details
Company Profile

Waterproof Lithium LiSOCl2 Battery 3.6V ER18505 100 MA

Waterproof Lithium LiSOCl2 Battery 3.6V ER18505 100 MA

Quick Detail for Waterproof Lithium LiSOCl2 Battery 3.6V ER18505 100 MA

1. The material of the battery is waterproof with customer require
2. The Model Name is 3.6V ER18505/18500/A;
2. Max constant discharge current : 100mA
3. Storage life: yearly self-discharge ≤ 1%
4. Application for all kinds of meter.alarm equipment

Specification for Waterproof Lithium LiSOCl2 Battery 3.6V ER18505 100 MA

No.	Item	General Parameter	Remark
1	Rated Capacity	3600mAh	Discharge to 2.0V 2mA (2mA2.0V)
2	Nominal Voltage	3.6V	Mean Operation Voltage
3	Voltage at end of Discharge	2.0V	Discharge Cut-off Voltage
4	Max dimension	φ19mm×H51mm
5	Max weight	33g
4	Standard discharge	Discharge to 2.0V 2mA
5	Max constant discharge current	100mA
6	Max. pulse current	200mA
7	Ambient temperature range	-55~ +85℃
8	Storage life	≥10 year	Yearly self-discharge ≤ 1%

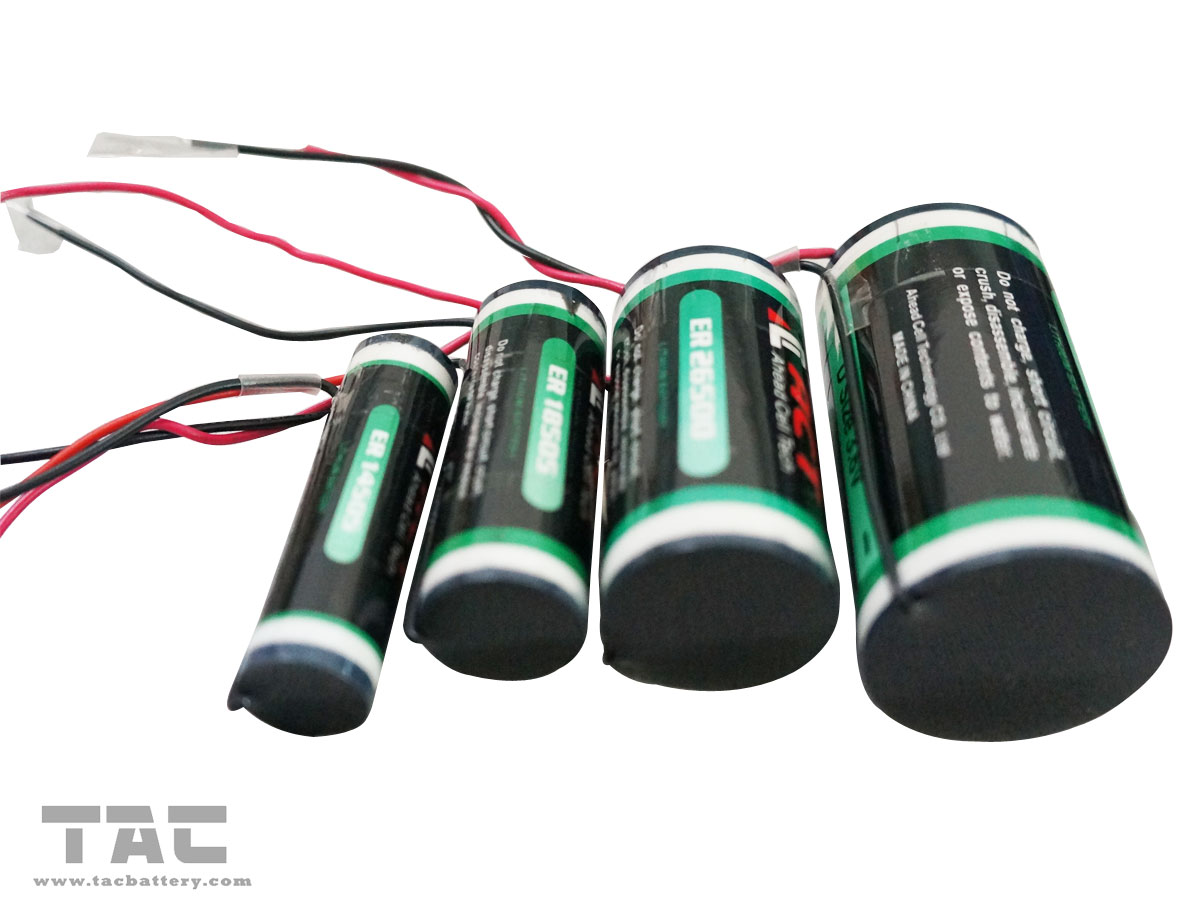

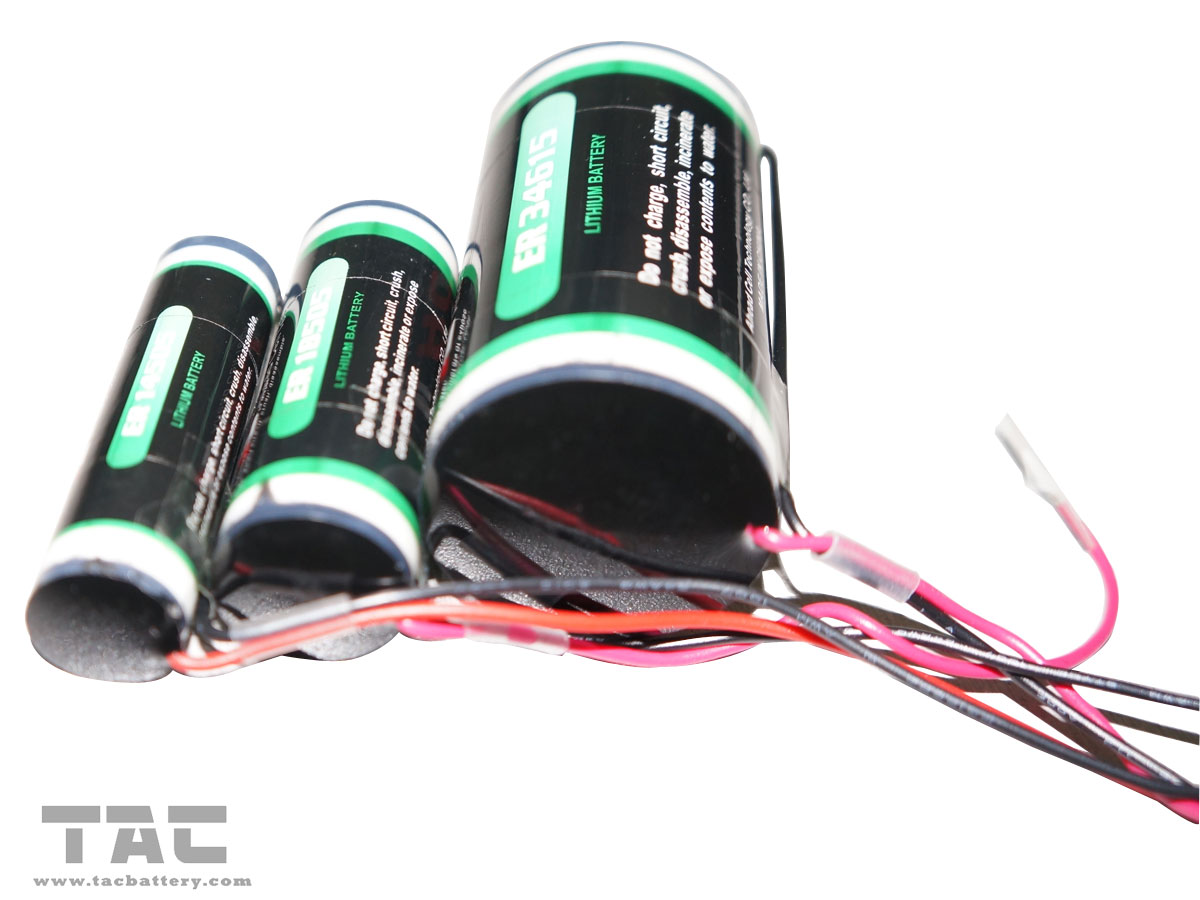

Pictures:

Energizer non-rechargeable 3.6V/A LiSOCL2 Lithium Batteries With Waterproof

Energizer non-rechargeable 3.6V/A LiSOCL2 Lithium Batteries With Waterproof

Mechanical characteristics and Safety Test

No.

Items

Test Method and Condition

Criteria

Vibration Test

Fixed the cell to vibration table and subjected to vibration cycling that the frequency is to be varied at the rate of 1Hz per minute between 10Hz an 55Hz, the excursion of the vibration is 1.6mm. The cell shall be vibrated for 30 minutes per axis of XYZ axes.

No leakage

no weight loss

no short circuit

No fire

No explosion,

Altitude

Simulation Test

The batteries should be stored at the pressure of 11.6 KPa or less for at least six hours at ambient temperature 23 ±2 ℃.

No leakage

no weight loss

no short circuit

No fire

No explosion,

Packing for Non-rechargeable Lithium Battery ER18505 3600mAh for Instrument

Blue pvc jacket with printing ,also support OEM jacket

specially sponge pallet to fix the battery one by one

7 level strong paper for standard export carton

Transportation:

－The Batteries should be stored away from solarization, fire, rain, water, and never put together

with corrosive during transportation.

－Vibration and shock during transportation and load-and-unload should be restrict to a minimum level.

－The height should not exceed 1.5m for cardboard packages.

－The batteries if transported by sea should be stored away from ship engines during prolonged transit,

and not left for long periods in unventilated environment during summer.

.Storage

－The batteries should be stored at 10℃～25℃(never exceed 30℃), 45%~75%RH.

－The batteries should not be stored next to heat sources nor in direct sunlight. The storage area should be clean,cool,dry,ventilated and weatherproof.

－The height to which batteries may be stacked is clearly dependent on the strength of the packaging.

As a general rule,this height should not exceed 1.5m for cardboard packages nor 3m for wooden cases.

－Store and display batteries in their original package. The batteries may be short-circuited or damaged if been unpacked and stacked mussily.

HK TAC offer Specially Performance ER battery involve high temperature and High Power Cell and Pack
