Non-rechargeable 3.0V CR123A 1300mah Li-Mn Battery with wire
Li-Mn Battery
1,3.0V
2,1300mAh
3,CR123A
4,for GPS tracking
Features:
1. The battery with wire
2. High open circuit voltage: 3.0v
3. Wide range of operating temperature
4. Stable operating voltage and current
5. Long operating time 5 year
6. Low self-discharge rate (less than 2% per year at 20°C).
Quick Detail:
Place of Origin: | Guangdong China (Mainland) |
Brand Name: | TAC |
Model Name: | 3.0V CR123A |
Other Name: | CR123A |
Nominal Voltage | 3.0V |
Nominal Capacity: | 1300mAh |
Size: | 16.7(D)*34.2(H))mm |
Weight: | 16g |
Packing & Delivery:
MOQ: | 1000pcs |
Packing: | Bulk Packing: 50 PCs/box, 20box/Carton, total 1000pcs/Carton, carton Size 360*185*220mm |
Delivery Detail: | Sample with stock 3 days after T/T Mass order with stock 7 days after T/T Without stock 45days |
Specification
No. | Items | Specification |
1 | Nominal Voltage | 3.0 V |
2 | Rated Capacity | 1300 mAh with 100 ohm load |
3 | Minimal capacity | 1300 mAh with 100 ohm load |
4 | Max. Discharge Current | 1300 mA continuous |
|
| 2600 mA pulse |
5 | Discharge Cut-off Voltage | 2.0 V |
6 | Weight | Approx. 16 g |
7 8 | Dimensions | Diameter: 16.7±0.3 mm |
Height: 34.2±0.3 mm |
| Operating Temp. | -20 ℃ to 60 ℃ |
9 | Storage Temp. ＜1 year | -10 ℃ to 40 ℃ |
10 | Storage Temp. ＜3 months | -20 ℃ to 60 ℃ |
11 | Note:Poly-switch(PTC:144)is inside the cell. |
Main Applications :
1. Utility meter (water, electricity, gas meter,AMR)
2. Alarm or security equipment (smoke alarm system, detector)
3. GPS tracking
4. Teal time clock
5. Digital control machine
6. Military
7. Remote monitoring systems
8. Car electronics
9. Camera

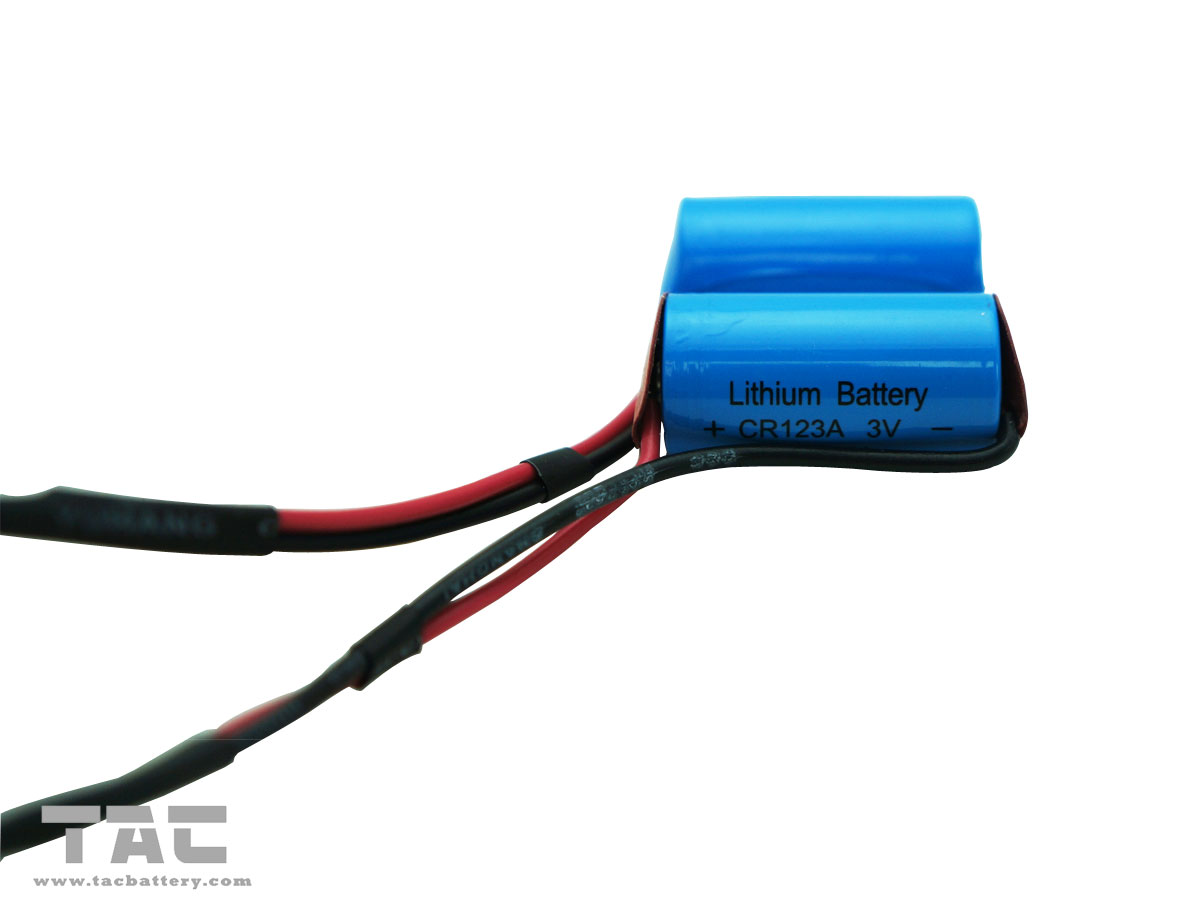

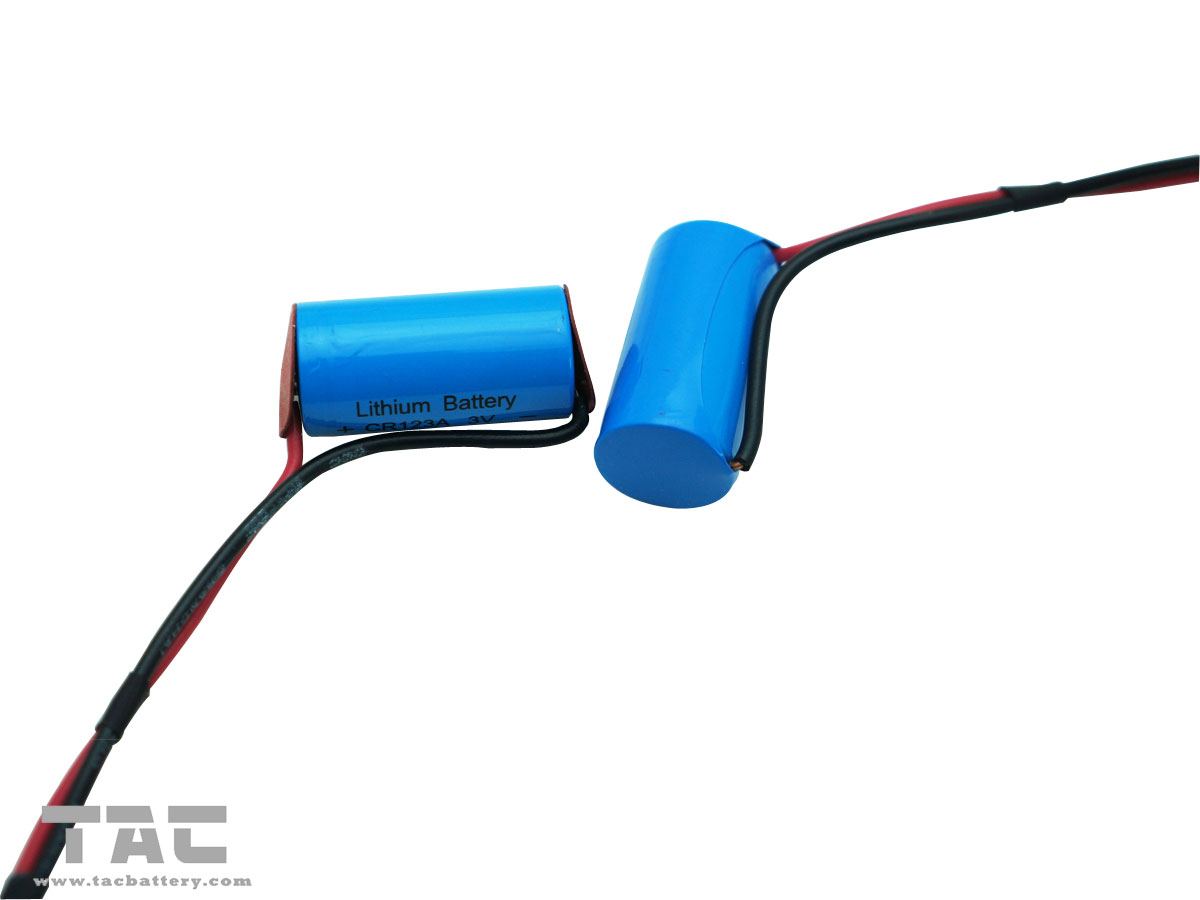

Picture &Drawing:
Non-rechargeable 3.0V CR123A 1300mah Li-Mn Battery with wire
Available Model for the Li-Mn battery Cell:
CR1/3N, 2CR1/3N CR2, CRV3, CR14500,CR9V, 2CR5, CRP2 etc.
Cautions in use
To ensure proper use of the battery please read the manual
carefully before using it.
. Handling
Do not expose to, dispose of the battery in fire.
Do not put the battery in a charger or equipment with wrong
terminals connected.
Avoid shorting the battery
Avoid excessive physical shock or vibration.
Do not disassemble or deform the battery.
Do not immerse in water.
Do not use the battery mixed with other different make, type, or
model batteries.
Keep out of the reach of children.
. Storage
. Disposal
Battery operation instruction
Discharging current
The discharging current does not have to surpass this specification
book stipulation the biggest discharging current, the oversized
electric current electric discharge can cause the battery capacity
play to reduce and to cause the battery heat.
Electric discharge temperature
The battery discharge must carry on in the ambient temperature
scope which this specification book stipulated.
Storing the Batteries
The battery should store in the product specification book
stipulation temperature range. If has surpasses above for six
months the long time storage, the discharge capacity will decrease
sharply.
Period of Warranty
Because batteries utilize a chemical reaction, battery performance
will deteriorate over time even if stored for a long period of time
without being used. In addition, if the various usage conditions
such as discharge, ambient temperature, are not maintained within
the specified ranges the life expectancy of the battery may be
shortened or the device in which the battery is used may be damaged
by electrolyte leakage. Please change the battery in time.
Two options for same size ,one is non-rechargeable , the other is
rechargeable cell , similar as below
CR123A 800MAH 3.0V Non-rechargeable
LIR17335 750MAH 3.7V rechargeable
