3.7V LIR68500 / LIR68430 E-cig Big Battery For Ego Ce4 Kit 110mAh ROHS Approved

Ask Lasest Price
Brand Name :	TAC
Certification :	UL/ROHS/UL
Model Number :	LIR68340-3.7-110mAh
Price :	Price Negotiable
Delivery Time :	15 days
Payment Terms :	Paypal/TT/UL
Supply Ability :	10000000pcs/month

Add to Cart

Product Details
Company Profile

3.7V LIR68500 / LIR68430 E-cig Big Battery For Ego Ce4 Kit 110mAh ROHS Approved

3.7V LIR68500 / LIR68430 E-cig Big Battery For Ego Ce4 Kit 110mAh ROHS Approved

1. The model name is 3.7V LIR68430 110mAh.
2. CE, ROHS Certification
3. There are LIR13600, LIR13700, LIR13450, LIR68430, LIR68500 available.
4. High quality and the good price

Specification:

No.	Item	General Parameter		Remark
1	Rated Capacity	Typical	110mAh	Standard discharge0.2C(20mA) after Standard charge
1	Rated Capacity	Minimum	100mAh	Standard discharge0.2C(20mA) after Standard charge
2	Nominal Voltage	3.7V		Mean Operation Voltage
3	Voltage at end of Discharge	3.0V		Discharge Cut-off Voltage
4	Charging Voltage	4.20V
5	Max.Charging Voltage	4.25V
6	Internal Impedance	≤130mΩ		Internal resistance measured at AC 1KH_Z after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times
7	Standard charge	Constant Current 0.2C₅A Constant Voltage 4.2V 0.01 C₅A cut-off		Charge time : Approx 6.5h
8	Standard discharge	Constant current 0.2C₅A end voltage 3.0V
9	Maximum Continuous Operation Current	1200mA
10	Weight	2.7±1.0g
11	Operation Temperature Range	Charge: 0~45℃		60±25%R.H. Bare Cell
		Discharge: -10~60℃
12	Storage Temperature Range	Less than 1 month: -20~40℃		60±25%R.H. at the shipment state
		less than 6 months: -10~35℃
13	Cell Dimension	Length:Max 43.5mm		Initial Dimension
		D:Max.6.8mm
14	Voltage of shipment	4.10~4.20V

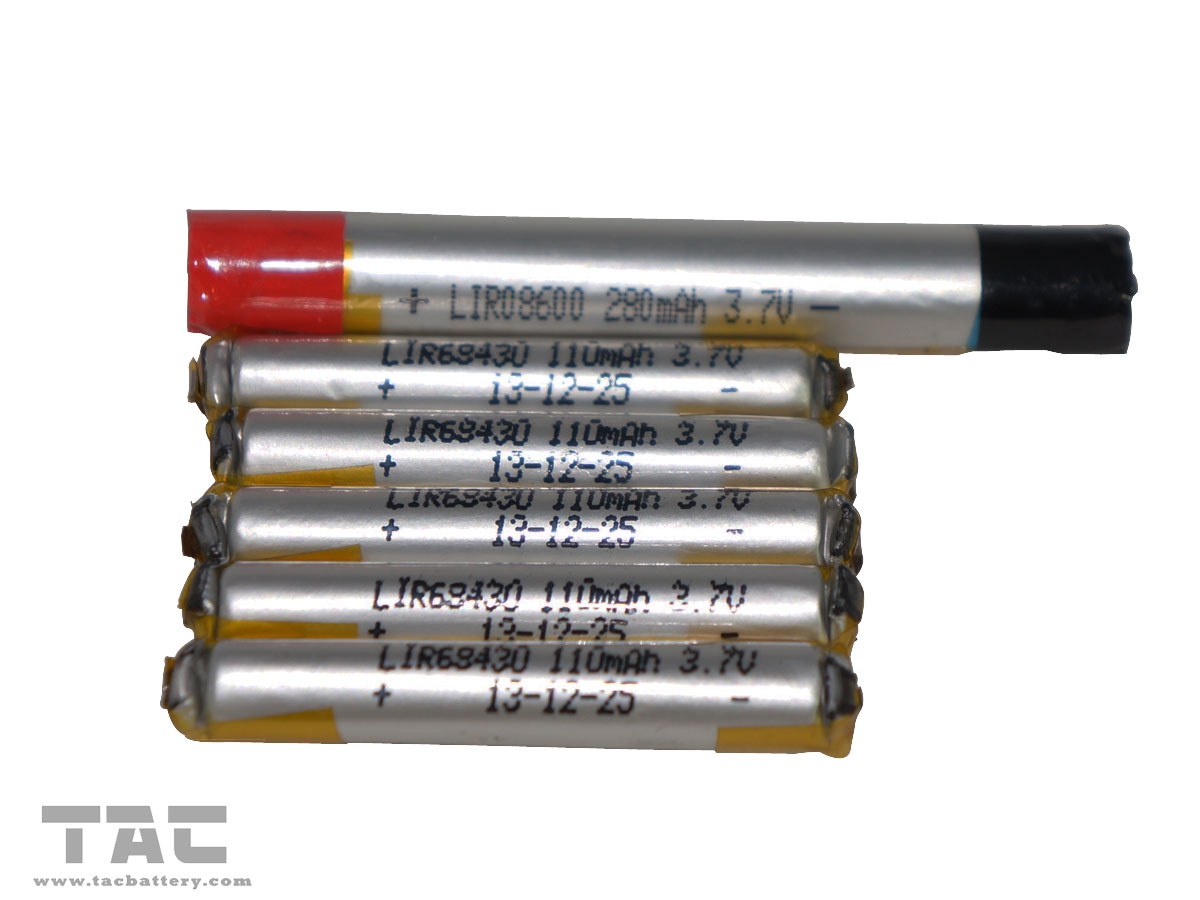

Pictures:

3.7V LIR68430 E-cig Big Battery For Electronic Cigarette Ego Ce4 Kit

LIR68340 E-cig battery

3.7V LIR68430 E-cig Big Battery For Ego Ce4 Kit

Warning:

1. Please keep out of children’s reach.

2. Keep in a cool, dark place or in the refrigerator for extended life.
