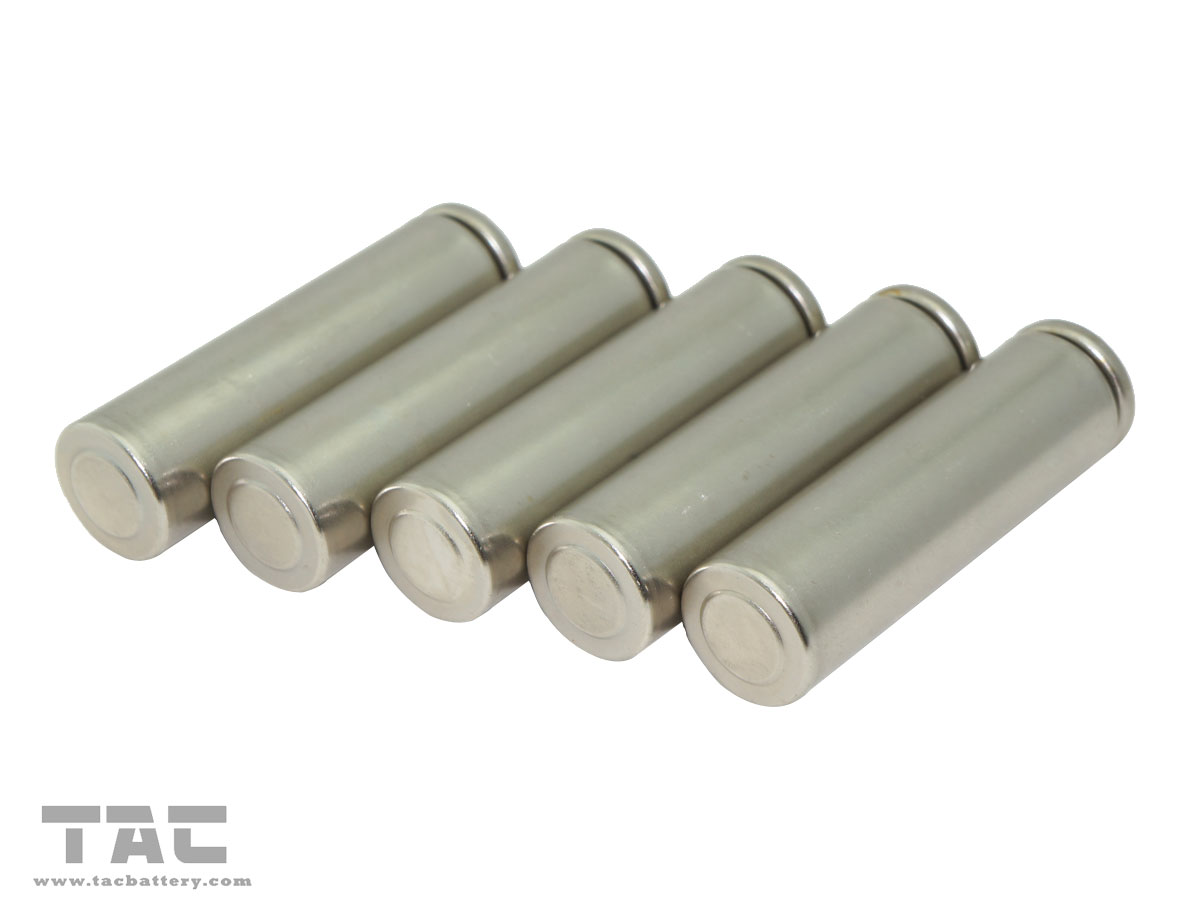

Lithium Ion AA 3.2v Lifepo4 Battery 600mah For Led Lamp and Solar Lamp

Product Categories

Guang Zhou Sunland New Energy Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	TAC OEM ODM
Certification :	MSDS REACH ROHS
Model Number :	PIFC0168
Price :	usd 1.0
Delivery Time :	7 days for single cell 15-20 days for battery pack
Payment Terms :	TT, LC, Paypal, etc
Supply Ability :	50000 pack for one week

Add to Cart

Lithium Ion AA 3.2v Lifepo4 Battery 450mah For Led Lamp And Solar Lamp

Some company called this model 14505 also, in order to avoid misunderstand , pls take close attention to below information

IFR14500 3.2v flat type

IFR14505 3.2V Top type

The size is High:50.0±0.5mm Diameter: 14.3±0.2 mm

Pls check the max size if your measure with strict require

Quick Detail:

1.14505 as the same 14500

2.Have different capacity:250mAh,300mAh,400mAh,450mAh 500mAh,600mAh,700mAh

3. AA battery can make a pack or use by single ell

4.Application for road studs, LED light, flash light

No.	Items	Specifications		Remark
1	Nominal Capacity	600mAh		0.2C Standard discharge
2	Minimum Capacity	550mAh		0.2C Standard discharge
3	Nominal Voltage	3.2V		Mean Operation Voltage
4	Delivery voltage	3.25~3.34V		Within 10 days from Factory
5	Charge Voltage	3.65V±0.03V		By standard charge method
6	Standard charging method	0.5C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C
7	Charge current	0.5C	250mA	Standard charge, charge time about 3h(Ref)
7	Charge current	1.0C	500mA	Rapid Charge, charge time about: ::2h(Ref)
8	Standard discharging method	0.2C constant current discharge to 2.5V,
9	Cell Internal Impedance	≤80mΩ		Internal resistance measured at AC 1KH_Z after 50% charge
10	Maximum charge current	1C		For continuous charging mod
11	Maximum discharge current	1C		For continuous discharge mod(Discharge capacity for more than 80% of the nominal capacity)

Lithium Ion IFR14500 AA 3.2v Lifepo4 Battery 450mah For Led Lamp

Lithium Ion IFR14500/AA 3.2v Lifepo4 Battery 450mah For Led Lamp

All packages must be labeled with 9 categories of dangerous goods and labeled with "Full Freight Transportation Only" operation label.
