    3.7V Cylindrical Rechargeable Lithium ion Batteries with Protective Circuit 10440 AAA

    Ask Lasest Price
    Brand Name : TAC OEM & ODM
    Certification : MSDS REACH ROHS
    Model Number : 3.7 LIR10440 320mAh
    Price : usd 1-2.0
    Delivery Time : 7-10 days after order confirm for stock model
    Payment Terms : 100% prepaid before shipping out
    Supply Ability : 100000PCS EACH WEEK
    • Product Details
    • Company Profile

    3.7V Cylindrical Rechargeable Lithium ion Batteries with Protective Circuit 10440 AAA


    3.7V Cylindrical Rechargeable Lithium ion Batteries with Protective Circuit 10440 / AAA


    Feature for 3.7V Cylindrical Rechargeable Lithium ion Batteries with Protective Circuit 10440 / AAA


    1. Model name:3.7V LIR10440/AAA 320mAh,with the protective circuit.
    2.High capacity and the long cycle life,the cycle life is about 500 times.
    3. The battery cell passed UL certification
    4. There are LIR14250,LIR14500,LIR18650,LIR17500,LIR15270 available.



    Specification for 3.7V Cylindrical Rechargeable Lithium ion Batteries with Protective Circuit 10440 / AAA


    Rechargeable 3.7V 10440 / AAA Lithium ion Cylindrical Battery with Protective Circuit

    No.

    Item

    General Parameter

    Remark

    1

    Rated Capacity

    Typical

    320mAh

    Standard discharge(0.2C5A) after Standard charge

    Minimum

    300mAh

    2

    Nominal Voltage

    3.7V

    Mean Operation Voltage

    3

    Voltage at end of

    Discharge

    3.0V

    Discharge Cut-off Voltage

    4

    Charging Voltage

    4.2V


    5

    Internal Impedance

    ≤120mΩ

    Internal resistance measured at AC 1KHZ after 50% charge

    The measure must uses the new batteries that within one week after shipment and cycles less than 5 times

    6

    Standard charge

    Constant Current 0.2C5A

    Constant Voltage 4.2V

    0.01 C5A cut-off


    7

    Standard discharge

    Constant current 0.2C5A

    end voltage 3.0V


    8

    Fast charge

    Constant Current 1.0C5A

    Constant Voltage 4.2V

    0.01 C5A cut-off


    9

    Fast discharge

    Constant current 1.0C5A

    end voltage 3.0V


    10

    Maximum Continuous Charge Current

    1.0 C5A


    11

    Maximum Continuous Discharge Current

    1.5 C5A


    12

    Operation Temperature Range

    Charge: 0~45℃

    60±25%R.H.

    Bare Cell



    Discharge: -10~60℃


    13

    Storage Temperature Range

    Less than 1 year: -20~25℃

    60±25%R.H.

    at the shipment state



    less than 3 months: -20~40℃




    Less than 7 day : -20~65℃


    14

    Cell Dimension

    High:Max44.3 mm

    Initial Dimension



    Diameter:Max10.2 mm

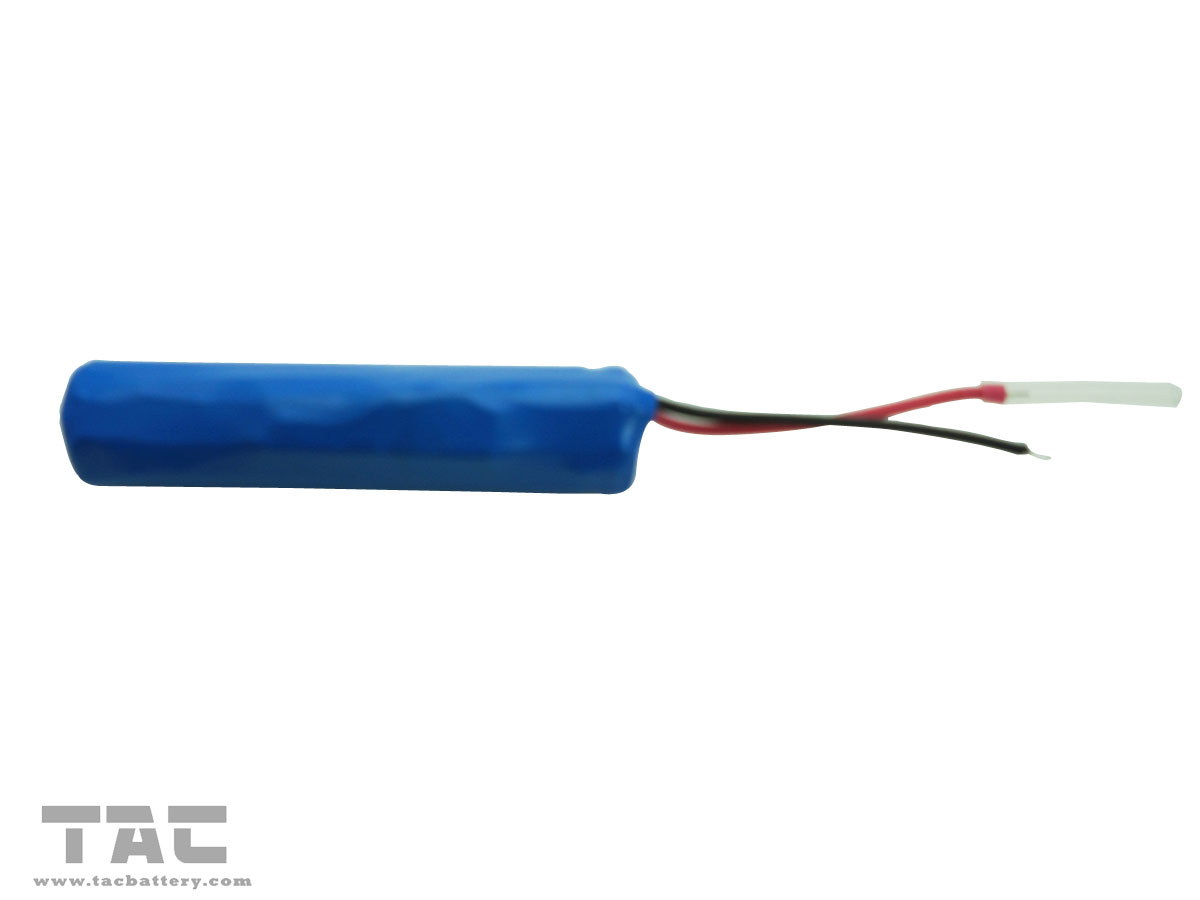

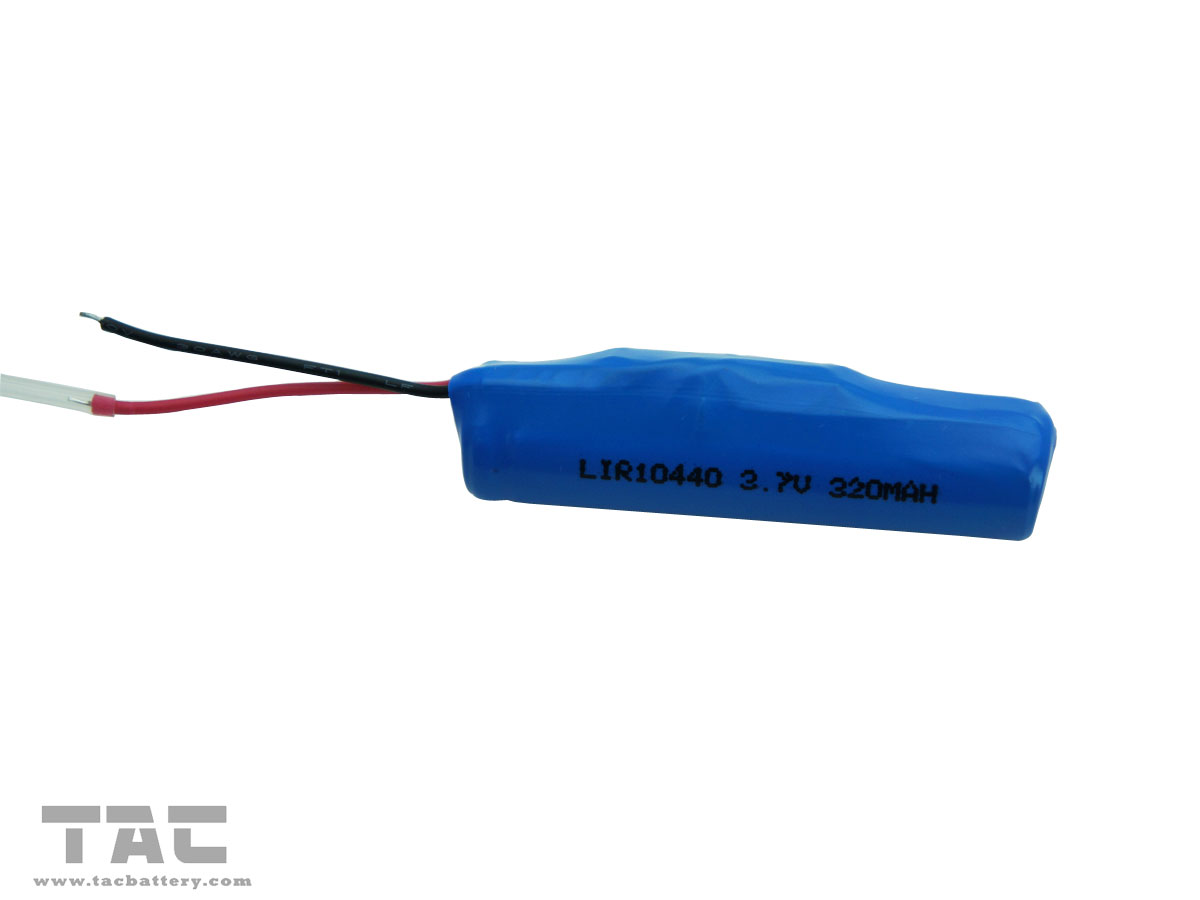

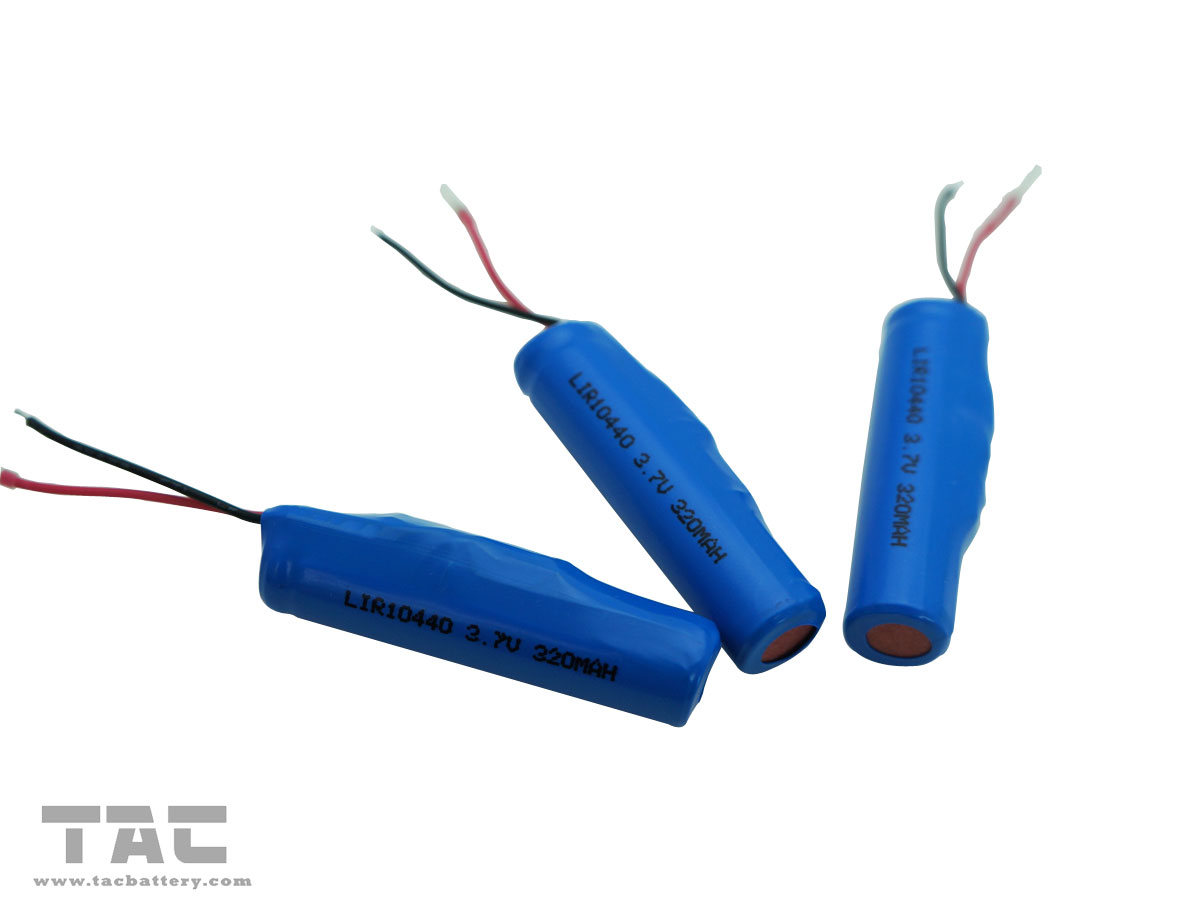

    Pictures:
    Rechargeable 3.7V 10440 / AAA Lithium ion Cylindrical Battery with Protective Circuit
    Rechargeable 3.7V 10440 / AAA Lithium ion Cylindrical Battery with Protective Circuit
    Rechargeable 3.7V 10440 / AAA Lithium ion Cylindrical Battery with Protective Circuit
    Rechargeable 3.7V 10440 / AAA Lithium ion Cylindrical Battery with Protective Circuit
    Rechargeable 3.7V 10440 / AAA Lithium ion Cylindrical Battery with Protective Circuit


    Packing Detail
