24V 20Ah High Rate LiFePO4 Battery Pack For Pump with Outer Shell

The Feature Of 24V 20Ah High Rate LiFePO4 Battery Pack For Pump with Outer Shell

1. The rate capacity is 20Ah,and the minimal rate capacity is 19Ah.

2. The standar voltage is 24V

3. Outside with the plastic shell,and the size is 183*mm130mm*195mm

4. With wide application,for pump,motor and so on

5. Deep Circle : Long life 1200times

Specification For 24V 20Ah High Rate LiFePO4 Battery Pack For Pump with Outer Shell

Charge And Discharge Performance

9	Standard charge	0.2C constant current(CC) charge to 29.2V,then constant voltage (CV)29.2V charge till charge current decline to ≤0.05C	Charge time : Approx 7h
10	Standard discharge	Constant current 0.2C Cut-off voltage 20.0V
11	Maximum Charge Current	10A
12	Continuous Discharge Current	20A
13	Operation Temperature Range	Charge: 5~45℃	60±25%R.H.
		Discharge: -10~60℃
14	Storage Temperature Range	Less than 1 year : 0~25℃	60±25%R.H. at the shipment state
		Less than 3 months:-5~35℃
15	Weight	Approx: 5.5Kg
16	Max.Dimension	High:183mm
		Width: 130mm
		Length: 195mm

Application Area

1. Energy Storage: UPS , backup ,power station.
2. EV and E car Wagon : Golf trolleys , Electric scooters .
3. Solar System,Wind Energy Storage,Home wall, Solar Street Light
4. Standtard 4UTelecommunications Base Stations
5. 12v 36v 48v UPS(Uninterrupted Power Supply)
6. Portable Energy Storage System

Normall packaging :

we protect the battery pack by extra - sponge shelf, and then put into stronge paper carton

1 whole set / each carton

Lead Time

1) Standard module , 15-20 Days when you confirm the order and arrange the payment

2)OEM module :25-35 days when we confirm all detail information

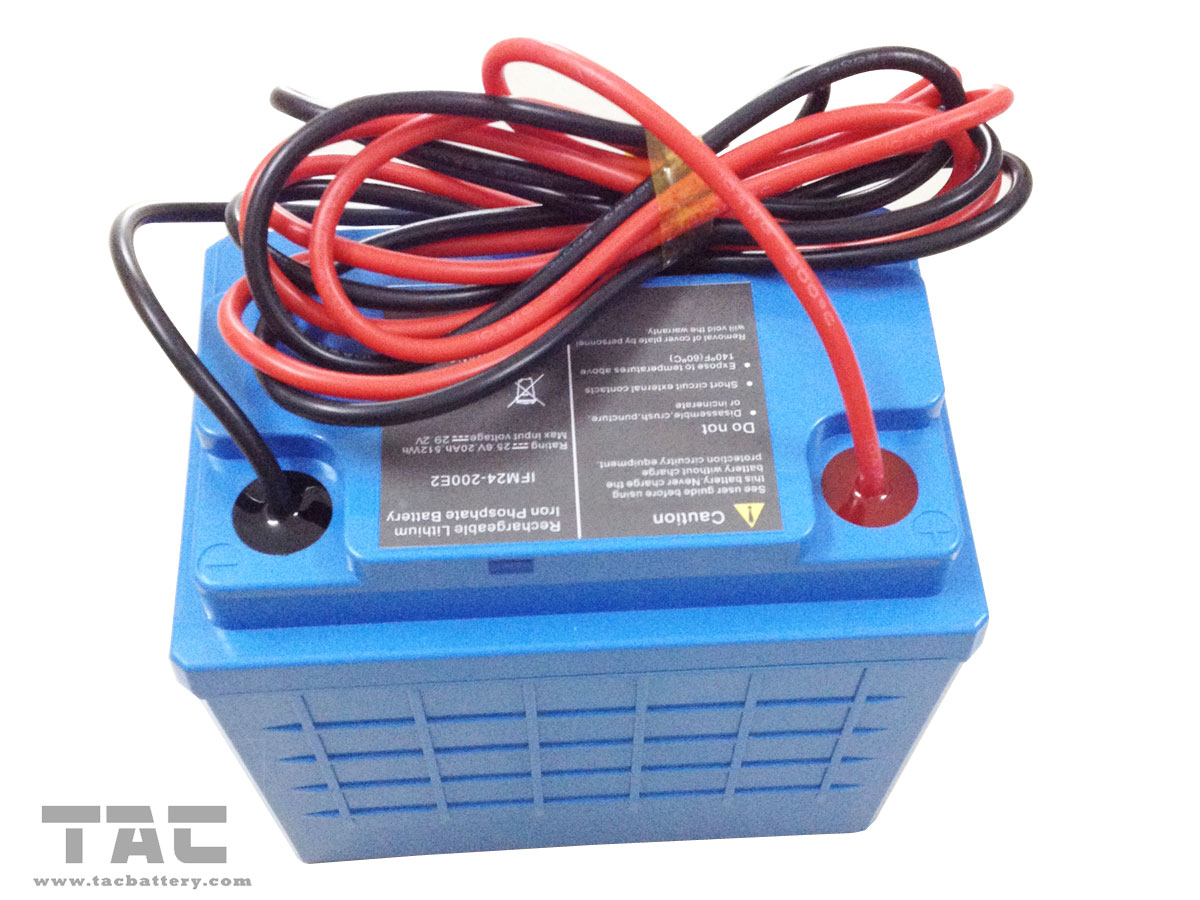

The Pictures of Battery Pack

24V 20Ah High Rate LiFePO4 Battery Pack For Pump

Maybe you are interested in more 24v model

Tags:Motorcycle battery,LiFePO4 battery pack,Li-ion power battery pack

Guangzhou Sunland New Energy Technology Co., Ltd. (Sunland Power) is a senior professional service provider of battery application. Aiming at serving industrial users, it is dedicated to providing industrial users with optimized battery supporting solutions and safe, environmental friendly and cost-effective battery products.
It has a R & D, engineering and management team with more than 10 years of industry experience
From upstream to downstream, the battery industry has the advantage of vertical integration
Specializing in batteries, battery packs, battery management systems and energy solutions
The products are widely used in medical devices, coal mine security, electronic appliances, power supply and standby energy storage system. For example, the power supply system of electric bicycle; Solar energy storage power supply system, UPS backup power supply system. At the same time, it is also an ideal choice for vehicle starting power supply, military painting and other fields.
We provide professional design and customization services according to the special needs of customers.
