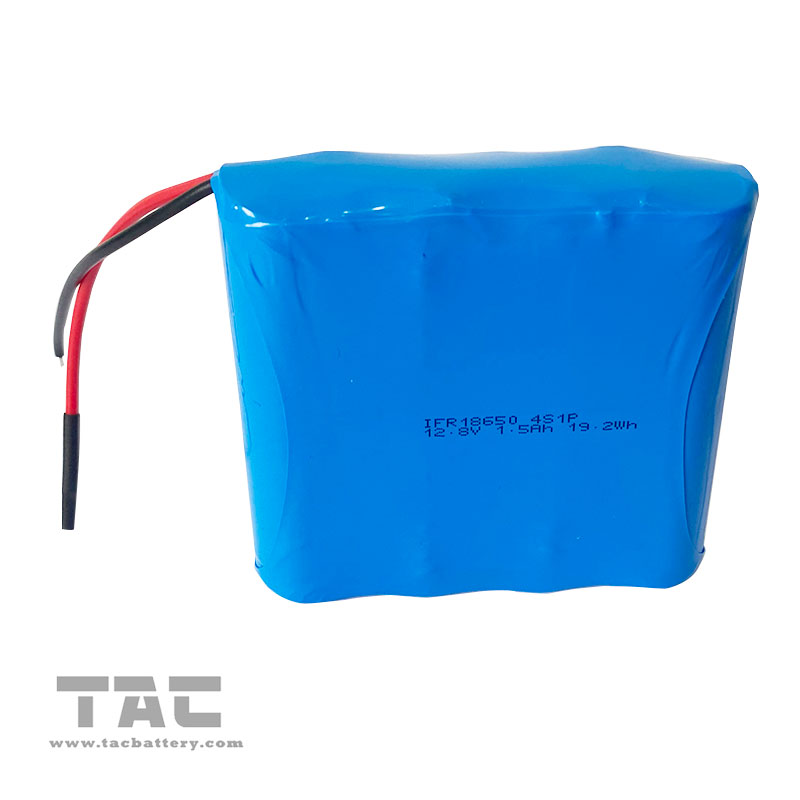

    12V 18650 LiFePO4 Battery Pack 1.5Ah Water Proof For Solar Flash and Light

    Ask Lasest Price
    Brand Name : TAC OEM ODM
    Certification : MSDS REACH ROHS
    Model Number : PIFP0046
    Price : usd 3.0
    Delivery Time : 7-25 days after order confirm
    Payment Terms : TT, LC, Paypal, etc
    Supply Ability : 100000Piece/days
    • Product Details
    • Company Profile

    12V 18650 LiFePO4 Battery Pack 1.5Ah Water Proof For Solar Flash and Light

    12V 18650 LiFePO4 Battery Pack 1.5Ah Water Proof For Solar Flash and Light

    Feature For 12V 18650 LiFePO4 Battery Pack 1.5Ah Water Proof For Solar Flash and Light

    1. Lithium Iron Phosphate (Lifepo4 ) battery

    2. Safest lithium chemistry.

    3. High energy density120-130kwh/kg

    4. Efficient& deep circle over 2000times with DOD 80%

    5. Good High rate discharging performance

    6. Battery pack with pcm and wire with customer's require.


    Specification for 12V 18650 LiFePO4 Battery Pack 1.5Ah Water Proof For Solar Flash and Light

    No.


    Item


    Data


    Remark


    1

    Rated Capacity


    		1.5Ah

    Standard discharge(0.2C)to 10V, after CC charge(0.2C)to 14.6V, then CV till current to 0.02C


    2

    Minimal Rated

    Capacity


    		145Ah
    3

    Nominal Voltage


    		12.8V
    4

    Cycle Life


    		Higher than 80% of the Initial Capacity of the Cells80%)

    Charge: CC@0.2C to 14.6V, then CV till current to 0.02C

    Rest: 30min.

    Discharge: 0.2C to 10.0V

    Temperature:20±5℃

    Carry out 1200cycles


    5

    Discharge cut-off voltage


    		10.0V
    6

    Charging cut-off voltage


    		14.6V
    7

    Cell and assembly method


    		IFR18650 1.5AH4S1P
    8

    Packing material


    		PVC shrink
    9

    IR


    		60≤ mΩ

    The General Parameter for Charge and Discharge

    No.


    Item


    General Parameter


    Remark


    10

    Standard charge


    0.2C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.02C


    Charge time : Approx 6h


    11

    Standard discharge


    Constant current 0.2C

    Cut-off voltage 10.0V


    12

    Maximum Charge Current


    		1C(2.3A)
    13Maximum Continue0.5c
    14

    Maximum Peak Discharge Current


    		2c
    15

    Operation Temperature Range


    		Charge: 0~45℃

    60±25%R.H.


    Discharge: -10~60℃
    16

    Storage Temperature Range


    Less than 1 year : 0~25℃


    60±25%R.H.

    at the shipment state


    Less than 3 months:-5~35℃


    17

    Weight


    		Approx/: 200g
    18

    Pack Dimension


    		High/:72mmMax
    Width/: 25mm
    Length/: 72mm

    Application For 12V 18650 LiFePO4 Battery Pack 1.5Ah Water Proof For Solar Flash and Solar Light

    The Lifepo4 battery pack can used for very wide range for examples


    Solar Device

    Energy Storage System

    Various LED light






    Normal Package Picture :


    The battery pack were putted in the bubble pack one by one

    3-5 sets for one inner box

    8-10 box for one cartons

    We show the UN label on the outer carton in order to meet the rules for international transportation




    Delivery Time

    Tac support short delivery time for the cargo

    7-15 days for bulk or standard module after the buyer confirm the project detail and arrange the payment

    25-35days for specially OEM order


    Payment Item

    Normally bulk order : 100% advance before the cargo were shipped out .

    OEM order : 30% advance after the order confirm ,70% for rest before the cargo were shipped out


    More Size for Lifepo4 Battery Pack

    MODELCAPACITYVOLTAGE
    IFR1012035mah3.2V
    IFR10440200mah3.2V
    IFR14430300mah3.2V
    IFR14430400mah3.2V
    IFR14430450mah3.2V
    IFR14430 FLAT450mah3.2V
    IFR14430500mah3.2V
    IFR14505250mah3.2V
    IFR14505300mah3.2V
    IFR14505400mah3.2V
    IFR14500 FLAT600mah3.2V
    IFR14505600mah3.2V
    IFR15270200mah3.2V
    IFR17335450mah3.2V
    IFR18500600mah3.2V
    IFR18500800mah3.2V
    IFR185001000mah3.2V
    IFR186501000mah3.2V
    IFR18650P1100mah3.2V
    IFR186501200mah3.2V
    IFR186501500mah3.2V
    IFR266503300mah3.2V
    IFR217004800mah3.2V
