LiFePO4 Electric bike Battery Pack 12V 40Ah For Motor Or Car VRLA SLA replacements

    Buy cheap LiFePO4 Electric bike Battery Pack 12V 40Ah For Motor Or Car VRLA SLA replacements from wholesalers

    Buy cheap LiFePO4 Electric bike Battery Pack 12V 40Ah For Motor Or Car VRLA SLA replacements from wholesalers
    • Buy cheap LiFePO4 Electric bike Battery Pack 12V 40Ah For Motor Or Car VRLA SLA replacements from wholesalers
    • Buy cheap LiFePO4 Electric bike Battery Pack 12V 40Ah For Motor Or Car VRLA SLA replacements from wholesalers

    LiFePO4 Electric bike Battery Pack 12V 40Ah For Motor Or Car VRLA SLA replacements

    Ask Lasest Price
    Brand Name : TAC
    Certification : UL,ROHS
    Model Number : PIFP0064
    Price : usd 1000
    Delivery Time : 14Days
    Payment Terms : TT, LC, Paypal, etc
    Supply Ability : 100Piece/days
    • Product Details
    • Company Profile

    LiFePO4 Electric bike Battery Pack 12V 40Ah For Motor Or Car VRLA SLA replacements


    LiFePO4 Electric Bike Battery Pack 12V 40Ah For Motor Or Car VRLA SLA Replacements


    Quick Detail:


    1.12V 40Ah battery pack is used electric motor car can used for 12V VRLA/SLA replacements

    2. Max continuous Load:80A Max Peak current : 120A/30s

    3. The Max.Dimension is 195 x 130 x 183mm

    4.Have a long cycle life 1200times DOD 100%


    Specification for LiFePO4 Electric Bike Battery Pack 12V 40Ah For Motor Or Car VRLA SLA Replacements


    No.


    Item

    General Parameter

    Remark

    1

    Rated Capacity

    40.0Ah

    Standard discharge(0.2 C5)after standard charge(0.2 C5)

    2

    Minimal Rated

    Capacity

    36.0Ah

    3

    Nominal Voltage

    12.8V


    4

    Cycle Life

    Higher than 60% of the Initial Capacity of the Cells

    ◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C

    ◆Rest: 30min.

    ◆Discharge: 0.2C to 10.0V

    ◆Temperature:20±5℃

    ◆Carry out 2000cycles

    5

    Discharge cut-off voltage

    10.0V

    10.0V( recommended)

    6

    Charging cut-off voltage

    14.8V

    14.6V (recommended)

    7

    Standard charge

    0.2C constant current(CC) charge to 14.6V,then constant voltage (CV)14.6V charge till charge current decline to ≤0.05C

    Charge time : Approx 7h

    8

    Standard discharge

    Constant current 0.2C

    Cut-off voltage 10.0V


    9

    Maximum Charge Current

    20A


    10

    Continuous Discharge Current

    40A

    Over current 100±5A 9mS

    11

    Operation Temperature Range

    Charge: 5~45℃

    60±25%R.H.


    12


    Discharge: -10~60℃


    13

    Storage Temperature Range

    Less than 1 year : 0~25℃

    60±25%R.H.

    at the shipment state



    Less than 3 months:-5~35℃


    14

    Weight

    Approx: 6.1Kg


    15

    Max.Dimension

    Height:182mmWidth: 130mmLength: 195mm








    Length: 195mm

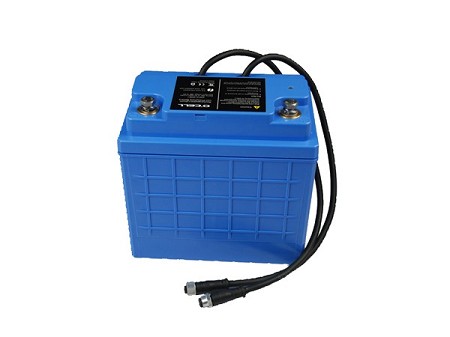

    Picture for LiFePO4 Electric bike Battery Pack 12V 40Ah For Motor Or Car VRLA/SLA replacements


    Application :

    The battery is design for electric bike also can use for various Energy storeage system


    Packing Standard


    Maybe you are interested in more model for E-bike


    Period of Warranty


    The period of warranty is 12 months from the date of shipment. TAC guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.


    Storing the Batteries

    The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
    We recommend that batteries be charged about once per three months to prevent over-discharge.
