3.2V LiFePO4 Battery 26650 With Long Life Cycle for Back Up Power

    Buy cheap 3.2V LiFePO4 Battery 26650 With Long Life Cycle for Back Up Power from wholesalers

    Buy cheap 3.2V LiFePO4 Battery 26650 With Long Life Cycle for Back Up Power from wholesalers
    • Buy cheap 3.2V LiFePO4 Battery 26650 With Long Life Cycle for Back Up Power from wholesalers
    • Buy cheap 3.2V LiFePO4 Battery 26650 With Long Life Cycle for Back Up Power from wholesalers
    • Buy cheap 3.2V LiFePO4 Battery 26650 With Long Life Cycle for Back Up Power from wholesalers
    • Buy cheap 3.2V LiFePO4 Battery 26650 With Long Life Cycle for Back Up Power from wholesalers

    3.2V LiFePO4 Battery 26650 With Long Life Cycle for Back Up Power

    Ask Lasest Price
    Brand Name : TAC OEM ODM
    Certification : MSDS REACH ROHS
    Model Number : PIFP0049
    Price : usd 3-5
    Delivery Time : 7 days for single cell 15-20 days for battery pack
    Payment Terms : TT, LC, Paypal, etc
    Supply Ability : 50000 pack for one week
    • Product Details
    • Company Profile

    3.2V LiFePO4 Battery 26650 With Long Life Cycle for Back Up Power

    3.2V LiFePO4 Battery 26650 With Long Life Cycle For Back Up Power


    Advantage:

    1. Deep circle Lifepo4 battery with TAG
    2. Single cell IFR26650 2300MAH 3,2V High rate battery , support 5c big discharge current
    3. long circle life : 2000times
    4. support OEM and ODM



    Specification for 3.2V LiFePO4 Battery 26650 With Long Life Cycle For Back Up Power

    No.

    Items

    Specifications

    1

    Charge cut-off voltage

    3.65V

    2

    Nominal voltage

    3.2V

    3

    Minimal capacity

    2300mAh @ 1C Discharge

    4

    Nominal capacity

    2350mAh @ 1C Discharge

    5

    Charge current

    1C

    6

    Standard charging method

    1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C

    7

    Charging time

    Standard charge: 2.0 hours Ref

    8

    Max. charge current

    5C

    9

    Max. continue discharge current

    20C (Cell skin temperature cannot exceed 80°C)

    10

    Discharge cut-off voltage

    2.0V

    11

    Operating temperature

    Charging: -10°C ~ 45°C
    Discharging: -20°C ~ 60°C
    (Cell skin temperature cannot exceed 80°C)

    12

    Storage temperature/humidity

    Temperature -10°C ~ +35°C
    Humidity 65%±20%RH
    (Recommended to store 23 ± 5°C for long term storage)

    13

    Cell Weight

    78.0g±1.0g

    14

    Cell Dimension

    Length: 65.0±0.3 mm
    Width: 26.2±0.2 mm



    Battery Pack Photo

    3.2V LiFePO4 Battery 26650 With Long Life Cycle for Back Up Power

    Application for 3.2V LiFePO4 Battery 26650 With Long Life Cycle For Back Up Power

    1. soLar lighting
    2. power tool
    3. UMA
    4. led lighting
    5. Energy Storage system : UPS , backup ,power station.

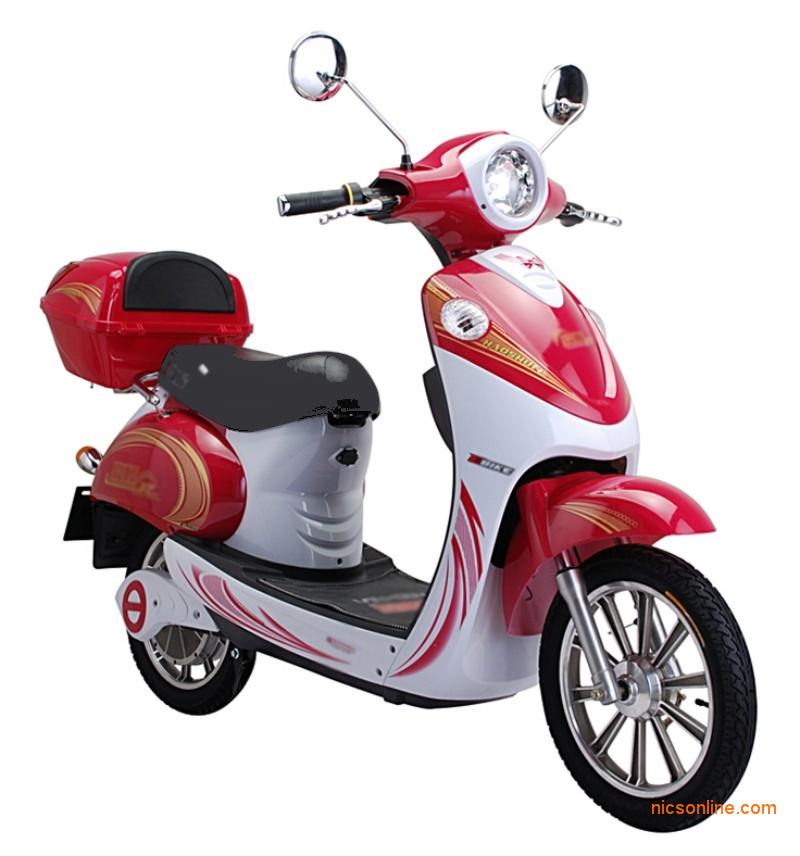

    6. EV and E car : Golf trolleys , Electric scooters .
    7. Solar Production System,Wind Energy Storage,Solar/Storage Home System, Solar Street Light.
    8. Telecommunications Base Stations.



    S

    Packing Manner




    Maybe you are interested in The battery pack for IFR26650

    Our services:

    1) Reply within 24 working hours by email or Wechat
    2) Customized available, OEM & ODM are welcomed and support technology for electrical part
    3) Professional engineers & Exclusive and unique solution cover the cell and pack

    4) We could design and develop LiFePO4, Lithium Ion, Li-Polymer, NiMH and CR ER battery packs according to your product work performance & structure appearance.



    Tag: IFR26650 3.2V 2.3Ah; LiFePO4 Batteries; LiFePO4 Battery Pack
