    Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power

    Ask Lasest Price
    Brand Name : TAC OEM ODM
    Certification : MSDS REACH ROHS
    Model Number : PIFP0048
    Price : usd 10-15 each pcs
    Delivery Time : 7 days for single cell 15-20 days for battery pack
    Payment Terms : TT, LC, Paypal, etc
    Supply Ability : 50000 pack for one week
    • Product Details
    • Company Profile

    Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power


    Rechargeable IFR26650 3.2V LiFePO4 Battery 2300mAh With Tabs For Back Up Power


    Quick Detail for Rechargeable IFR26650 3.2V LiFePO4 Battery 2300mAh With Tabs For Back Up Power


    1. The battery pack Welding the tabs on both of two pole ,and thickness of the tabs is 0.5mm
    2. The battery pack can assembling with M3 screw
    3. Lifepo4 battery 26650 3.2v 2300mah without pcb
    4. the tab can replace with wire and connector

    Specification for Rechargeable IFR26650 3.2V LiFePO4 Battery 2300mAh With Tabs For Back Up Power


    No.

    Items

    Specifications

    1

    Charge cut-off voltage

    3.65V

    2

    Nominal voltage

    3.2V

    3

    Minimal capacity

    2300mAh @ 1C Discharge

    4

    Nominal capacity

    2350mAh @ 1C Discharge

    5

    Charge current

    1C

    6

    Standard charging method

    1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C

    7

    Charging time

    Standard charge: 2.0 hours Ref

    8

    Max. charge current

    5C

    9

    Max. continue discharge current

    20C (Cell skin temperature cannot exceed 80°C)

    10

    Discharge cut-off voltage

    2.0V

    11

    Operating temperature

    Charging: -10°C ~ 45°C

    Discharging: -20°C ~ 60°C

    (Cell skin temperature cannot exceed 80°C)

    12

    Storage temperature/humidity

    Temperature -10°C ~ +35°C

    Humidity 65%±20%RH

    (Recommended to store 23 ± 5°C for long term storage)

    13

    Cell Weight

    78.0g±1.0g

    14

    Cell Dimension

    Length: 65.0±0.3 mm

    Width: 26.2±0.2 mm

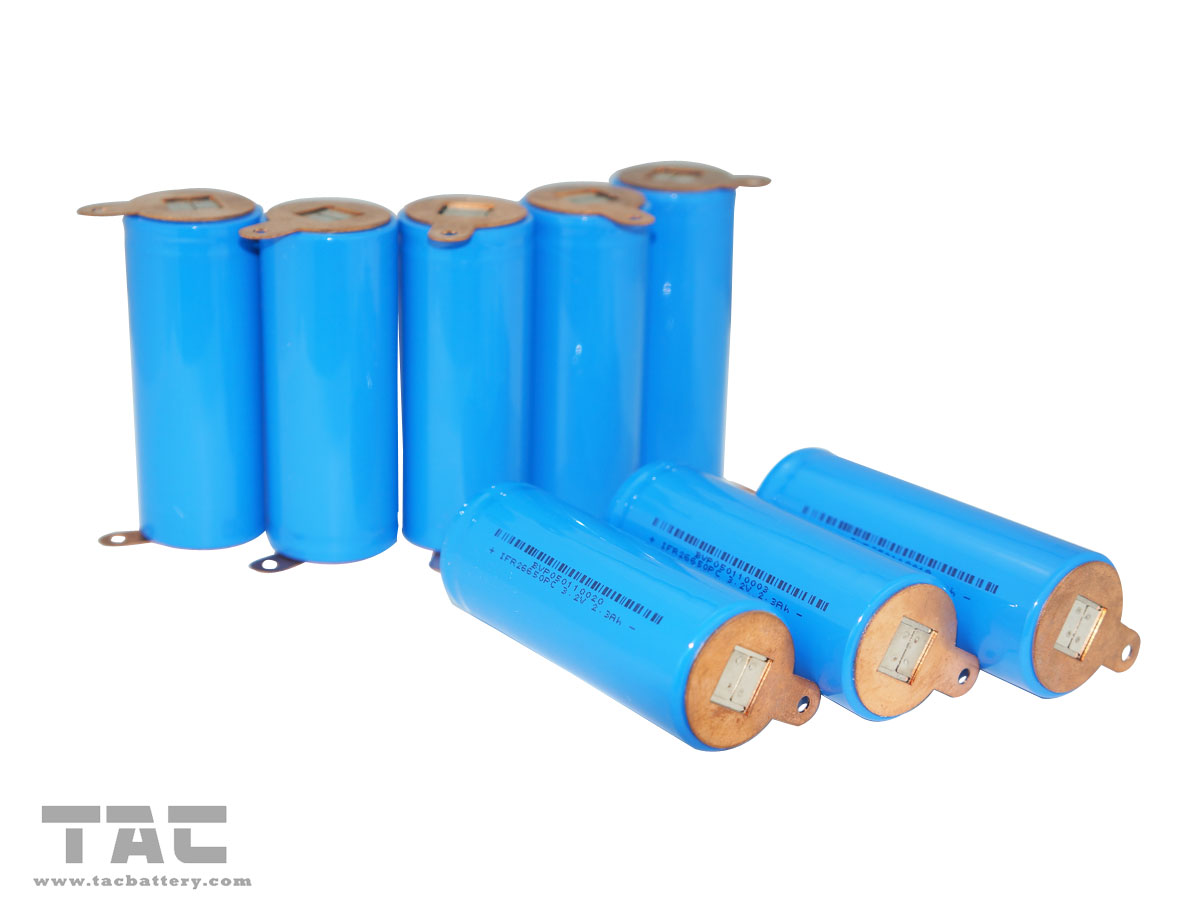

    Pictures for Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power


    Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power


    Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power


    Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power


    Packing Detail:


    Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power


    Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power


    Certification


    TAC BATTERY issue more solution for 12V IFR26650 Battery Pack


    Tag: LiFePO4 Battery; IFR26650 Battery; 3.2V 26650 3300mAh
