CR123A Portable Battery Charger 12 Volt For Li-Ion Battery

    Buy cheap CR123A Portable Battery Charger 12 Volt For Li-Ion Battery from wholesalers

    Buy cheap CR123A Portable Battery Charger 12 Volt For Li-Ion Battery from wholesalers
    • Buy cheap CR123A Portable Battery Charger 12 Volt For Li-Ion Battery from wholesalers
    • Buy cheap CR123A Portable Battery Charger 12 Volt For Li-Ion Battery from wholesalers
    • Buy cheap CR123A Portable Battery Charger 12 Volt For Li-Ion Battery from wholesalers
    • Buy cheap CR123A Portable Battery Charger 12 Volt For Li-Ion Battery from wholesalers

    CR123A Portable Battery Charger 12 Volt For Li-Ion Battery

    Ask Lasest Price
    Brand Name : TAC
    Certification : UL,ROHS
    Model Number : PCGF0094
    Price : Price Negotiable
    Delivery Time : 14Days
    Payment Terms : TT, LC, Paypal, etc
    Supply Ability : 100000Piece/days
    • Product Details
    • Company Profile

    CR123A Portable Battery Charger 12 Volt For Li-Ion Battery

    CR123A Portable Battery Charger 12 Volt For Li-Ion Battery

    1. Input voltage: 12Vd.c.; Input current: 250mA
    2. Output voltage: 4.4Vd.c.; Output loading: 360mA
    3. ussage: Li-ion battery

    Specification:


    ITEM

    DESCRIPTION

    1.INPUT

    1.1 Input voltage: 12Vd.c.

    1.2 Input: current: 250mA

    2.OUTPUT

    2.1 Output voltage: 4.4Vd.c.

    2.2 Output loading: 360mA

    3.ADAPTER

    3.1 Input voltage: Optional

    3.2 Output voltage: 12Vd.c.

    3.3 Output loading: 250mA

    4.CHARACTERISTIC

    1. Suitable for 1 or 2pcs 123A Li-ion battery

    4.2 Charge with constant current and constant voltage.

    5.OPERATING INSTRUCTION

    1. Insert the battery into the battery compartment with

    correct direction of polarity.

    5.2 Connect the adapter to the charger and switch on the power.

    1. Green LED indicates the power is on if there is no

    batteries in the battery compartment.

    1. Red LED indicates the batteries are properly

    charging.

    Red LED turn to Green LED indicates the batteries are fully charged.

    6.ENVIRONMENTAL

    1. Operating temperature: 0℃ to 35℃ ambient
    2. Storage temperature: -20℃ to 80℃
    3. Operating humidity:20% to 90% RH

    6.4 Storage humidity: 20% to 90% RH

    7.CAUTION

    1. Indoor use only. Do not expose the charger to rain

    or moisture.

    7.2 The charger is intended for use with Li-ion battery only. Attempt to charge other type of batteries may cause personal injury and damage the charger.

    8.SAFETY STANDARD

    9.MECHANICAL SPECIFICATION

    9.1 Plastic case: Refer to sketch below

    9.2 Input DC code: Φ5.5×2.1×10mm

    CR123A Portable Battery Charger for Rechargeable 123A Battery


    The plug for UK:

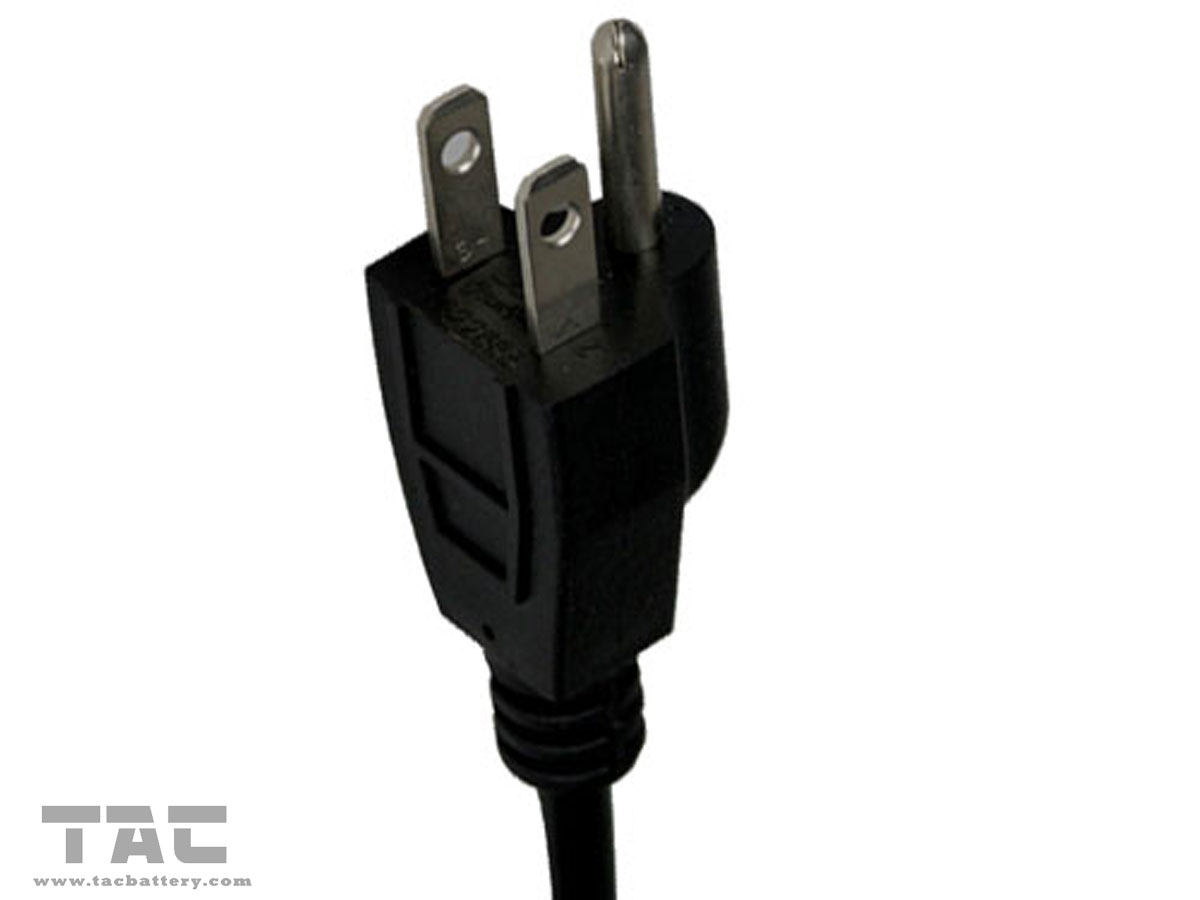

    The plug for US

    The plug for Euro:
