    14505 aa 600mah 3.2V Lifepo4 Battery Pack With Pcb For Flash Light

    Ask Lasest Price
    Brand Name : TAC OEM ODM
    Certification : MSDS REACH ROHS
    Model Number : PIFC0075
    Price : usd 2.0
    Delivery Time : 7 days for single cell 15-20 days for battery pack
    Payment Terms : TT, LC, Paypal, etc
    Supply Ability : 50000 pack for one week
    • Product Details
    • Company Profile

    14505 aa 600mah 3.2V Lifepo4 Battery Pack With Pcb For Flash Light


    14505 AA 600mah 3.2V Lifepo4 Battery Pack With Pcb For Flash Light


    Quick Detail:
    1.Adding the PCB on the pole
    2.14505 also call 14500 ,Standard size as AA
    3. Nominal Voltage: 6.4V; Charging Voltage: 7.3V
    4. Rated Capacity: 600mAh With IEC test standard 100% full capacity


    Specification for 14505 AA 600mah 3.2V Lifepo4 Battery Pack With Pcb For Flash Light :


    No.

    Item

    General Parameter

    Remark

    1

    Rated Capacity

    Typical

    600mAh

    Standard discharge(0.2C5A) after Standard charge

    Minimum

    550mAh

    2

    Nominal Voltage

    6.4V

    Mean Operation Voltage

    3

    Voltage at end of
    Discharge

    4.0V

    Discharge Cut-off Voltage

    4

    Charging Voltage

    7.3V


    5

    Internal Impedance

    ≤200mΩ

    Internal resistance measured at AC 1KHZ after 50% charge
    The measure must uses the new batteries that within one week after shipment and cycles less than 5 times

    6

    Standard charge

    Constant Current 0.2C5A
    Constant Voltage 7.3V
    0.01 C5A cut-off


    7

    Standard discharge

    Constant current 0.2C5A
    end voltage4.0V


    8

    Fast charge

    Constant Current 1.0C5A
    Constant Voltage 7.3V
    0.01 C5A cut-off


    9

    Fast discharge

    Constant current 1.0C5A
    end voltage 4.0V


    10

    Maximum Continuous Charge Current

    1.0 C5A


    11

    Maximum Continuous Discharge Current

    1.5 C5A


    12

    Operation Temperature Range

    Charge: 0~45℃

    60±25%R.H.
    Bare Cell



    Discharge: -10~60℃


    13

    Storage Temperature Range

    Less than 1 year: -20~25℃

    60±25%R.H.
    at the shipment state



    less than 3 months: -20~40℃




    Less than 7 day : -20~65℃


    14

    Cell Dimension

    High:50.0±0.2 mm

    Initial Dimension



    Diameter: 14.0±0.4 mm

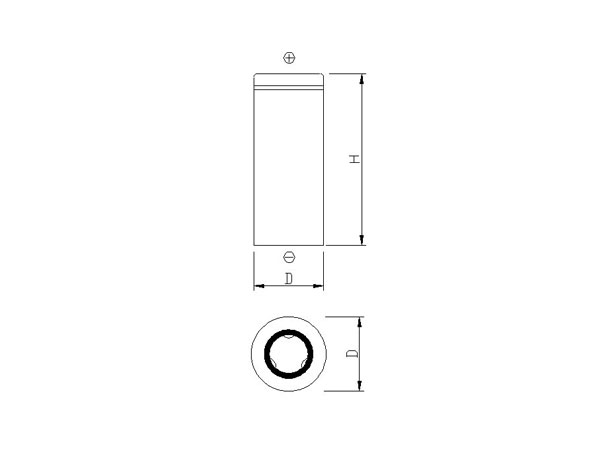

    Cell Structure:
    14500 6.4V battery pack

    D

    14.0±0.4

    H

    49.0±0.2

    Units

    mm

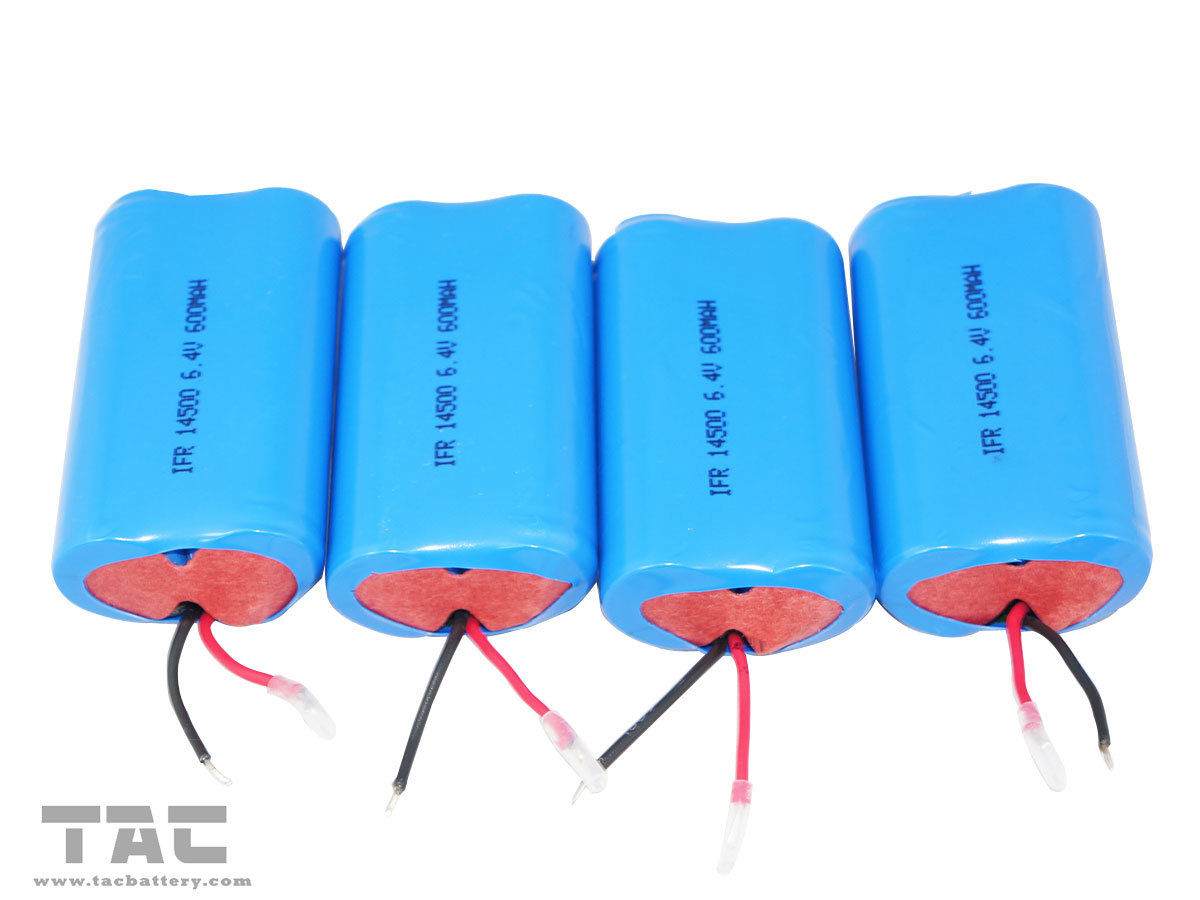

    Pictures:


    14505 aa 600mah 3.2V Lifepo4 Battery Pack With Pcb For Flash Light


    Tac Support bigger voltage and capacity battery pack with IFR14505
    Car battery pack

    Application:


    14505 aa 600mah 3.2V Lifepo4 Battery Pack With Pcb For Flash Light


    Application of 14500 battery

    More Information

    1. MOQ

    (1) Battery sample orders for testing are welcome.we can support 10-50pcs for single cell
    (2) MOQ for mass production is lower, please feel free contact our staff if you need.
    (3) It is our honor to provide service for you, no matter how many you order.OEM order 50-100 for battery pack

    2. OEM & ODM
    OEM and ODM orders are welcome, provide best solution to meet your design and cost limit require

    3. Quality control
    (1)100% tested in production. Test the voltage inter resisitance one by one before shipping. All the products will go through 5 checks.
    (2) Mass production will only start after we get your confirmation of samples and specification

    4. Manufacture aptitude


    (1) We have our own factory in Guangzhou and Shenzhen
    (2) Cell batteries and pack are manufacturing by ourselves.outer purchase the PCM with our engineer
    's design
    (3) Provide you “customized products” along with the best price and best solution

    5. Warranty
    12 months for battery cell and pack
