6.4V LiFePO4 Battery Pack 14500 500mAh For Decorative Lighting

Ask Lasest Price
Brand Name :	TAC OEM ODM
Certification :	MSDS REACH ROHS
Model Number :	PIFP0006
Price :	usd 10
Delivery Time :	7 days for single cell 15-20 days for battery pack
Payment Terms :	TT, LC, Paypal, etc
Supply Ability :	50000 pack for one week

Add to Cart

Product Details
Company Profile

6.4V LiFePO4 Battery Pack 14500 500mAh For Decorative Lighting

6.4V LiFePO4 Battery Pack 14500 500mAh For Decorative Lighting

Quick Detail:

Nominal Voltage: 6.4V; full Charging Voltage: 7.3V
Rated Capacity: 500mAh,mini capacity 450mah
The battery pack with pcb Connecting the wire one the pole with customer's require
Deep circle life : 2000 times

Specification for 6.4V LiFePO4 Battery Pack 14500 500mAh For Decorative Lighting

No.	Item	General Parameter		Remark
1	Rated Capacity	Typical	500mAh	Standard discharge(0.2C5A) after Standard charge
1	Rated Capacity	Minimum	450mAh	Standard discharge(0.2C5A) after Standard charge
2	Nominal Voltage	6.4V		Mean Operation Voltage
3	Voltage at end of Discharge	4.0V		Discharge Cut-off Voltage
4	Charging Voltage	7.3V
5	Internal Impedance	≤200mΩ		Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times
6	Standard charge	Constant Current 0.2C5A Constant Voltage 7.3V 0.01 C5A cut-off
7	Standard discharge	Constant current 0.2C5A end voltage4.0V
8	Fast charge	Constant Current 1.0C5A Constant Voltage 7.3V 0.01 C5A cut-off
9	Fast discharge	Constant current 1.0C5A end voltage 4.0V
10	Maximum Continuous Charge Current	1.0 C5A
11	Maximum Continuous Discharge Current	1.5 C5A
12	Operation Temperature Range	Charge: 0~45℃		60±25%R.H. Bare Cell
		Discharge: -10~60℃
13	Storage Temperature Range	Less than 1 year: -20~25℃		60±25%R.H. at the shipment state
		less than 3 months: -20~40℃
		Less than 7 day : -20~65℃
14	Cell Dimension	High:50.0±0.2 mm		Initial Dimension
		Diameter: 14.0±0.4 mm

Packing Manner for Battery Pack

The battery pack protected by small sponge bag one by one

then put the3-5 bags into standard paper box , 5-8 box for one standard carton

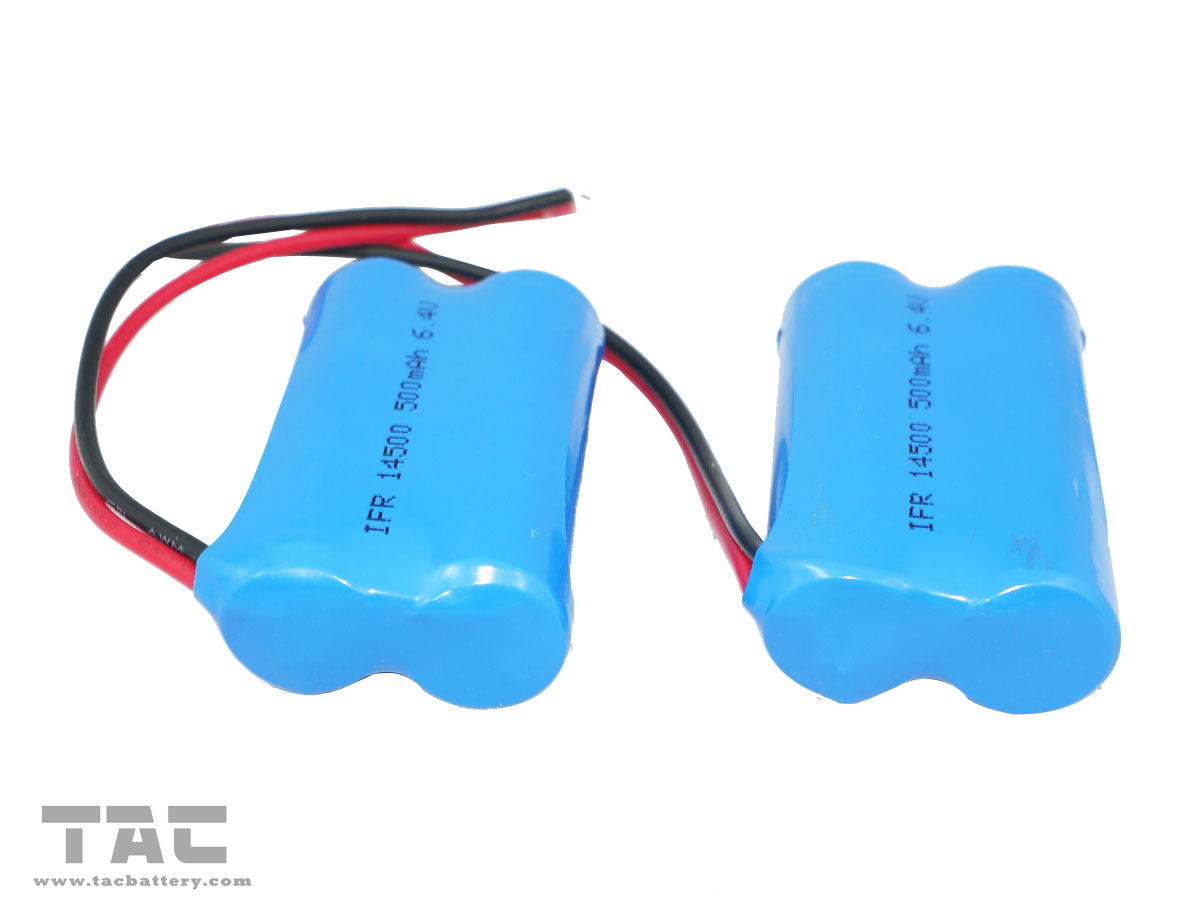

Image :6.4V 14500 500mAh LiFePO4 Battery Pack for decorative lighting

Application for6.4V 14500 500mAh LiFePO4 Battery Pack for decorative lighting

1 Solar system, energy storage system, UPS. home wall etc.
2. EV Ecar Golf carts, electric vehicles, motorcycle, automobile starter battery, trolley, electric boat, AGV etc.
3. Same capacity and voltage for Sealed Lead-Acid battery replacement.
4. medical device Forklift, srubbing machine, motive power bank etc.

Similar Proudction for Lifepo4 cell
