Rechargeable 800mah 3.2v Lifepo4 Battery With Tabs For Led Light

    Buy cheap Rechargeable 800mah 3.2v Lifepo4 Battery With Tabs For Led Light from wholesalers

    Buy cheap Rechargeable 800mah 3.2v Lifepo4 Battery With Tabs For Led Light from wholesalers
    • Buy cheap Rechargeable 800mah 3.2v Lifepo4 Battery With Tabs For Led Light from wholesalers
    • Buy cheap Rechargeable 800mah 3.2v Lifepo4 Battery With Tabs For Led Light from wholesalers

    Rechargeable 800mah 3.2v Lifepo4 Battery With Tabs For Led Light

    Ask Lasest Price
    Brand Name : TAC OEM ODM
    Certification : MSDS REACH ROHS
    Model Number : UL,ROHS
    Price : usd 3-5
    Delivery Time : 7 days for single cell 15-20 days for battery pack
    Payment Terms : TT, LC, Paypal, etc
    Supply Ability : 50000 pack for one week
    • Product Details
    • Company Profile

    Rechargeable 800mah 3.2v Lifepo4 Battery With Tabs For Led Light


    Rechargeable 800mah 3.2v Lifepo4 Battery With Tabs For Led Light


    Quick Detail:

    1.14505 as the same 14500

    2.Have different capacity:250mAh,300mAh,400mAh,450mAh 500mAh,600mAh,700mAh 800mAh,and so on.

    3. AA battery can make a pack or use by single ell

    4.Application for road studs, LED light, flash light ect.


    Specification for Rechargeable 800mah 3.2v Lifepo4 Battery With Tabs For Led Light


    No.

    Items

    Specifications

    Remark

    1

    Nominal Capacity

    800mAh

    0.2C Standard discharge

    2

    Minimum Capacity

    750mAh

    3

    Nominal Voltage

    3.2V

    Mean Operation Voltage

    4

    Delivery voltage

    3.25~3.34V

    Within 10 days from Factory

    5

    Charge Voltage

    3.65V±0.03V

    By standard charge method

    6

    Standard charging method

    0.5C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C


    7

    Charge current

    0.5C

    400mA

    Standard charge, charge time about 3h(Ref)

    1.0C

    800mA

    Rapid Charge, charge time about: ::2h(Ref)

    8

    Standard discharging method

    0.2C constant current discharge to 2.5V,


    9

    Cell Internal Impedance


    ≤80mΩ

    Internal resistance measured at AC 1KHZ after 50% charge

    10

    Maximum charge current

    1C

    For continuous charging mod

    11

    Maximum discharge current

    1C

    For continuous discharge mod(Discharge capacity for more than 80% of the nominal capacity)

    Structure for Rechargeable 800mah 3.2v Lifepo4 Battery With Tabs For Led Light

    AA battery pack


    NO

    Items

    Units: mm

    1

    Diameter(D)

    14.2±0.3

    2

    Height(H)

    50.2±0.02

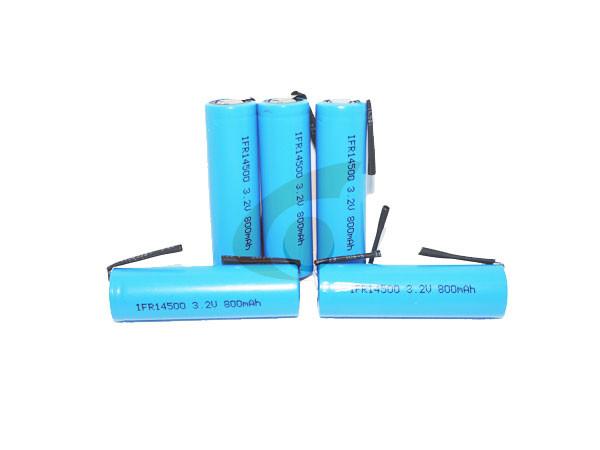

    Picture for Rechargeable 800mah 3.2v Lifepo4 Battery With Tabs For Led Light

    aa battery

    AA BATTERY


    Packing Detail

    The package meet UN38.3 certification


    Advantage of Lithium Battery:


    1.Long cycle life: 2000+cycles
    2.High voltage and engergy density meet big discharge current require
    3.Low self-discharge , 80% remain capacity after stock over 1 year
    4.Environment friendly passed the Rohs and Reach
    5.No memory effect , fully charged and discharged workable
    6.High safety in the lithium battery
    7. Can use any object shape

    Application

    1 Solar system , energy storage system, UPS and home all etc.
    2. Ev E carGolf carts, electric vehicles, motorcycle, automobile starter battery, trolley, electric boat, AGV etc.
    3. Same capacity and voltage for Sealed Lead-Acid battery replacement.
    4. toys Forklift, srubbing machine, motive power bank etc.
