Power tool 12.8V 4.6AH Li-ion Rechargeable Batteries replacement For Playmobile

Ask Lasest Price
Brand Name :	TAC
Certification :	UL,ROHS
Model Number :	PIFP0140
Price :	USD150- USD189
Delivery Time :	14Days after the order confirm
Payment Terms :	TT, LC, Paypal, etc
Supply Ability :	1000Piece/days

Add to Cart

Product Details
Company Profile

Power tool 12.8V 4.6AH Li-ion Rechargeable Batteries replacement For Playmobile

Power tool 12.8V 4.6AH Li-ion Rechargeable Batteries Replacement For Play mobile

Specification for Power tool 12.8V 4.6AH Li-ion Rechargeable Batteries Replacement For Play mobile

No.	Item	General Parameter	Remark
1	Rated Capacity	4.6Ah	Standard discharge(0.5C)after standard charge(0.5C)
2	Minimal Rated Capacity	4.3Ah	Standard discharge(0.5C)after standard charge(0.5C)
3	Nominal Voltage	12.8V
4	Cycle Life	Higher than 60% of the Initial Capacity of the Cells	◆Charge: CC@0.5C to 14.6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.5C to 10.0V ◆Temperature:20±5℃ ◆Carry out 800cycles
5	Discharge cut-off voltage	8.0V	10.0V(recommended)
6	Charging cut-off voltage	15.6V	14.6V(recommended)
7	Cell and assembly method	IFR26650P-2.3AH	4S2P
8	Packing material	ABS
9	Standard charge	0.2C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.05C	Charge time : Approx 3.5h
10	Standard discharge	Constant current 0.2C Cut-off voltage 10.0V
11	Maximum Charge Current	1C
12	Maximum Discharge Current	78A	Over current 240A 1S
13	Operation Temperature Range	Charge: 0~45℃	60±25%R.H.
		Discharge: -10~50℃
14	Storage Temperature Range	Less than 1 year : 0~25℃	60±25%R.H. at the shipment state
		Less than 3 months:-5~35℃
15	Weight	Approx: 910.0g±10.0g
16	Pack Dimension	High:94mmWidth: 87mm Length: 151mm

Application for Battery Pack

E-CAR E-Vehicle

Solar production

Power tool

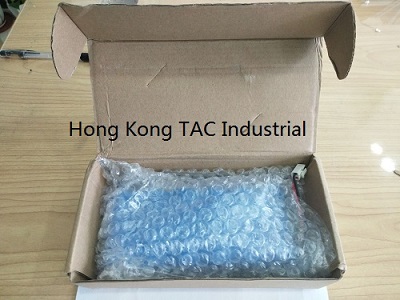

Packing For Lithium Battery Pack

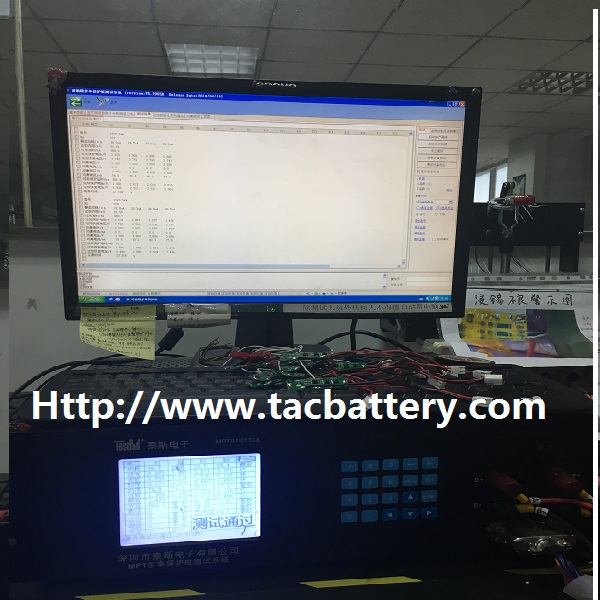

Quality Control Process

We are certified with ISO-9001, and strictly follow the ISO procedures.We do 100% testing for any of batteries before the order has been deliveried one by one including of the voltage inner dependance

Certificates

CE and RoHS , UN38.3 for single cell

Sales Service

1 Year Warranty for any of our battery.We keep promise we do full refund for the defective battery.

Payment Mehod

We accept T/T, L/C for the large quantities order, and Western union and Paypal will be accept for the small quantities order of battery.

Delivery date

20-25 days for normal model

35-40 days for OEM design

Structure:

The single cell can be assembly a battery pack what you want

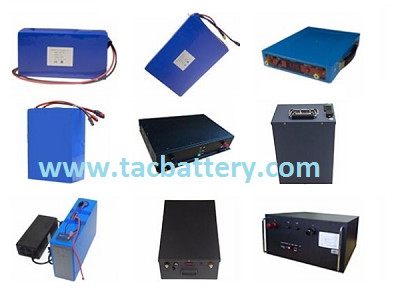

LiFePO4 Battery pack

More 12v Battery pack with IFR26650

Period of Warranty

The period of warranty is 12 months from the date of shipment. TAC guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.

Storing the Batteries

The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year to prevent over-discharge.
