High Capacity Electric Bike Battery Pack 12V 24Ah Without Housing

Rated Capacity: 24Ah; Nominal Voltage: 12V ,the battery pack assembled IFR26650 3000MAH 3.7V High power
The battery pack with high level battery manage system
Application for Solar Product and various portabel back up
Have a long cycle life about 2000 times.base on DOD 80%

No.	Item	Rated Performance		Remark
1	Rated Capacity	Typical	24AH	Standard discharge(0.2C C5A) after Standard charge
		Minimum	23.7AH
2	Nominal Voltage	14.8V		Mean Operation Voltage During Standard Discharge After Standard Charge
3	Voltage at end of Discharge	12V		Discharge Cut-off Voltage
4	Charging Voltage	16.8V
6	Standard charge	Constant Current 0.2C5A Constant Voltage 29.2V 0.05 C5A cut-off		Charge time : Approx 2.4.h
7	Standard discharge	Constant current 0.2 C5A end voltage 20.0V
8	Maximum Continuous Charge Current	5A
9	Maximum Continuous Discharge Current	10A
10	Operation Temperature Range	Charge: 0~45℃		60±25%R.H. Bare Cell
		Discharge: -20~60℃
11	Storage Temperature Range	Less than 1 year: 0~25℃		60±25%R.H. at the shipment state
		less than 3 months: -5~35℃
12	Weight	Approx 5.5KGg		PVC pack
13	Cell Dimension	High:90mm
		Width: 85mm
		Length: 265mm

Pictures:

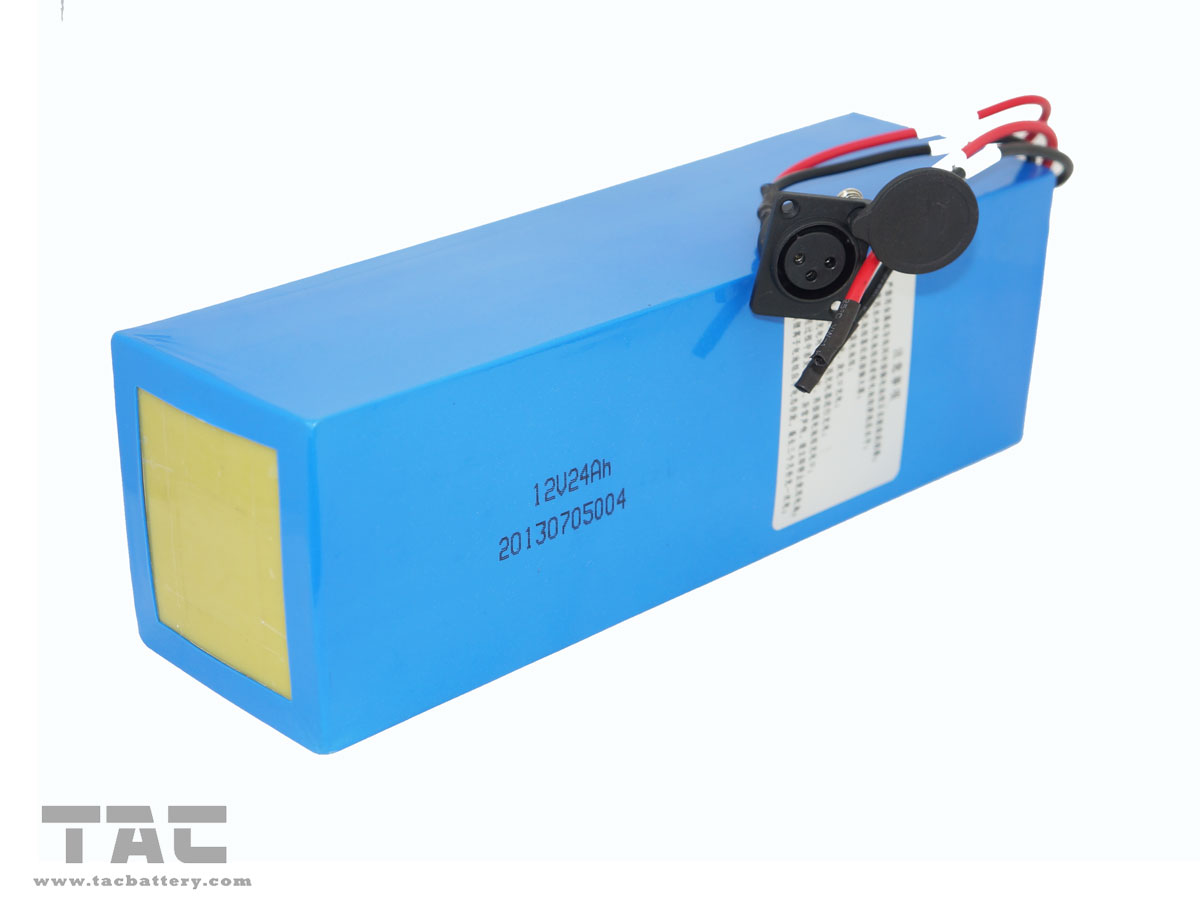

12V 24Ah Lifepo4 battery pack

lifepo4 battery pack

12v 24ah battery pack

No.	Items	Test Method and Condition	Criteria
1	Vibration test	After standard charging, fixed the cell to vibration table and subjected to vibration cycling that the frequency is to be varied at the rate of 1Hz per minute between 10Hz and 55Hz, the excursion of the vibration is 1.6mm. The cell shall be vibrated for 30 minutes per axis of x, y axes.	No leakage No fire No explosion
2	Drop test	The battery to be fully charged with standard charging condition, and dropped from a height of 1m to concrete floor for 6 times (+/- direction on x, y axes).	No leakage No fire No explosion
3	Impact test	The battery to be fully charged with standard charging condition, and put a rod with diameter = 15.8mm on the cell, and then heavy block (weight = 9.1Kg) crash on the cell from a certain height (height = 61.0cm).	No explosion No fire
4	Crush test	Cell is to be crushed between two flat surfaces, the crushing is to be continued until applied force of 13 kN, and once the maximum force has been obtained it is to be released. Measure its temperature and observe event.	No explosion No fire
5	Shock test	The battery to be fully charged with standard charging condition, and subjected to 6 shocks/axis, 18 total, of peak acceleration of 150g and pulse duration of 6 ms.	No explosion No fire No leakage
