Lithium Battery AAA 1.5V 1200mah Primary Battery Similar with
Energize
Quick Detail:
Place of Origin: | Guangdong China (Mainland) |
Brand Name: | TAC |
Model Name: | 1.5V LiFeS2 AAA 1100mAh Lithium iron Battery |
Other Name: | L92 AAA |
Nominal Voltage | 1.5V |
Nominal Capacity: | 1100mAh |
Size: | 10±0.5(D)*43.9±0.6(H))mm |
Weight: | 7.7g |
Packing & Delivery:
MOQ: | 1000pcs |
Packing: | Bulk Packing: 50 PCs/box, 20box/Carton, total 1000pcs/Carton, carton Size 325*177*190mm |
Delivery Detail: | Sample with stock 3 days after T/T Mass order with stock 7 days after T/T Mass order with stock 7 days after T/T
|
Specification for Lithium Battery AAA 1.5V 1200mah Primary Battery Similar with
Energize
No. | Items | Specification |
1 | Nominal Voltage | 1.5 V |
2 | Rated Capacity | 1100 mAh @ 300mA discharge |
3 | Working Voltage | 1.30V @ 100mA discharge |
4 | Max. Discharge Current | 1000 mA continuous |
5 | Discharge Cut-off Voltage | 0.80V |
6 | Volume | 3.8 cubic centimeters |
7 | Weight | Approx. 7.7 g |
8 | Lithium Content | Less than 0.5 gram per cell |
9 | Dimensions | Diameter: 10.0±0.5 mm |
Height: 43.9±0.6 mm |
10 | Operating Temp. | -20 ℃ to 60 ℃ |
11 | Storage Temp. | -20 ℃ to 40 ℃ |
12 | Storage Humidity | ≤75 % |
13 | Shell Life | 5 Years |
Features:
1. High energy density
2. High open circuit voltage
3. Wide range of operating temperature
4. Stable operating voltage and current
5. Long operating time
6. Low self-discharge rate (less than 2% per year at 20°C).
Main Applications :
1. Utility meter (water, electricity, gas meter,AMR)
2. Alarm or security equipment (smoke alarm system, detector)
3. GPS tracking
4. Teal time clock
5. Digital control machine
6. Military
7. Remote monitoring systems
8. Car electronics
9. Camera
Picture &Drawing:

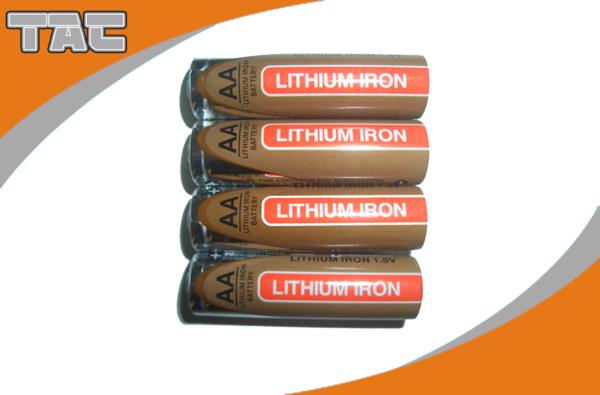

Battery Picture
TAC OEM R6 and R03 Model for
Cautions in use
To ensure proper use of the battery please read the manual
carefully before using it.
. Handling
- Do not expose to, dispose of the battery in fire.
- Do not put the battery in a charger or equipment with wrong
terminals connected.
- Avoid shorting the battery
- Avoid excessive physical shock or vibration.
- Do not disassemble or deform the battery.
- Do not immerse in water.
- Do not use the battery mixed with other different make, type, or
model batteries.
- Keep out of the reach of children.
. Storage
- Store the battery in a cool, dry and well-ventilated area.
. Disposal
- Regulations vary for different countries.
- Dispose of in accordance with local regulations.
Battery operation instruction
Discharging current
The discharging current does not have to surpass this specification
book stipulation the biggest discharging current, the over sized
electric current electric discharge can cause the battery capacity
play to reduce and to cause the battery heat.
Electric discharge temperature
The battery discharge must carry on in the ambient temperature
scope which this specification book stipulated.
Storing the Batteries
The battery should store in the product specification book
stipulation temperature range. If has surpasses above for six
months the long time storage, the discharge capacity will decrease
sharply.
Period of Warranty
one year
Because batteries utilize a chemical reaction, battery performance
will deteriorate over time even if stored for a long period of time
without being used. In addition, if the various usage conditions
such as discharge, ambient temperature, are not maintained within
the specified ranges the life expectancy of the battery may be
shortened or the device in which the battery is used may be damaged
by electrolyte leakage. Please change the battery in time.
