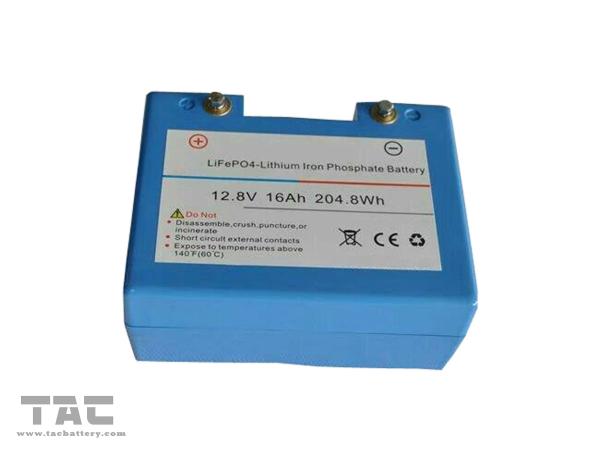

LiFePO4 Battery 12.8V16Ah Lithium ion Battery for Golf Trolley

Features For LiFePO4 Battery 12.8V16Ah Lithium ion Battery for Golf Trolley

1.LiFePO4 Battery 12.8V16Ah 208.4Wh Lithium ion Battery

2. Solar System, Wind System and Other ESS used Lithium ion Battery Pack

3. Large energy density

4. Long cycle life 2000 times ,and low self discharge

5. No pollution,eco-friendly ,all raw material passed Reach

6. Improved safety with BMS

7. Good high-temperature performance meet specially require

8. MOQ: 50set

Quick Detail for LiFePO4 Battery 12.8V16Ah Lithium ion Battery for Golf Trolley

Packaging & Delivery

Packaging Details:	standard package for lithium ion battery packs
Delivery Detail:	shipped in 5 days after payment

LiFePO4 Battery 12.8V16Ah 208.4Wh Lithium ion Battery Specification:

No.	Item	General Parameter	Remark
1	Rated Capacity	16.0Ah	Standard discharge(0.2 C5)after standard charge(0.2 C5)
2	Minimal Rated Capacity	16.0Ah	Standard discharge(0.2 C5)after standard charge(0.2 C5)
3	Nominal Voltage	12.8V
4	Cycle Life	Higher than 60% of the Initial Capacity of the Cells	Charge: CC @0.2C to 14.6V, then CV till current to 0.05C Rest: 30min. Discharge: 0.2C to 10.0V Temperature:20±5°C Carry out 2000cycles
5	Discharge cut-off voltage	9.2V	10.0V( recommended) 10.0V
6	Charging cut-off voltage	14.8V	14.6V (recommended)

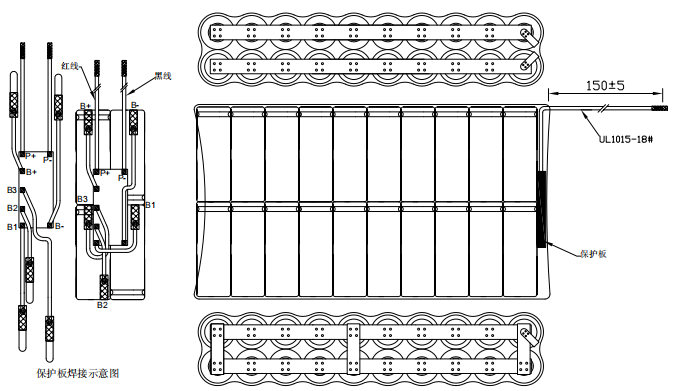

7	Cell and assembly method	IFR26650EC-3.3AH	4S5P
8	Housing material	ABS+PC
9	size:	L168W75H128mm

No.	Item	General Parameter	Remark
9	Standard charge	0.2C constant current(CC) charge to 14.6V,then constant voltage (CV)14.6V charge till charge current decline to ≤0.05C	Charge time : Approx 7h
10	Standard discharge	Constant current 0.2C Cut-off voltage 10.0V
11	Maximum Charge Current	7A
12	Continuous Discharge Current	7A
13	Operation Temperature Range	Charge: 0~45℃	60±25%R.H.
13	Operation Temperature Range	Discharge: -10~60℃	60±25%R.H.
14	Storage Temperature Range	Less than 1 year : 0~25℃ 0~25℃)	60±25%R.H. at the shipment state
14	Storage Temperature Range	Less than 3 months:-5~35℃ -5~35℃)	60±25%R.H. at the shipment state
15	Weight	Approx/: 1.80Kg
16	Max. Dimension	thickness/:33mm
		Width/: 133mm
		Length/: 272mm
