High Energy Density 3.0V CR2 Primary SP Li-Mn Battery For Sighting Telescope

Ask Lasest Price
Brand Name :	TAC
Model Number :	3.0V CR2
Certification :	MSDS REACH
Price :	USD 2-10
Payment Terms :	TT/Paypal/LC
Supply Ability :	1000000PCS/Month
Delivery Time :	7-10 days after order confirm

Add to Cart

Product Details
Company Profile

High Energy Density 3.0V CR2 Primary SP Li-Mn Battery For Sighting Telescope

3.0V Li-MnO2 Primary SP Lithium Battery CR2 for Sighting Telescope

Features:

1. High energy density
2. High open circuit voltage
3. Wide range of operating temperature
4. Stable operating voltage and current
5. Long operating time
6. Low self-discharge rate (less than 2% per year at 20°C).

Specificaiton for 3.0V Li-MnO2 Primary SP Lithium Battery CR2 for Sighting Telescope

No.	Items		Specification
1	Nominal Voltage		3.0 V
2	Capacity (Discharge Current 1mA to 2.0V)	Nominal	900 mAh
		Minimum	850 mAh
3	Max. Discharge Current	Continuous	100 mA
		Pulse	400 mA
4	Discharge Cut-off Voltage		2.0 V
5	Weight		Approx. 11.5 g
6	Operating Temperature		-40 ℃ to 60 ℃
7	Storage Temperature		-10 ℃ to 40 ℃
8	Relative humidity		65±20%
9	Period of Validity		5 years
10	Note:Polyswitch is inside the cell.

Main Applications :

1. Utility meter (water, electricity, gas meter,AMR)
2. Alarm or security equipment (smoke alarm system, detector)
3. GPS tracking
4. Teal time clock
5. Digital control machine
6. Military
7. Remote monitoring systems
8. Car electronics
9. Camera
10. Sighting Telescope

Drawing for CR2 900MAH

Items	Description	Dimension
D	Diameter	Max 15.6mm
T	Height	Max 27.0mm

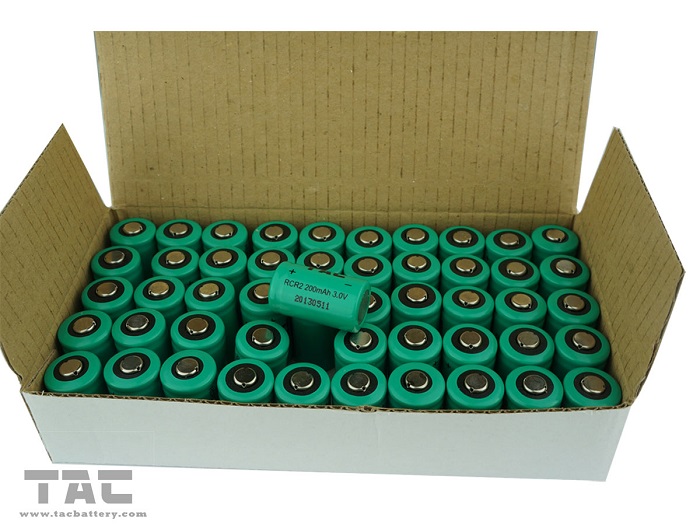

Pack Manner

The battery put into stronge inner box , 8 box for one carton as below

Delivery date

7 days for normal packing after the buyer confirm the order

20 days for OEM order

The Lithium Manganese Dioxide battery (Li-MnO2 battery) is high-reliability and light weight battery with 3.0V operating voltage and the ability to operate over a wide temperature range(-20℃-60℃). It has a wide range of applications, such as various meters, utility meters, main-framecomputers, PCs, wireless communication, asset tracing, earth detector, digital control machine, portable communication equipment, military radio stations and other electric powered devices.

Other Size for CR Li-Mn Battery

Model	Size	Nominal Voltage (V)	Nominal Capacity (mAh)	Standard Discharge Current (mA)	Max.Discharge Current(mA)		Dimension (mm)		Approx. Weight (g)
Model	Size	Nominal Voltage (V)	Nominal Capacity (mAh)	Standard Discharge Current (mA)	Continuous	Pulse	Diameter	Height	Approx. Weight (g)
CR425	--	3.0	25	1	2	5	4.2	25.9	0.62
CR435	--	3.0	50	1	2	5	4.2	35.9	0.95
CR08200	--	3.0	130	1	20	80	8.5	19.9	3.6
CR08500	--	3.0	310	1	20	80	8.5	49.9	6
CR14230	1/2AA	3.0	600	5	800	1500	14.5	23	9
CR14250	1/2AA	3.0	600	5	800	1500	14.5	25	10
CR14335	2/3AA	3.0	800	5	1000	2000	14.5	33.5	14
CR14505	AA	3.0	1400	10	2000	3000	14.5	50.5	21
2CR14505	CRV3	3.0	3000	10	1000	3000	14.528.551.8		37
CR15270	CR2	3.0	800	10	1000	2000	15.1	26.9	11
CR17345	CR123A	3.0	1300	10	2000	3000	17	34.5	17
CR17335	2/3A	3.0	1300	10	2000	3000	17	33.5	17
CR17450	--	3.0	2000	10	2000	3000	17	45	30
CR17505	A	3.0	2300	10	2000	3000	17	50.5	30
CR18505	--	3.0	2400	10	2000	3000	18	50.5	35
CR26500	C	3.0	5200	10	2000	3000	26	50.5	62
CR34615	D	3.0	12000	10	2000	3000	34	61.5	125
2CR17335	2CR5	6.0	1300	10	2000	3000	34.017.045.0		37
2CR17345	CR-P2	6.0	1300	10	2000	3000	35.819.534.8		37
CR1/3N	1/3N	3.0	170	3	5	80	11.5	10.5	3.3
2CR1/3N	--	6.0	170	3	5	80	12.8	15.6	8.6
CR9V	--	9.0	600	1	100	400	26.517.549.0		31
CR9V	--	9.0	1150	1	115	400	26.517.549.0		34
CR234044	--	3.0	600	5	100	300	2.34044		5.9
CR052835	--	3.0	50	1	20	50	0.55283.5		0.8

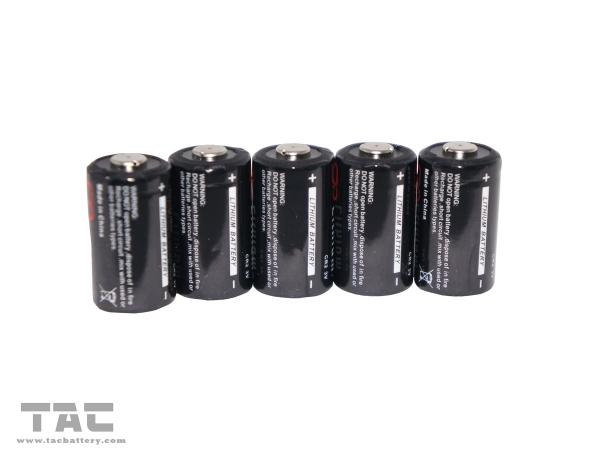

The Picture for 3.0V CR2 Primary SP Li-Mn Battery For Sighting Telescope

Date Of Delivery

10 days after order confirm

30 days for OEM order
