Brand Name :	TAC OEM & ODM
Model Number :	12V 36AH
Certification :	MSDS REACH ROHS
Price :	usd 100
Payment Terms :	100% prepaid before shipping out
Supply Ability :	100000PCS EACH WEEK
Delivery Time :	7-10 days after order confirm for stock model
MOQ :	100SET

Add to Cart

Quick Detail:

No.	Items	Specifications		Remark
1	Nominal Capacity	3300mAh		0.2C Standard discharge
2	Minimum Capacity	2250mAh		0.2C Standard discharge
3	Nominal Voltage	3.2V		Mean Operation Voltage
4	Delivery voltage	3.2~3.3V		Within 10 days from Factory
5	Charge Voltage	3.65V±0.03V		By standard charge method
7	Charge current	0.2C	600mA	Standard charge, charge time about 6h(Ref)
7	Charge current	0.5C	1500mA	Rapid Charge, charge time about: 3h(Ref)
9	Cell Internal Impedance	≤40mΩ		Internal resistance measured at AC 1KHZ after 50% charge

10	Standard discharge	Constant current 0.2C Cut-off voltage 10.0V
11	Maximum Charge Current	3A
12	Continuous Discharge Current	3A
13	Operation Temperature Range	Charge: 0~45℃	60±25%R.H.
13	Operation Temperature Range	Discharge: -10~60℃	60±25%R.H.
14	Storage Temperature Range	Less than 1 year : 0~25℃	60±25%R.H. at the shipment state
14	Storage Temperature Range	Less than 3 months:-5~35℃	60±25%R.H. at the shipment state
15	Weight	Approx/: 2.20Kg

Battery Packs Specification

No.	Items/项目	Specifications/规格		Remark 备注
1	Nominal Capacity 标称容量	36Ah		0.2C Standard discharge 0.2C 标准放电
2	Minimum Capacity 最小容量	35.5Ah		0.2C Standard discharge 0.2C 标准放电
3	Nominal Voltage 标称电压	12.8V		Mean Operation Voltage 即工作电压
4	Charge Voltage 充电电压	14.6V±0.03V		By standard charge method 标准充电方式
5	Standard charging method 标准充电方式	0.2C constant current,14.6V constant voltage charge to 14.6V,continue charging till current decline to ≤0.01C		0.2C恒流14.6V恒压充至电流≤0.01C ,时间约6h-7h(供参考)
6	Charge current 充电电流	0.2C	7A	Standard charge, charge time about 6h(Ref) 标准充电,时间约6h(供参考)
7	Standard discharging method 标准放电方式	0.2C constant current discharge to8.0V,		0.2C恒流放电至8.0V
9	Battery Internal Impedance 电池内阻	≤150mΩ		Internal resistance measured at AC 1KHZ after 50% charge 半电态下用交流法测量内阻

Application:

12.8V 6AH 9AH 12AH 15AH 18AH 20AH 24AH 27AH 30AH 36AH 40AH 60AH 80AH
Solar street Light batteries, Lithium iron phosphate batteries, Ternary lithium battery
E-Bike, E-Mobility, E-Tool, E-Car and Other EV used Lithium ion Battery Pack
Super Capacitor including Coin/Button Type and Cylindrical Type
LiFePO4 / NiCoMn Li ion Cell
LiFePO4 / NiCoMn Lithium ion Battery Pack

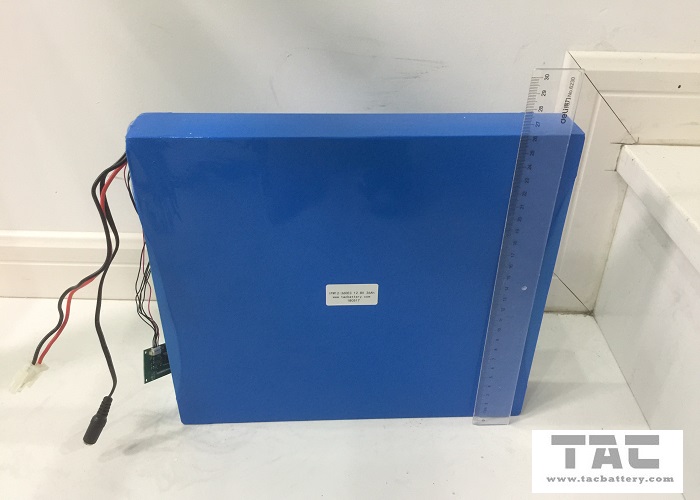

NO	Items	Units: mm		Remark
1	Thickness/厚度	T	45	Max.
2	Width/宽度	W	307	Max
3	Height/长度	H	268	Max
4	Cable Length display/ 显示器引线长度	L1	300±3
5	Cable Length of charging /放电引线长	L2	200±3
	Cable Length of discharging/充电引线长	L3	200±3
6	Weight/重量	kg	4.3kg	Max
7	Printing/喷码	IFM12-360E3 12.8V 3.3Ah www.tacbattery.com YYMMDD

The battery pack were packed with UN38.3 Rules

Most of the single model have passed UL1642, and part of them passed UL2054

All materials passed Reach Rohs
