3.6v Lisocl2 Battery ER26500 9AH With connector for Water meter
Ammeter
Specification for 3.6v Lisocl2 Battery ER26500 9AH With connector
for Water meter Ammeter
1) Nominal voltage: 3.6V
2) Nominal capacity: 9000mAh(2mA / 2.0V)
3)Discharge end-voltage: 2.0V
4) Max constant discharge current: 200mA
5)Max. pulse current: 400mA
6) Ambient temperature range: -55~ +85℃
7) Storage life: ≥10 year, Yearly self-discharge ≤ 1%
Appearance & Dimension/Weight
1) Appearance: Cylinder
2) Max dimension : φ26.2mm×h50.0mm
3) Max weight: 55g
Detail information
| Item | Measuring Procedure | Standard |
| 1.Appearance | Visual check | Clean, unscratched and clearly labeled |
| 2.Dimenaions | Measured by calipers with precision of 0.02mm | Max φ26.2×50.0mm |
| 3.Weight | Weighed by balance with precision of 0.1g | Max 55g |
| 4.Open-circuit voltage | Measure by volt-meter with precision of 0.01V | ≥3.65V |
| 5.Operating voltage | Measure by volt-meter with precision of 0.01V, connecting an
impedance of 330Ωin series, Reaching the target voltage in 5
seconds. | ≥3.45V |
| 6.Nominal discharge | 330Ω,20±2℃, Constant discharge to 2.0V. | ≥7500mAh |
| 7.Rapid discharge | 62Ω,20±2℃, Constant discharge to 2.0V. | ≥6500mAh |
| 8. Discharge at high temperature | Put battery in constant ambient temperature of 55±2℃ for 16 hours,
discharge at 330Ω to 2.0V/cell. | ≥7800mAh |
| 9.Discharge at low temperature | Put battery in constant ambient temperature of -40±2℃ for 16 hours,
discharge at 1200Ω to 2.0V/cell | ≥4800mAh |
| 10.Charge | Prohibited | Prohibited |
| 11.Over-discharge | Prohibited | Prohibited |
| 12.Self discharge | Store the batteries at constant temperature of 20±5℃, Measure the
nominal capacity yearly for 10 years. | ≤1% |
Size of single cell : Max dimension : φ26.5mm× H50.5 mm
If you have bought ER battery from other supplier, pls take close
attention to max size
in order to avoid the size over your space limit
Features:
Fire,explosion and severe burn hazard.Do not
recharge,crush,disassemble heat above100℃, Incinerate, or expose
contents to water . Do not solder directly to the cell
Similar ER Production:
ER9V
ER10450
ER14250
ER14250AX
ER14335
ER14250
ER17335
ER17505
ER18505
ER34615
Trade term
Price term: FOB
(Shenzhen/Guangzhou/HongKong/Shanghai),Ex-works.CIF,C&F.........
Payment term: 30%TT in advance and the balance 70% against copy of
B/L,
30%TT in advance and the balance before shipment
30%TT and 70% LC at sight.
time: 20-25 working days after receiving deposite and all the
design.
Brand: TAC or OEM
MOQ: If TAC Logo

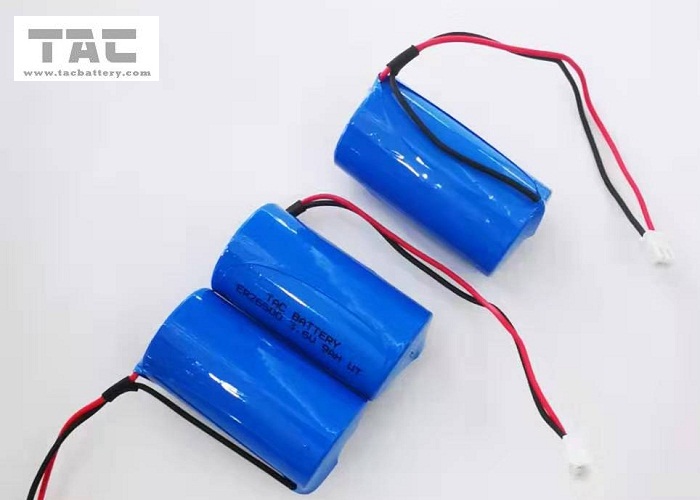

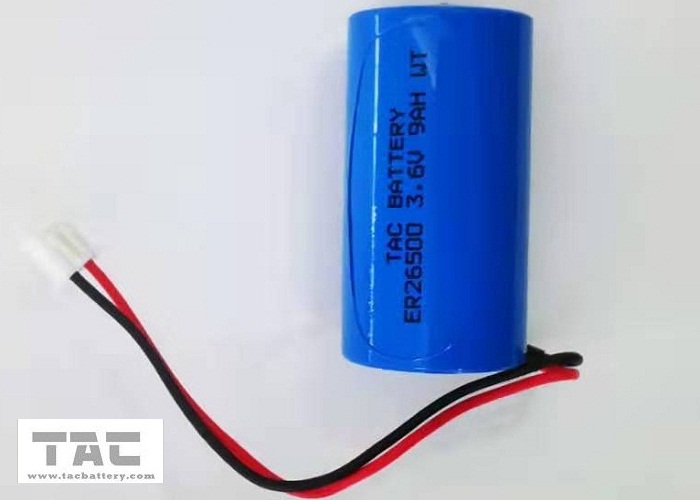

Picture for 3.6v Lisocl2 Battery ER26500 9AH With connector for
Water meter Ammeter
