Primary 3.0V CR123A 1600mah Li-MnO2 Battery for Gps Tracking
Electrical Mater
Specification for
Primary 3.0V CR123A 1600mah Li-MnO2 Battery for Gps Tracking
Electrical Mater
No. | Items | Specification |
1 | Nominal Voltage | 3.0 V |
2 | Rated Capacity | 1600 mAh with 100 ohm load |
3 | Minimal capacity | 1600 mAh with 100 ohm load |
4 | Max. Discharge Current | 1500 mA continuous |
|
| 3000 mA pulse |
5 | Discharge Cut-off Voltage | 2.0 V |
6 | Weight | Approx. 16 g |
7 8 | Dimensions | Diameter: 16.7±0.3 mm |
Height: 34.2±0.3 mm |
| Operating Temp. | -20 ℃ to 60 ℃ |
9 | Storage Temp. ＜1 year | -10 ℃ to 40 ℃ |
10 | Storage Temp. ＜3 months | -20 ℃ to 60 ℃ |
11 | Note:Poly-switch(PTC:144)is inside the cell. |
Main Applications :
Intelligent Instrument and Meter
Memory and Standby power
Wireless Alarm Sensor and Remote
Monitor Systems
Automotive Electronic Toll Collection
Electronic Toll Collection
Military Devices
Similar Model for 3.0V CR123A 1600mah Li-MnO2 Battery
| Model | Nominal Voltage(v) | Nominal Capacity(mAh) | Discharge Capacity(mAh) | End Voltage(v) | Demension | Reference Weight(g) | Operationg Temperature(°c) |
| Max. Diameter | Max. Height |
| CR14250 | 3 | 650 | 10 | 2 | 14.5 | 25 | 10 | -20~60 |
| CR14505 | 3 | 1500 | 10 | 2 | 14.5 | 50.5 | 17 | -20~60 |
| CR17335 | 3 | 1500 | 10 | 2 | 17 | 33.5 | 16 | -20~60 |
| CR17450 | 3 | 2000 | 10 | 2 | 17 | 45 | 25 | -20~60 |
| CR17505 | 3 | 2300 | 10 | 2 | 17 | 50.5 | 28 | -20~60 |
| CR123A | 3 | 1500 | 10 | 2 | 17 | 34.5 | 16 | -20~60 |

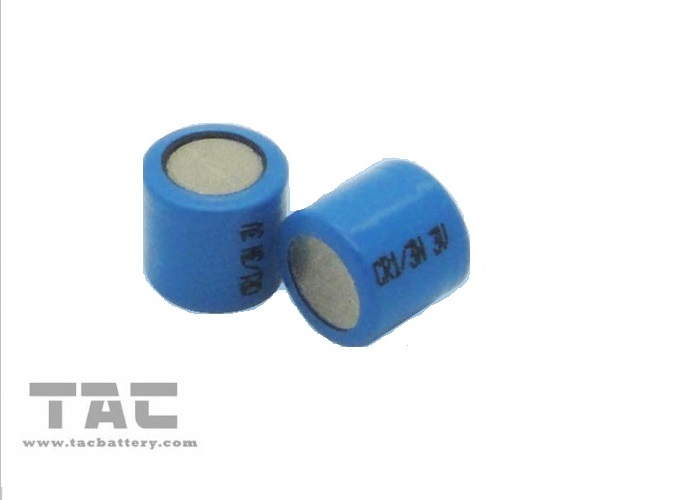

| CR1/3N | 3 | 160 | 2 | 2 | 1.6 | 10.8 | 3.3 | -20~60 |
| CR2 | 3 | 850 | 10 | 2 | 15.6 | 27.0 | 11 | -20~60 |
Package for Li-MnO2 Battery Cell
Features and Advantages:
1. Long cycle life : 5 YEARS
2. Reliable quality :
3. Low selfdischarge: 2% after stock 1 years
4. High power: 3000 mA pulse
5. Environmental friendly : pass Rohs
6. Wide working temperature range : (-45 ~ 85°c)
7. Excellent safety characteristics : non rechargeable
8. Suitable for large current :1500 mA continuous
Caution:
Do not make the battery short-circuit, charge, press, dissemble,
burn or forcibly it;
Do not use new and used batteries together or mix different types
of batteries;
Do not reverse the positive and negative pole of battery while
using it;
Do not solder directly on the battery
Production Photos
Similar Production for Primary 3.0V
If you need rechargeable cell with same size , pls check the model LIR17335 750MAH 3.7V
