CR2 3V 900mAH LiMnO2 Primary Lithium Battery for GPS Security
System
Specification for CR2 3V 900mAH LiMnO2 Primary Lithium Battery for GPS Security
System
| No. | Items | Specification |
| 1 | Nominal Voltage | 3.0 V |
| 2 | Capacity (Discharge Current 1mA to 2.0V) | Nominal | 900 mAh |
| Minimum | 850 mAh |
| 3 | Max. Discharge Current | Continuous | 100 mA |
| Pulse | 400 mA |
| 4 | Discharge Cut-off Voltage | 2.0 V |
| 5 | Weight | Approx. 11.5 g |
| 6 | Operating Temperature | -40 ℃ to 60 ℃ |
| 7 | Storage Temperature | -10 ℃ to 40 ℃ |
| 8 | Relative humidity | 65±20% |
| 9 | Period of Validity | 5 years |
| 10 | Note:Polyswitch is inside the cell. |
Hermetically sealed construction
- Internal construction: spiral
- Model: CR2
- Nominal voltage:3.0V
- Nominal capacity: 900mAh
- Standard discharge current: 10mA
- Max continuous current: 800mA
- Maximum pulse current: 1500mA
- Operating temperature range: -40 to 70°C
- Maximum dimensions: Ø15.5 x 27.0mm
- Weight: 11.0g
- Internal construction: spiral
- Lifetime: 5-10 years
Features:
High and stable operating voltage :3.0V
High energy density : 3 to 10 times higher than other non-lithium
batteries
Wide operating temperature range:-40 ℃ to 60 ℃
Low self-discharge rate:Less than 1% per year at room temperature
Long shelf life: 90% capacity remaining after 10 years’ storage at
20°C
Superior leakage resistance
Extremely safe :passed (MH45237/MH49306),UN38.3,CE and RoHS
certificated.
Environmental protection : Don’t contain toxic materials, noxious
liquids or gases
Application:
Intelligent instruments,
smoke detector,
security device,
signal lights and post indicator transfer,
devices, Lighting,
Medical equipment,
Wireless and other equipment,
water, gas and electricity meters,
memory backup power sources,
archery tracer nock
Shipping and Payment
1 Price term: FOB
(Shenzhen/Guangzhou/HongKong/Shanghai),Ex-works.CIF,C&F.
2. Payment term:30%TT in advance and the balance 70% against copy
of B/L,or
30%TT in advance and the balance before shipment,or 30%TT and 70%
LC at sight.
3. Delivery time: 3-25 days after getting deposite.If OEM
4.Brand: TAC or OEM

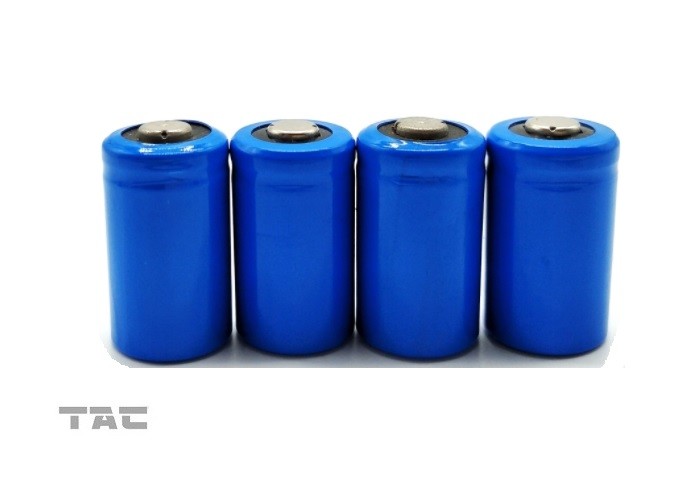

PICTURE FOR CR2 3.0V:
LiMnO2 Primary Lithium Battery Production List
| Model | Nominal
Voltage
(V) | Nominal
Capacity
(mAh) | Standard
Discharge
current(mA) | End
Voltage
(V) | Max.
Diameter
(mm) | Max.
Height
(mm) | Reference
Weight
(g) | TestTemperature
(°C) |
| CR14250 | 3v | 650.0 | 10 | 2 | 14.5 | 25.0 | 10 | 23±3 |
| CR14335 | 3v | 800.0 | 10 | 2 | 14.5 | 33.5 | | 23±3 |
| CR14505 | 3v | 1400.0 | 10 | 2 | 14.5 | 50.5 | 17 | 23±3 |
| CR17335 | 3v | 1300.0 | 10 | 2 | 17.0 | 33.5 | 16 | 23±3 |
| CR17450 | 3v | 2000.0 | 10 | 2 | 17.0 | 45.0 | 25 | 23±3 |
| CR17505 | 3v | 2300.0 | 10 | 2 | 17.0 | 50.5 | 28 | 23±3 |
| CR17345 (CR123A) | 3v | 1400.0 | 10 | 2 | 17.0 | 34.5 | 16 | 23±3 |
| CR11108 (CR1/3N) | 3v | 160.0 | 1 | 2 | 11.6 | 10.8 | 3.3 | 23±3 |
| CR15H270 (CR2) | 3v | 850.0 | 10 | 2 | 15.6 | 27.0 | 11 | 23±3 |
| CR-P2 | 6v | 1400.0 | 10 | 4 | 34.8X35.8X19.5 | 34 | 23±3 |
| 2CR5 | 6v | 1400.0 | 10 | 4 | 34X45X17 | 34 | 23±3 |
| CR-V3 | 6v | 3000.0 | 20 | 2 | 29X14.5X52 | 34 | 23±3 |
