Lithium Car Battery , 18650 11.1V 6.6Ah LI-ION Battery Pack for Car Power Tool

Ask Lasest Price
Brand Name :	TAC
Model Number :	11.1V 6.6Ah 18650
Certification :	ROHS, REACH
Price :	USD 20-25
Payment Terms :	TT, LC, Paypal, etc
Supply Ability :	100000Piece/days
Delivery Time :	20 DAYS after order confirm

Add to Cart

Product Details
Company Profile

Lithium Car Battery , 18650 11.1V 6.6Ah LI-ION Battery Pack for Car Power Tool

Lithium Car Battery 18650 11.1V 6.6Ah LI-ION battery pack for Car Power Tool

Specification for Lithium Car Battery 18650 11.1V 6.6Ah LI-ION battery pack for Car Power Tool

Item	General Parameter		Remark
Rated Capacity	Typical	6600mAh	Standard discharge(0.2C5A) after Standard charge
	Minimum	6500mAh
Nominal Voltage	11.1V		Mean Operation Voltage
Voltage at end of Discharge	9.0V		Discharge Cut-off Voltage
Charging Voltage	12.6±0.03V
Internal Impedance	120≤ mΩ		Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times
Standard charge	Constant Current 0.2C5A Constant Voltage 12.6V 0.01 C5A cut-off
Standard discharge	Constant current 0.2C5A end voltage 9.0V

Electronic Performance for Lithium Car Battery 18650 11.1V 6.6Ah LI-ION battery pack for Car Power Tool

Item	General Parameter	Remark
Fast charge	Constant Current 1C5A Constant Voltage 12.6V 0.01 C5A cut-off
Fast discharge	Constant current 4A end voltage 9.0V
Maximum Continuous Charge Current	1 C5A
Maximum Continuous Discharge Current	6.6A	Pulse 19.8A
Operation Temperature Range	Charge: 0~45℃	60±25%R.H. Bare Cell
Operation Temperature Range	Discharge: -20~60℃	60±25%R.H. Bare Cell
Storage Temperature Range	Less than 1 year: -20~25℃	60±25%R.H. at the shipment state
	less than 3 months: -20~40℃
	Less than 7 day : -20~65℃
Pack Dimension	High/:Max71.0mm	Initial Dimension
	Width/:Max60.0mm
	Thickness/: Max60.0mm

Application for Lithium Car Battery 18650 11.1V 6.6Ah LI-ION battery pack for Car Power Tool

Standard Test Conditions

Test should be conducted with new batteries within one week after shipment from our factory and the cells shall not be cycled more than five times before the test. Unless otherwise specified, test and measurement shall be done under temperature of 25±5℃ and relative humidity of 45~85%. If it is judged that the test results are not affected by such conditions, the tests may be conducted at temperature 15~30℃ and humidity 25~85%RH.

Temperature Dependence of discharge capacity

Cells shall be charged per 3.3.1 and discharged @0.2 C₅A to 9.0 volts. Except to be discharged at temperatures per Table 3. Cells shall be stored for 3 hours at the test temperature prior to discharging and then shall be discharged at the test temperature. The capacity of a cell at each temperature shall be compared to the capacity achieved at 23 ºC and the percentage shall be calculated. Each cell shall meet standard require

Handling For Lithium Car Battery 18650 11.1V 6.6Ah LI-ION battery pack for Car Power Tool

Do not expose to, dispose of the battery in fire.
Do not put the battery in a charger or equipment with wrong terminals connected.
Avoid shorting the battery
Avoid excessive physical shock or vibration.
Do not disassemble or deform the battery.
Do not immerse in water.

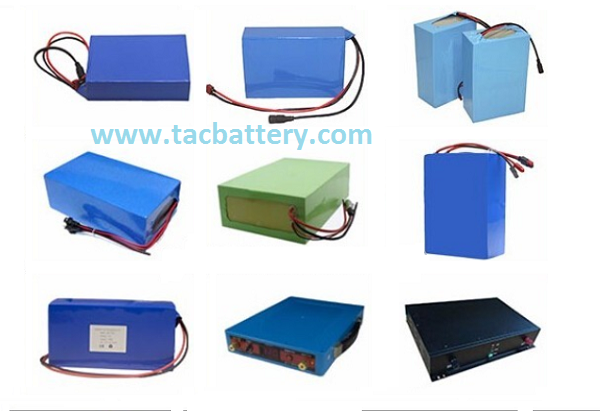

Product photos

Packing Detail
