High Power LiFePO4 Battery Pack IFR26650 4S1P 12.8V 2300mAh For Air
Pump
MOQ & Delivery:
MOQ: | 100pcs |
Delivery Detail: | Sample with stock 3 days after T/T Mass order with stock 7 days after T/T Mass order with stock 7 days after T/T
|
Packing Picture
The battery packed with specially sponge shelf one by one
and then put into standard export paper carton
Detail data for LiFePO4 battery pack IFR26650 4S1P 12.8V 2300mAh
For Solar Light
No. | Item | General Parameter
| Remark |
1 | Rated Capacity
| 2.3Ah | Standard discharge(0.5C)after standard charge(0.5C)
|
2 | Minimal Rated Capacity | 2.1Ah |
3 | Nominal Voltage | 12.8V |
|
4 | Cycle Life
| Higher than 60% of the Initial Capacity of the Cells | ◆Charge: CC@0.5C to 14.6V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.5C to 10.0V ◆Temperature:20±5℃ ◆Carry out 800cycles |
5 | Discharge cut-off voltage | none | No over-discharge protection,10.0V recommended |
6 | Charging cut-off voltage
| none | No over-charge protection,14.6V recommended |
7 | Cell and assembly method
| IFR26650P-2.3AH | 4S1P |
8 | Packing material | PVC |
|
Charge And Discharge Performance
Continuous the table 1 No.
| Item
| General Parameter | Remark | 9 | Standard charge
| 0.5C constant current(CC) charge to 14.6V,then constant voltage
(CC)14.6V charge till charge current decline to ≤0.05C | Charge time : Approx 3.5h
| 10 | Standard discharge
| Constant current 0.5C Cut-off voltage 10.0V |
| 11 | Maximum Charge Current | 2.3A |
| 12 | Maximum Discharge Current
| 23A | The surface of the battery pack do not exceed 65℃ | 13 | Operation Temperature Range
| Charge: 0~45℃ | 60±25%R.H.
| Discharge: -10~50℃ | 14 | Storage Temperature Range
| Less than 1 year : 0~25℃
| 60±25%R.H. at the shipment state | Less than 3 months:-5~35℃
| 15 | Weight
| Approx: 380.0g±10.0g |
| 16 | Pack Dimension
| High:79mm |
| Width: 28mm | Length: 103mm |
|
Features for LiFePO4 Battery Pack IFR26650 4S1P 12.8V 2300mAh For
Solar Light
1. High energy density
2. High open circuit voltage
3. Wide range of operating temperature
4. Stable operating voltage and current
5. Long operating time
6. Low self-discharge rate (less than 2% per year at 20°C).
7.There are two type for this design , one is IFR26650 2300MAH
12.8V Support 23AH, the other is IFR26650 3300MAH 12.8V Support
Peak 9A
8.The battery pack with UN38.3 certification
Main Applications :
1. Utility meter (water, electricity, gas meter,AMR)
2. Alarm or security equipment (smoke alarm system, detector)
3. GPS tracking
4. Teal time clock
5. Digital control machine
6. Military
7. Remote monitoring systems
8. Car electronics

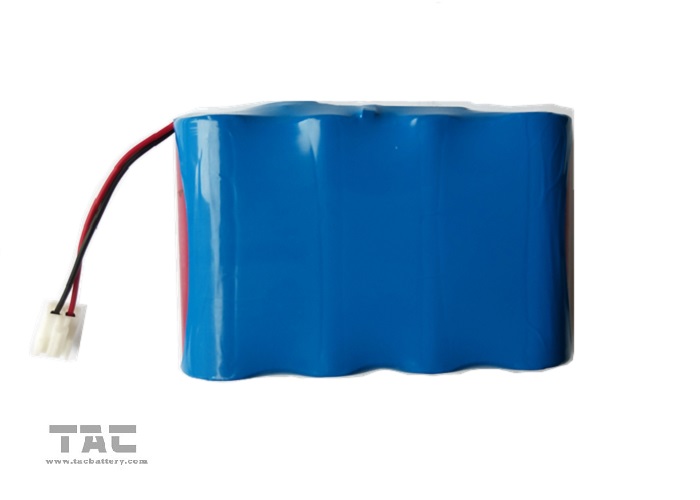

Picture&Drawing:
Battery operation instruction
Discharging current
The discharging current does not have to surpass this specification
book stipulation the biggest discharging current, the over sized
electric current electric discharge can cause the battery capacity
play to reduce and to cause the battery heat.
Electric discharge temperature
The battery discharge must carry on in the ambient temperature
scope which this specification book stipulated.
Storing the Batteries
The battery should store in the product specification book
stipulation temperature range. If has surpasses above for six
months the long time storage, the discharge capacity will decrease
sharply.
Period of Warranty
normally one year
Because batteries utilize a chemical reaction, battery performance
will deteriorate over time even if stored for a long period of time
without being used. In addition, if the various usage conditions
such as discharge, ambient temperature, are not maintained within
the specified ranges the life expectancy of the battery may be
shortened or the device in which the battery is used may be damaged
by electrolyte leakage. Please change the battery in time.
similar photos
We can support more 12.8V battery pack as below
