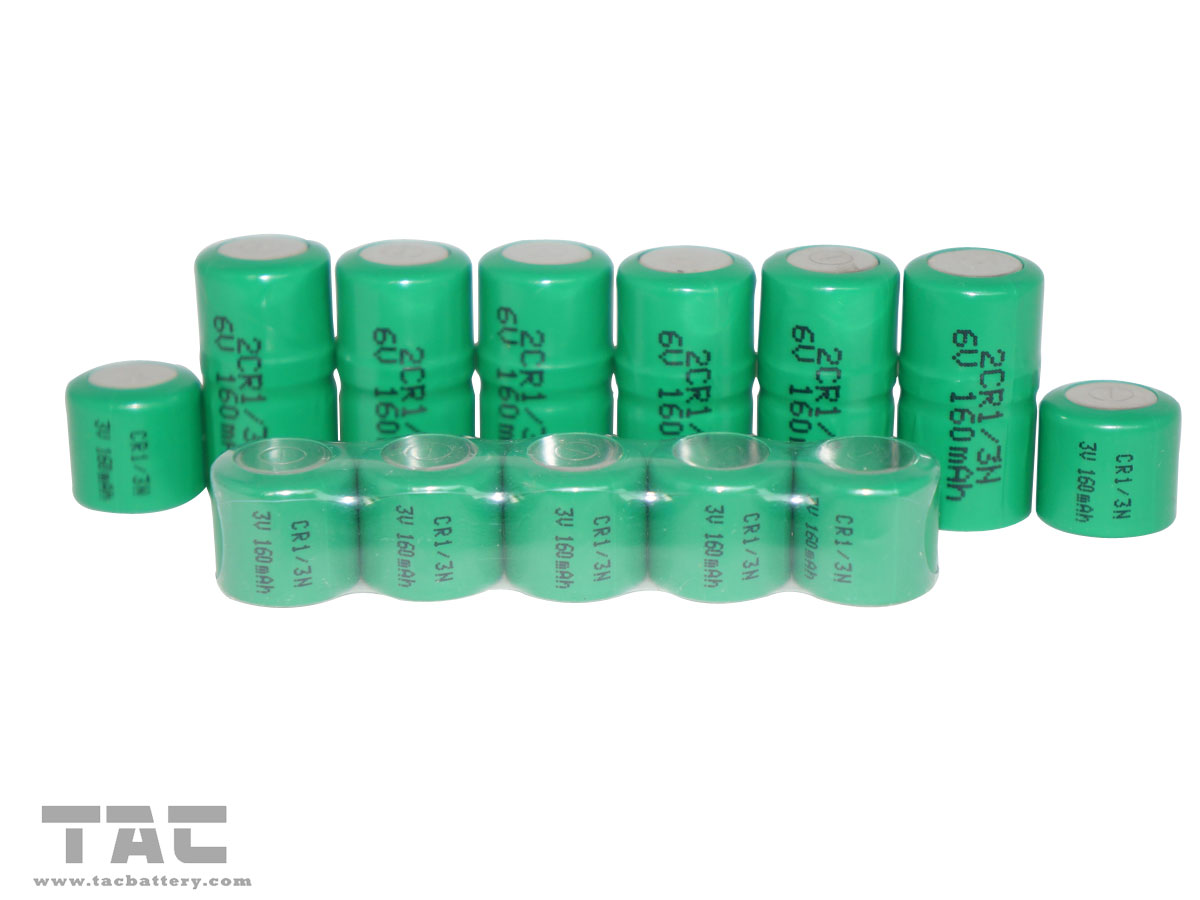

Primary Lithium Battery 3.0V CR11108 160mAh For Burglar Alarm
Specification FOR Primary Lithium Battery 3.0V CR11108 160mAh For
Burglar Alarm
| No. | Items | Specification |
| 1 | Nominal Voltage | 3.0V |
| 2 | Rated Capacity | 160mAh |
| 3 | Minimal capacity | 150mAh |
| 4 | Max. Discharge Current | 5mA continuous |
| 80mA pulse |
| 5 | Discharge Cut-off Voltage | 2.0 V |
| 6 | Weight | Approx.3.3 g |
| 7 | Dimensions | Diameter (11.5±0.2)*Height(10.5±0.2)mm |
| 8 | Operatin
Temp. | -40 ℃to 60 ℃ |
| 9 | Storage Temp. ＜1 year | -10 ℃to 40 ℃ |
| 10 | Storage Temp. ＜3 months | -40 ℃to 60 ℃ |
| 11 | Whether installs the PTC | NO |
Packing & Delivery:
- 50 PCs/box, 20box/Carton, total 1000pcs/Carton, carton Size
325*177*190mm
- Sample with stock 3 days after T/T,Mass order with stock 7 days
after T/T
Features:
1. High energy density than normal primary battery
2. 3.0v High open circuit voltage than normal alkaline battery
3. Wide range of operating temperature ,suitable for low or high
temperature situation
4. Stable operating voltage and current,
5. 5 years long operating time
6. The battery can be stock for long time and low self-discharge
rate (less than 2% per year at 20°C).
Main Applications :
1. Various Utility meter including of water, electricity, gas
meter,AMR
2. Alarm or security equipment (Burgla alarm smoke alarm system
detector)
3. GPS tracking system
4. Teal time clock
5. Digital control machine
6. Military
7. Remote monitoring systems
8. Car electronics
9. Camera
Similar Model for Primary Lithium Battery 3.0V
| Model | Nominal
Voltage
(V) | Nominal
Capacity
(mAh) | Standard
Discharge
current(mA) | End
Voltage
(V) | Max.
Diameter
(mm) | Max.
Height
(mm) | Reference
Weight
(g) | TestTemperature
(°C) |
| CR14250 | 3v | 650.0 | 10 | 2 | 14.5 | 25.0 | 10 | 23±3 |
| CR14335 | 3v | 800.0 | 10 | 2 | 14.5 | 33.5 | | 23±3 |
| CR14505 | 3v | 1400.0 | 10 | 2 | 14.5 | 50.5 | 17 | 23±3 |
| CR17335 | 3v | 1300.0 | 10 | 2 | 17.0 | 33.5 | 16 | 23±3 |
| CR17450 | 3v | 2000.0 | 10 | 2 | 17.0 | 45.0 | 25 | 23±3 |
| CR17505 | 3v | 2300.0 | 10 | 2 | 17.0 | 50.5 | 28 | 23±3 |
| CR17345 (CR123A) | 3v | 1400.0 | 10 | 2 | 17.0 | 34.5 | 16 | 23±3 |
| CR11108 (CR1/3N) | 3v | 160.0 | 1 | 2 | 11.6 | 10.8 | 3.3 | 23±3 |
| CR15H270 (CR2) | 3v | 850.0 | 10 | 2 | 15.6 | 27.0 | 11 | 23±3 |
| CR-P2 | 6v | 1400.0 | 10 | 4 | 34.8X35.8X19.5 | 34 | 23±3 |
| 2CR5 | 6v | 1400.0 | 10 | 4 | 34X45X17 | 34 | 23±3 |
| CR-V3 | 6v | 3000.0 | 20 | 2 | 29X14.5X52 | 34 | 23±3 |
Period of Warranty
Because batteries utilize a chemical reaction, battery performance
will deteriorate over time even if stored for a long period of time
without being used. In addition, if the various usage conditions
such as discharge, ambient temperature, are not maintained within
the specified ranges the life expectancy of the battery may be
shortened or the device in which the battery is used may be damaged
by electrolyte leakage. Please change the battery in time.
