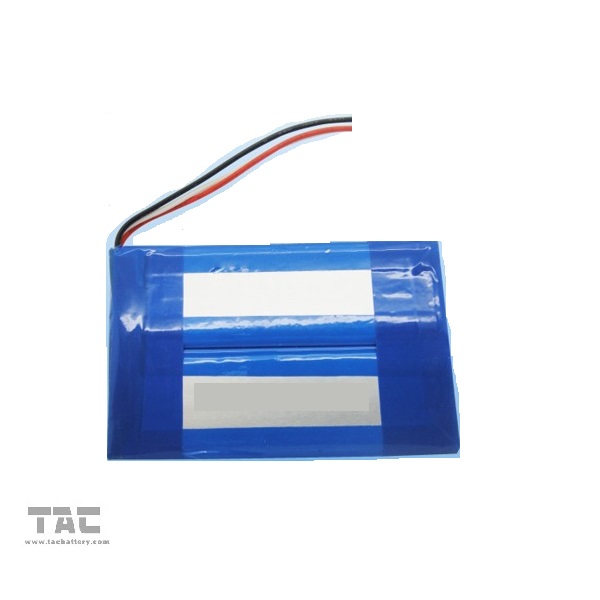

    Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power

    Ask Lasest Price
    Brand Name : TAC OEM ODM
    Model Number : LiFePO4 cells
    Certification : MSDS REACH ROHS
    Price : usd 2.0 each pcs
    Payment Terms : T/T
    Supply Ability : 50000 pack for one week
    Delivery Time : 7 days for single cell 15-20 days for battery pack
    • Product Details
    • Company Profile

    Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power

    Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power


    Feature:

    1. The battery is soft pack ,and the material is LIFEPO4 belong rechargeable lithium-ion battery ,
    2. high capacity single cell ,Super Long circle life: 2000cycles,
    3. flexible prismatic type support OEM
    4. LiFePO4 Prismatic Battery Cell


    Specification for Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power

    Item

    Specification

    Remark

    Nominal Capacity

    20000mAh

    0.2C, CC(constant current)discharge to 2.0V cut

    off, at 23±3℃

    Nominal Voltage

    3.2V



    Standard Charging Current

    0.2C

    0~45℃0.2CCC(constant current)charged to

    3.6V,then CV(constant voltage 3.6V)charge till

    charge current ≤0.02C

    Max. Charging Current

    1.0C



    Charge Ending Voltage

    3.65V



    Standard Discharging Current

    0.2C

    0.2CCC(continue current)discharged to 2.0V

    Max. Continual Discharging
    Current

    2.0C



    Discharge Ending Voltage

    2.0V



    Standard Charging Time

    5~6h



    Rapid Charging Time

    1~2h



    Production Impedance

    ≤80mΩ

    AC Impedance 1KHz

    Battery Weight

    ≤ 235g

    No include box

    SizeT*W*L7*160*220MM

    Application for cell

    1. solar power system
    2. EV E-CAR,
    3. portable energy storage system
    4. Solar Electric Car

    Package For Cell

    The battery package meet lithium-ion battery transport rule as below

    Lithium batteries should be loaded on pallets to avoid strong vibration during handling. The vertical and horizontal sides of pallets should be protected by angle guards.

    Batteries must pass UN38.3 test requirements and drop packaging test of 1.2 meters.


    Delivery

    1. standard model : 7-10 days after the order confirmed
    2. OEM model; 25-30 days after the order confirmed
    3. There is over 200 model for different size and capacity , and we support OEM ODM for LIFEPO4 Soft pack battery

    Certification

    We can support UN38.3 UL REACH ROHS and other specially certification

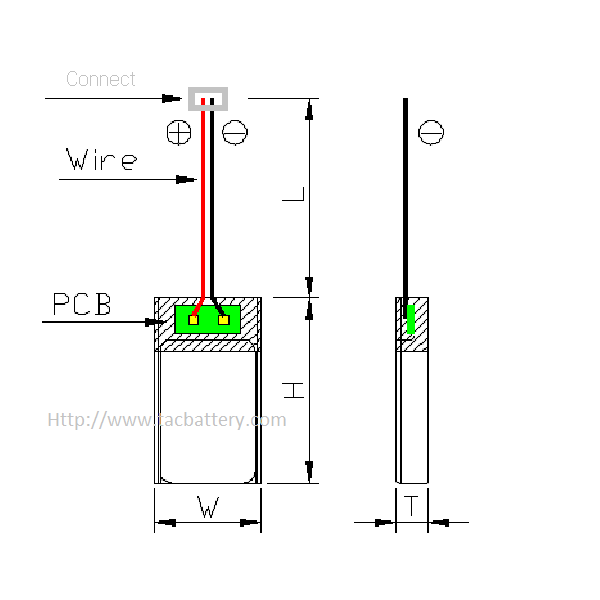

    Drawing For Soft Pack

    W: 160MM

    H: 220MM

    T: 70.5MM

    L: 50MM ( With customer's requrie )


    PCB Performance including below item


    Symbol


    Name


    VDET1

    Over-Charge detect voltage


    TVDET1

    Output delay of Over-Charge


    VDET2

    Over-discharge detect voltage


    TVDET2

    Output delay of Over-discharge


    IEC

    Excess Current threshold


    TVDET3

    Output delay of Excess Current


    IDD

    Supply current


    ISTANDBY

    Standby current



    Similar Production Picture

    Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power

    Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power


    And we can product various battery pack via cylindrical and prismatic cell with customer's require
