12V 24V LiFePO4 Battery Pack 18650 3.0AH For Tracking System With UL1642

    Buy cheap 12V 24V LiFePO4 Battery Pack 18650 3.0AH For Tracking System With UL1642 from wholesalers

    Buy cheap 12V 24V LiFePO4 Battery Pack 18650 3.0AH For Tracking System With UL1642 from wholesalers
    • Buy cheap 12V 24V LiFePO4 Battery Pack 18650 3.0AH For Tracking System With UL1642 from wholesalers
    • Buy cheap 12V 24V LiFePO4 Battery Pack 18650 3.0AH For Tracking System With UL1642 from wholesalers
    • Buy cheap 12V 24V LiFePO4 Battery Pack 18650 3.0AH For Tracking System With UL1642 from wholesalers

    12V 24V LiFePO4 Battery Pack 18650 3.0AH For Tracking System With UL1642

    Ask Lasest Price
    Brand Name : TAC OEM ODM
    Model Number : 24V 3.0Ah
    Certification : MSDS REACH ROHS
    Price : usd40 each set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100000UNITS PER MONTH
    Delivery Time : 7-25 days after order confirm
    • Product Details
    • Company Profile

    12V 24V LiFePO4 Battery Pack 18650 3.0AH For Tracking System With UL1642

    24V Lifepo4 Battery Pack 18650 3.0AH For Tracking System Can work 5-10 year

    Specifications for 24V Lifepo4 Battery Pack 18650 3.0AH For Tracking System Can work 5-10 year



    No.



    Item



    General Parameter


    Remark

    1

    Combination method

    8S2P


    2

    Rated Capacity

    3.0 Ah

    Standard discharge after Standard charge(package)

    3

    Nominal Voltage


    25.6V

    Mean Operation Voltage

    5

    Discharge cut-off voltage


    20.0V


    6

    Charging cut-off voltage

    29.2V


    7

    Cell and assembly method


    IFR18650EC-1.5AH

    8S2P

    8

    Maximum Charge Current


    3.0A


    9

    Maximum Discharge Current


    3.0A


    10

    Operation Temperature Range


    Charge: 0~45℃

    60±25%R.H.


    Discharge: -10~50℃

    11

    Storage Temperature Range


    Less than 1 year : 0~25℃


    60±25%R.H.

    at the shipment state


    Less than 3 months:-5~35℃

    8

    Packing material


    PVC shrink


    9

    Weight

    400g


    10

    Pack Dimension


    High/:69mm

    max size

    Width/:40mm

    Length/:150mm


    Application for the battery pack

    This lifepo4 battery pack can used for portable tracking system, and super long life,the battery can work over 5-10 years suitable below item Operating Temperature: -20ºc +60ºc (discharge) 0º +60ºc (charge)

    1. Working voltage (16v-29,2v)
    2. Nominal capacity 3Ah
    3. Max. Discharge/Charge current: 6,4A
    4. complete with its BMS

    Drawing for battery pack

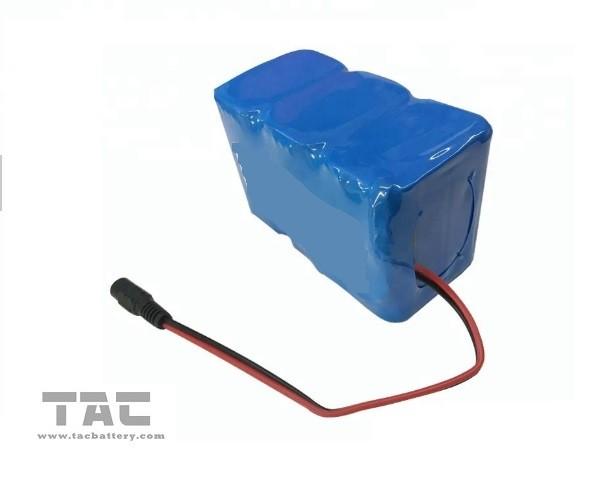

    Battery Picture

    Battery Pack with or without housing base on customer's require


    Package for LIFEPO4 battery pack

    the battery put in one sponge bag , 3-4 bag in each box , and 8 -10 box in each carton


    Lead Time


    The battery can be ready within 15 days after you confirm the order and arrange the payment with the PI

    if you need customized , the delivery date is 25-30 days

    F&Q

    Q1:Why choose Tac Battery?

    1.Quick response to clients' enquiry within 24hrs via Email skype FB Linkedin

    2.Strong R&D capability, all kinds of latest products available cover lithium-ion polymer lifepo4 battery cell and pack including of the BMS

    3.More than 10 years experience in producing battery products for various application.

    4.promised the high quality and long-term cooperation to reach win-win relationship

    Q2:Are you a Factory or trading company?

    We are manufacturer , we have 4 factory which is located in guangzhou //zhuhai // shenzhen// henan

    Q3: When will the products be delivered if the order has been placed?

    We promise we delivery our battery in 7 days for the single cell and it will take 28 days for the customised itmes .

    Q4: What is your quality control process?

    We are certified with ISO-140001, and strictly follow the ISO procedures.We do 100% testing for any of batteries before the order has been delivered.

    Q5: What Certificates do you have?

    Our batteries have been tested by REACH UN38.3 UL BIS Standards for single cell

    And we support to arrange specially certification with your require


    Similar Production photos


    If you need seeking for battery pack with housing or outer shell , pls check below
