Lithium Battery Pack , Electric Bike Battery Pack 36V 10Ah Lifepo4 Deep Circle DongChe

    Buy cheap Lithium Battery Pack , Electric Bike Battery Pack 36V 10Ah Lifepo4 Deep Circle DongChe from wholesalers

    Buy cheap Lithium Battery Pack , Electric Bike Battery Pack 36V 10Ah Lifepo4 Deep Circle DongChe from wholesalers
    • Buy cheap Lithium Battery Pack , Electric Bike Battery Pack 36V 10Ah Lifepo4 Deep Circle DongChe from wholesalers
    • Buy cheap Lithium Battery Pack , Electric Bike Battery Pack 36V 10Ah Lifepo4 Deep Circle DongChe from wholesalers

    Lithium Battery Pack , Electric Bike Battery Pack 36V 10Ah Lifepo4 Deep Circle DongChe

    Ask Lasest Price
    Brand Name : TAC
    Model Number : 36V 10Ah
    Certification : UL,ROHS
    Price : usd 194
    Payment Terms : TT, LC, Paypal, etc
    Supply Ability : 100Piece/days
    Delivery Time : 14Days
    • Product Details
    • Company Profile

    Lithium Battery Pack , Electric Bike Battery Pack 36V 10Ah Lifepo4 Deep Circle DongChe


    Electric Bike Battery Pack 36V 10Ah Lifepo4 Deep Circle DongChe


    No.ItemGeneral ParameterRemark
    1Rated Capacity10AhStandard discharge(0.2C5)after standard charge(0.2C5)
    2Minimal Capacity9.5Ah
    3Nominal Voltage36.0V
    4Cycle LifeResidual capacity is more than 60% of the rated capacity

    Charge: CC@0.2C to 42.0V, then CV till current to 0.05 C5

    Rest: 30min.

    Discharge: 0.2 C5 to 30.0V

    Temperature:20±5℃

    Carry out 500 cycles

    5Discharge cut-off voltage30.0V30.0V (recommended)
    6Charging cut-off voltage42.0V42.0V (recommended)
    7Assembly methodINR18650EC-2.2AH10S4P
    8Housing materialAluminium alloy &ABS+PC
    9Standard charge0.2 C5 constant current (CC) charge to 42.0V,then constant voltage (CC)42.0V charge till charge current decline to ≤0.05 C5Charge time : Approx 7.0h

    The charge and discharger performance

    Standard discharge

    Constant current 0.2 C5

    Cut-off voltage 30.0V

    Maximum Charge Current4.5A2A recommended for better performance and life
    Continuous Discharge Current7.0AOver current 50±10A (5ms~20ms)
    Operation Temperature RangeCharge: 0~55℃

    60±25%R.H.


    Discharge: -10~60℃
    Storage Temperature RangeLess than 1 year : 0~25℃

    60±25%R.H.

    at the shipment state

    Less than 3 months:-5~35℃
    Approx. WeightApprox 3.5Kg
    DimensionHeight: Approx 420.0mm
    Diameter: Approx 11.0 mm
    Short Circuit ProtectionWill recover after recharge

    Application

    This is specially model for E- bike, the battery pack with shell and lock to prove the safe


    Delivery date

    15days for current model after the customer confirm the order

    25-35 days for OEM model after the customer arrange the payment


    Package

    each battery pack put into thick foam box , and then put into 7 level extro- thick export carton

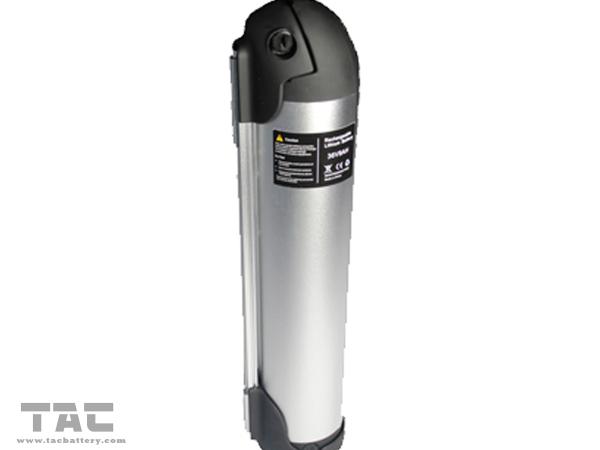

    Picture Show Figure:
