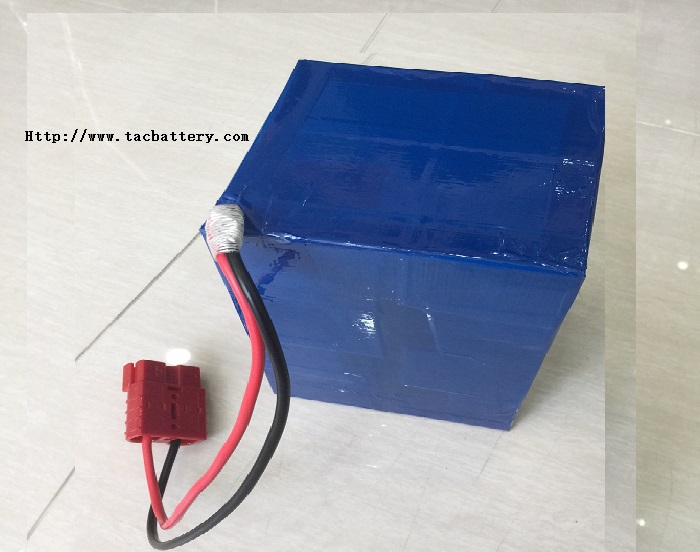

12V LiFePO4 Deep Circle Battery Pack 10ah For Solar Energy Storage System

Product Categories

Guang Zhou Sunland New Energy Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Add to Cart

No.	Item	General Parameter	Remark
1	Rated Capacity	10.0Ah	Standard discharge(0.2 C₅)after standard charge(0.2 C₅)
2	Minimal Rated Capacity	9.8Ah	Standard discharge(0.2 C₅)after standard charge(0.2 C₅)
3	Nominal Voltage	34.8V
4	Cycle Life	Higher than 60% of the Initial Capacity of the Cells	◆Charge: CC@0.2C to 29.2V, then CV till current to 0.05C ◆Rest: 30min. ◆Discharge: 0.2C to 20.0V ◆Temperature:20±5℃ ◆Carry out 2000cycles
5	Discharge cut-off voltage	36.0V	20.0V( recommended)
6	Charging cut-off voltage	43.8V	29.2V (recommended)
7	Cell and assembly method	IFR09102165EC-10AH	12S1P
8	Housing material	Blue PVC

9	Standard charge	0.2C constant current(CC) charge to 29.2V,then constant voltage (CV)29.2V charge till charge current decline to ≤0.05C	Charge time : Approx 7h
10	Standard discharge	Constant current 0.2C Cut-off voltage 20.0V
11	Maximum Charge Current	5A
12	Continuous Discharge Current	10A
13	Operation Temperature Range	Charge: 5~45℃	60±25%R.H.
13	Operation Temperature Range	Discharge: -10~60℃	60±25%R.H.
14	Storage Temperature Range	Less than 1 year : 0~25℃	60±25%R.H. at the shipment state
14	Storage Temperature Range	Less than 3 months:-5~35℃	60±25%R.H. at the shipment state
15	Weight	Approx: 5.5Kg
16	Max.Dimension	High:115±2 mm
		Width: 120±2mm
		Length: 200±2mm

we protect the battery pack by extra - sponge, and then put into stronge paper carton

1 whole set / each carton

1) Standard module , 15-20 Days when you confirm the order and arrange the payment

2)OEM module :25-35 days when we confirm all detail information
