Rechargeable 123A Batteries Lifepo4 3.0V Instead Of Panasonic CR123A


Features For Rechargeable 123A Batteries Lifepo4 3.0V Instead Of Panasonic CR123A

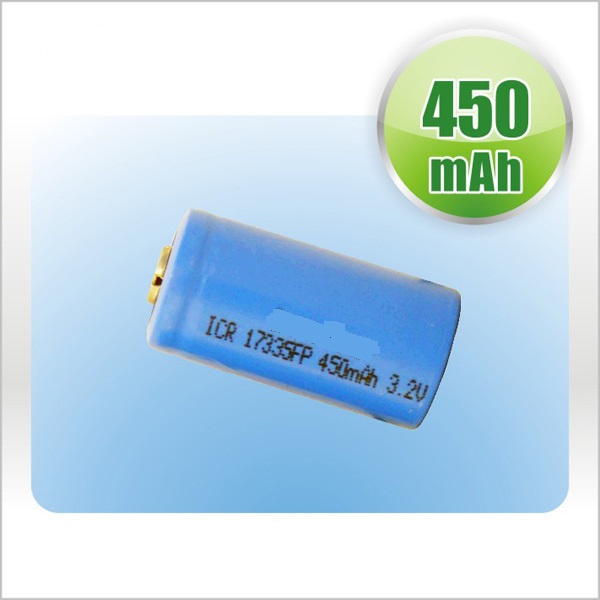

1. Model name:IFR17335 450mAh 1.35Wh or IFR16340 450MAH 1.35WH

2. International normal name: Rechargeable RCR123A

3. long circle life: 2000times

4. The battery is rechargeable battery , and the voltage is 3.2v same as the primary CR123A and can instead of it .

Application FOR Rechargeable 123A Batteries Lifepo4 3.0V Instead Of Panasonic CR123A

1. flash light and digital camare

2. Portable high power devices

3. Stationary battery backup systems

4. Grid stabilization energy storage systems

5. Commercial truck and bus hybrid electric vehicles (HEVs)

Battery Specification List

Rechargeable 123A Batteries Lifepo4 3.0V Instead Of Panasonic CR123A

Charge And Discharge Performance

10	Maximum charge current	1C	450mA	For continuous charging mod
11	Maximum discharge current	2C	900mA	For continuous discharge mod(Discharge capacity for more than 80% of the nominal capacity)
12	Operation Temperature and relative humidity Range	Charge	0~45℃ 60±25%R.H.	Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery
		Discharge	-20~60℃ 60±25%R.H.
13	Storage temperature for a long time	-20~25℃ 60±25%R.H.		Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months.

Packing Photo

50pcs / inner box , 8 box / carton

Pictures For Rechargeable 123A Batteries Lifepo4 3.0V Instead Of Panasonic CR123A

The Similar Model For Lithium-ion Cylindrical Battery

MODEL	CAPACITY	VOLTAGE
IFR10120	35	3.2V
IFR10440	200	3.2V
IFR14430	300	3.2V
IFR14430	400	3.2V
IFR14430	450	3.2V
IFR14430 FLAT	450	3.2V
IFR14430	500	3.2V
IFR14505	250	3.2V
IFR14505	300	3.2V
IFR14505	400	3.2V
IFR14500 FLAT	600	3.2V
IFR14505	600	3.2V
IFR15270	200	3.2V
IFR17335	450	3.2V
IFR18500	600	3.2V
IFR18500	800	3.2V
IFR18500	1000	3.2V
IFR18650	1000	3.2V
IFR18650P	1100	3.2V
IFR18650	1200	3.2V
IFR18650	1500	3.2V
IFR26650	3000	3.2V
IFR26650	3300	3.2V

The Certfication for Lifepo4 Battery

Production Line for Lifepo4 Battery

Guangzhou Sunland New Energy Technology Co., Ltd. (Sunland Power) is a senior professional service provider of battery application. Aiming at serving industrial users, it is dedicated to providing industrial users with optimized battery supporting solutions and safe, environmental friendly and cost-effective battery products.
It has a R & D, engineering and management team with more than 10 years of industry experience
From upstream to downstream, the battery industry has the advantage of vertical integration
Specializing in batteries, battery packs, battery management systems and energy solutions
The products are widely used in medical devices, coal mine security, electronic appliances, power supply and standby energy storage system. For example, the power supply system of electric bicycle; Solar energy storage power supply system, UPS backup power supply system. At the same time, it is also an ideal choice for vehicle starting power supply, military painting and other fields.
We provide professional design and customization services according to the special needs of customers.
